4. Use the and buttons to move
the cursor to “Phys Conn:” then press
the button.
5. Choose the physical connector using
the and buttons (“Port 1” or
“Port 2”) then press the button.
IP
1. Use the and buttons to move
the cursor to “IP:” then press the
button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
IP, then press the button to save
the selection.
Note: A Unicast or Multicast IP address may be chosen.
Unicast: X.X.X.X – 223.255.255.255
Multicast: 224.0.0.0 – 239.255.255.255
Suggested Multicast Range: 239.192.X.X
Destination Port
1. Use the and buttons to move
the cursor to “Dest Port:” then press
the button.
2. Use the and buttons to
select the column to edit and use the
and buttons to change the
port (0 – 65536), then press the
button to save the selection.
Forward Error Correction
This setting lets the decoder know if it should be expecting FEC data with the
active receive group. If no FEC data is expected, this setting can be disabled to
allow multicasts closer together on the same IP.
1. Use the and buttons to move
the cursor to “FEC:” then press the
button.
2. Use the and buttons to
select “enable” or “disable”, then press
the button to save the selection.

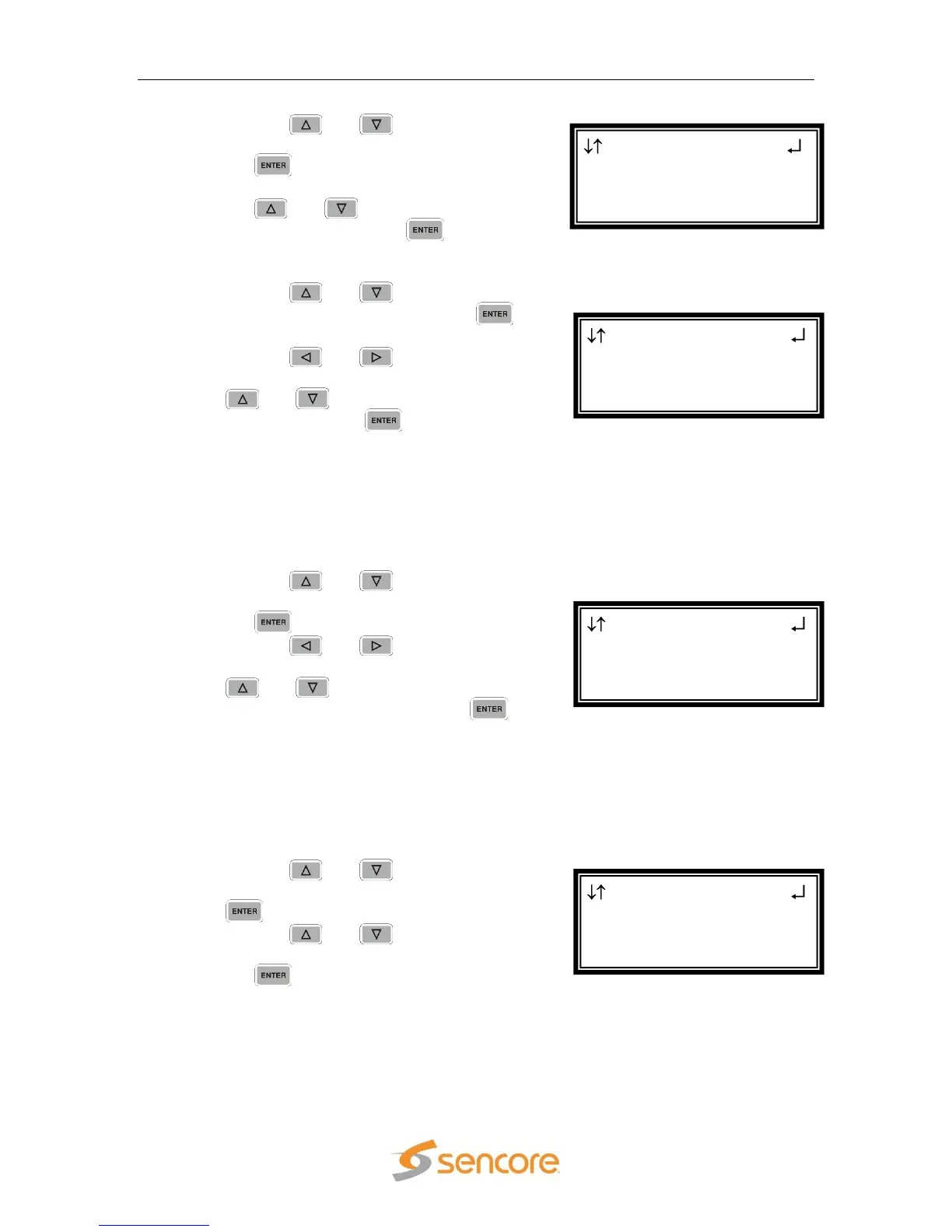

MPEG/IP 1-4 2
Ip:239.192.1.50
Dest Port:01050
►FEC:Disable
MPEG/IP 1-4 2 ←→
Ip:239.192.1.50
►Dest Port:01050
FEC:Disable
MPEG/IP 1-4 2 ←→
►Ip:239.192.001.050
Dest Port:01050
FEC:Disable
MPEG/IP 1-4 2
Receive:Enable
►Phys Conn:Port 1
Ip:239.192.0.1
