MRD 3187B - User Manual
Page 138 (245)

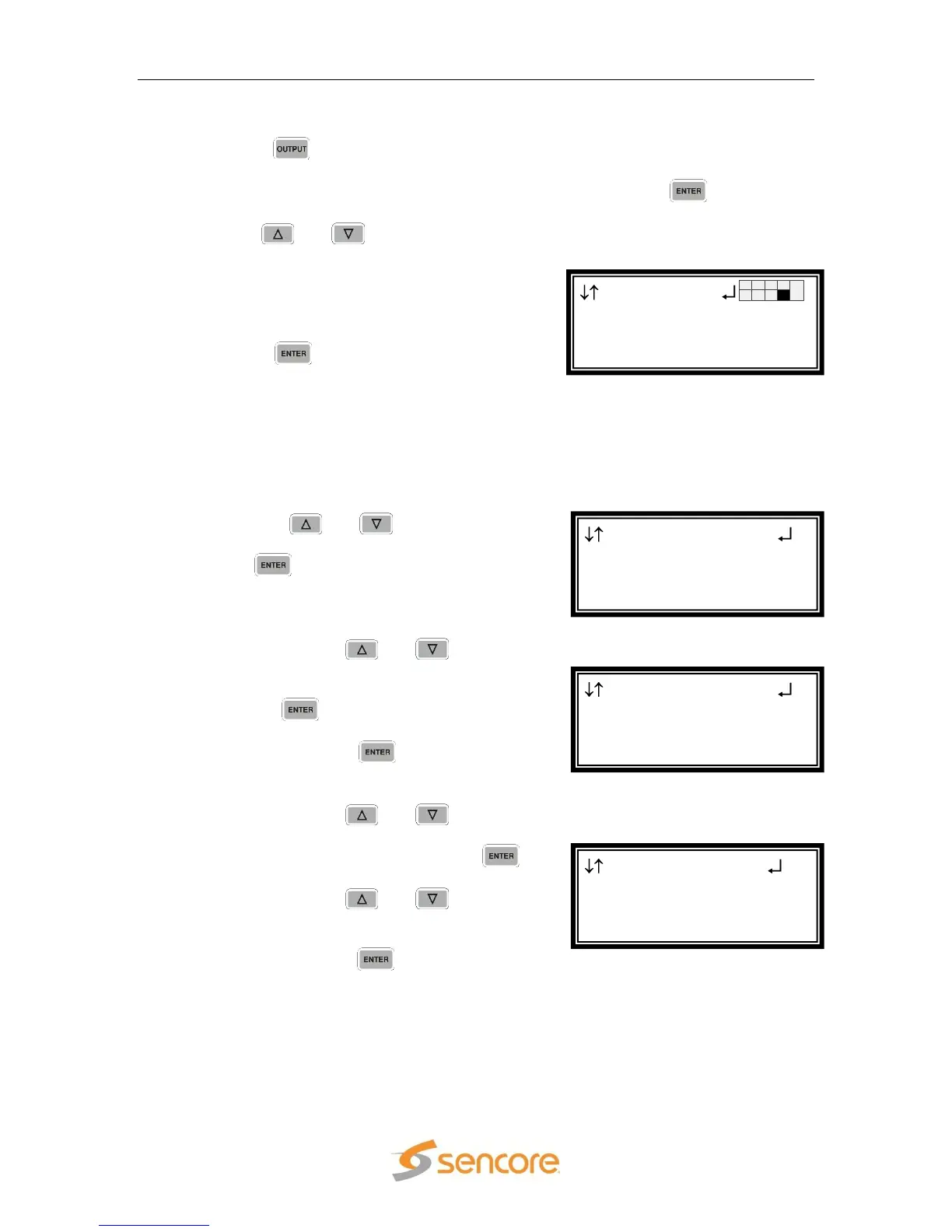

Output Control
1. Press the button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press .
2. Use the and buttons to move the
cursor to the “PID Filter IP” card of the
specific slot (e.g. 1-4). Notice the location
diagram in the upper right corner of the
screen changes as the cursor moves by
each card.
3. Press the button once to display the
selection screen for “Transmit 1”,
“Transmit 2”, “Transmit 3”, Transmit 4”,
and “Transmit 5” of the PID Filter IP card.
Transmit 1
Note: Transmit 2-5 can be set up using the same instructions
1. Use the and buttons to move
the cursor to “Transmit 1”, then press
the button.
Transmit Status/Set
1. Use the and buttons
to move the cursor to “Transmit
Status/Set”, then press the
button. The status screen
is now displayed.
2. Press the button one
more time to get to the Edit
screen.
3. Use the and buttons
to move the cursor to
“Transmit:” then press the
button.
4. Use the and buttons
to set the Transmit to
“Enabled” or “Disabled”, then
press the button to save
the selection.
Transmit 1 Setup
►Transmit:Enabled
Filtering:Enabled
Processing:PSI(MPEG)
Transmit 1
►Transmit Status/Set
Service Filter Setup
PID Filter Setup
PID Filter IP 1-4
►Transmit 1
Transmit 2
Transmit 3
Output
HD Video 2-1
►PID Filter IP 1-4
