MRD 3187B - User Manual
Page 45 (245)

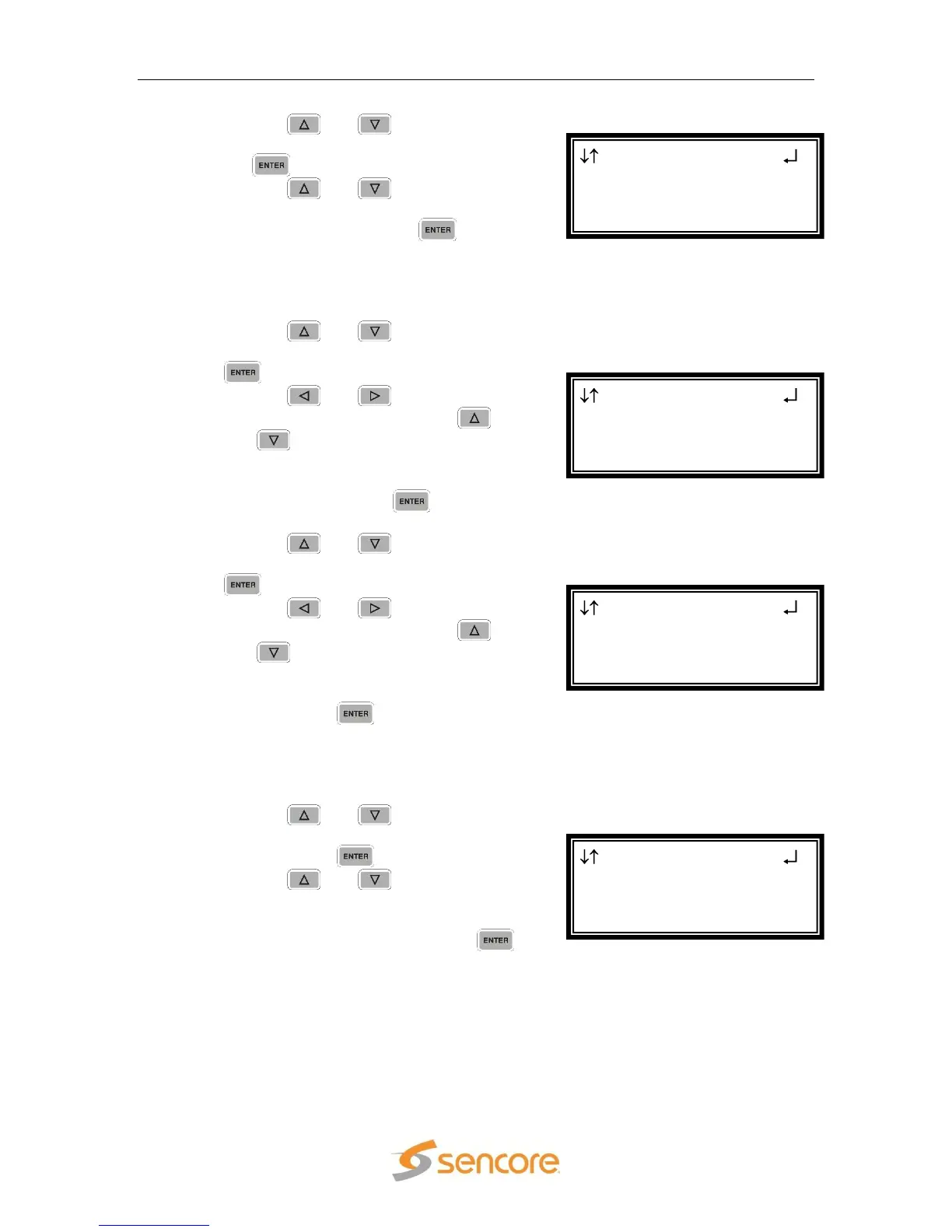

1. Use the and buttons to move
the cursor to “Auto AFD:” then press
the button.
2. Use the and buttons to select
the appropriate mode (Enabled or
Disabled), then press the button
to save the selection.
Video Shift
Video Shift provides a horizontal and vertical shift of the video output.
1. Use the and buttons to move
the cursor to “H-shift:” then press the
button.
2. Use the
and
buttons to select
the column to edit and use the
and
buttons to change the
horizontal step (-50 – +50 steps, where
the minus direction moves the video
down), then press the
button to
save the selection.
3. Use the and buttons to move
the cursor to “V-shift:” then press the
button.
4. Use the
and
buttons to select
the column to edit and use the
and
buttons to change the vertical
step (-50 – +50 steps, where the minus
direction moves the video to the left),
then press the
button to save the
selection.
SDI Video Loss Mode Setting
This setting determines what is output by the decoder when input is lost.
1. Use the and buttons to move
the cursor to “SDI Vid Loss Mode:”
then press the button.
2. Use the and buttons to select
the desired video output when the
input is lost (“Display Raster” or
“Disable Output”), then press the
button to save the selection.
HD Video 2-1
V-Shift:+00 steps
►SDI Vid Loss Mode:
Display Raster
HD Video 2-1
Auto AFD:Disabled
H-Shift:+00 steps
►V-Shift:+00 steps
HD Video 2-1
Auto AFD:Disabled
►H-Shift:+00 steps
V-Shift:+00 steps
HD Video 2-1
Anlg Out:RGBHV
Disp Mode:Letterbox
►Auto AFD:Disabled
