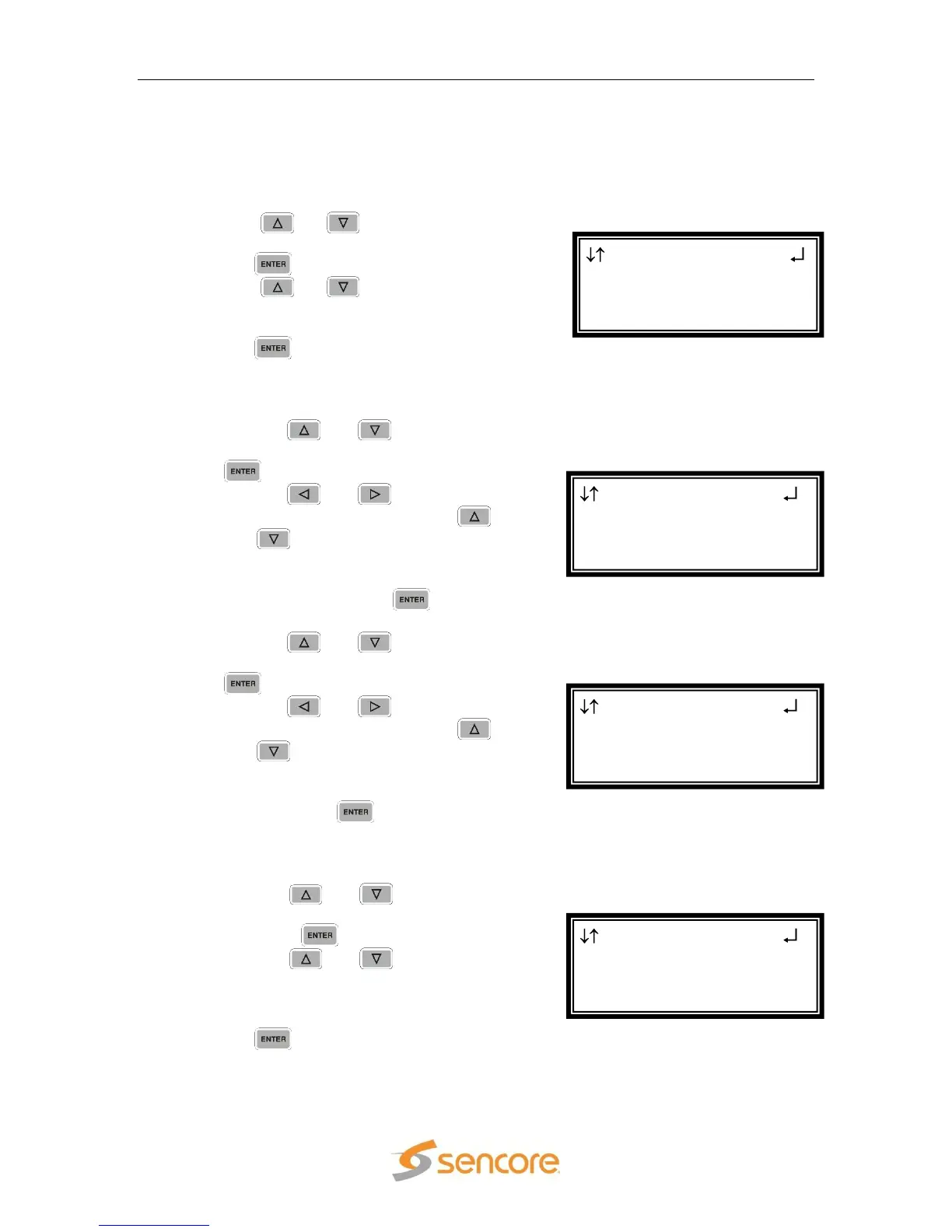

Auto AFD
AFD or Active Format Description, is a standard set of codes that if sent in the
MPEG transport stream is interpreted by the MRD 3187B into a certain aspect
ratio and active picture characteristics.
1. Use the and buttons to move
the cursor to “Auto AFD:” then press
the button.
2. Use the and buttons to
select the appropriate mode
(“Enabled” or “Disabled”), then press
the button to save the selection.
Video Shift
Video Shift provides a horizontal and vertical shift of the video output.
1. Use the and buttons to move
the cursor to “H-shift:” then press the
button.
2. Use the
and
buttons to select
the column to edit and use the
and
buttons to change the
horizontal step (-50 – +50 steps, where
the minus direction moves the video
down), then press the
button to
save the selection.
3. Use the and buttons to move
the cursor to “V-shift:” then press the
button.
4. Use the
and
buttons to select
the column to edit and use the
and
buttons to change the vertical
step (-50 – +50 steps, where the minus
direction moves the video to the left),
then press the
button to save the
selection.
Raster Color
1. Use the and buttons to move
the cursor to “Raster Color:” then
press the button.
2. Use the and buttons to
select the desired raster color (“Black”,
“White”, “Yellow”, “Cyan”, “Green”,
“Magenta”, “Red”, “Blue”), then press
the button to save the selection.
Anlg Video 1-1
NTSC offset: Enabled
Disp Mode: Letterbox
►Raster Color: Black
Anlg Video 1-1
Auto AFD:Disabled
H-Shift:+00 steps
►V-Shift:+00 steps
Anlg Video 1-1
Auto AFD:Disabled
►H-Shift:+00 steps
V-Shift:+00 steps
Anlg Video 1-1
Disp Mode:Letterbox
►Auto AFD:Disabled
H-Shift:+00 steps
