MRD 3187B - User Manual
Page 65 (245)

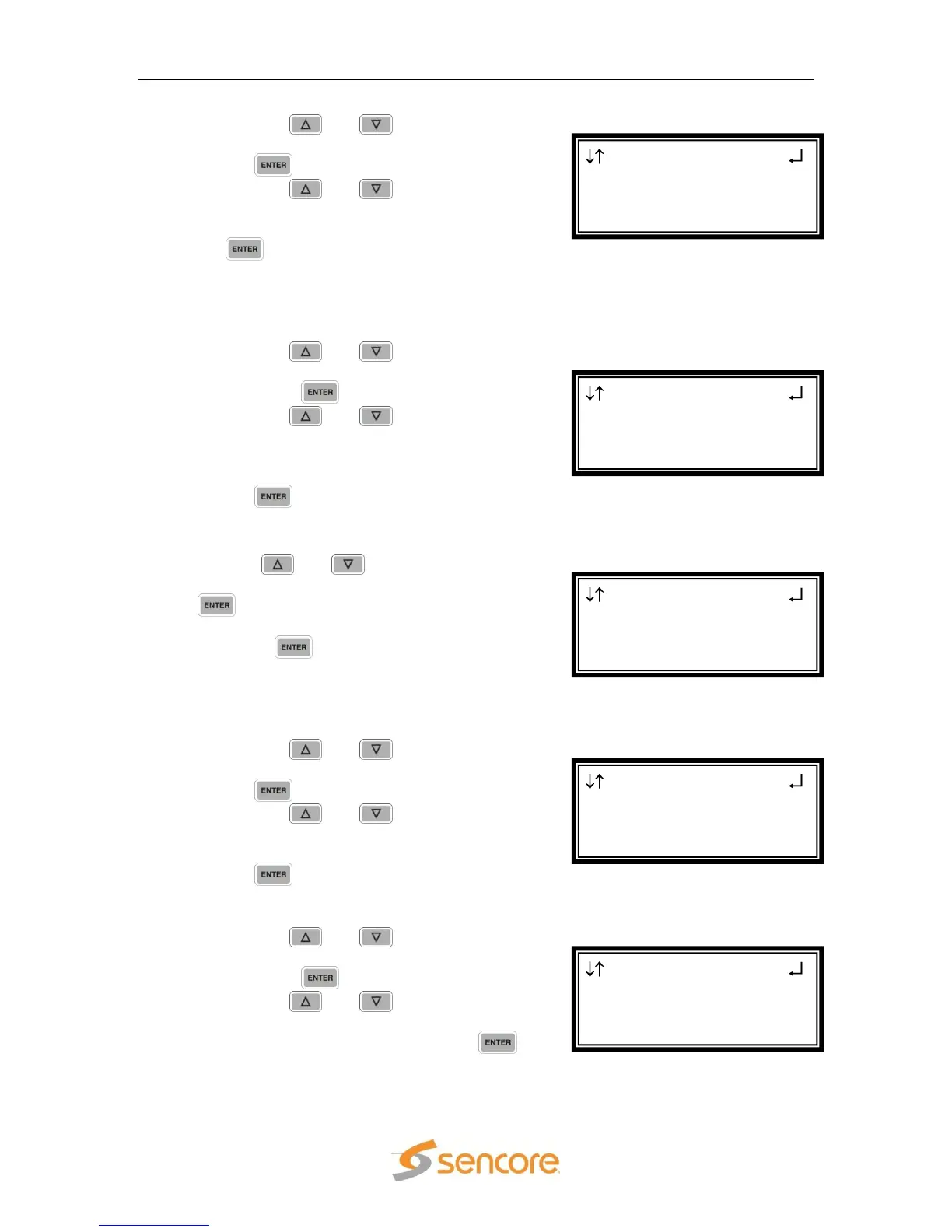

1. Use the and buttons to move
the cursor to “NTSC Ped:” then press
the button.
2. Use the and buttons to
change the “NTSC Ped:” to either
“Black 0” or “Black 7.5”, then press the
button to save the selection.
Raster Color
This setting determines the color of the raster that is output by the decoder when
input is lost.
1. Use the and buttons to move
the cursor to “Raster Color:” then
press the button.
2. Use the and buttons to
select the desired raster color (“Black”,
“White”, “Yellow”, “Cyan”, “Green”,
“Magenta”, “Red”, “Blue”), then press
the button to save the selection.
HD Settings
1. Use the and buttons to move the
cursor to “HD Settings”, then press the
button to display the Status screen
for the HD video output settings.
2. Press the button again to display the
Edit screen for the HD video output
settings.
Display Mode
1. Use the and buttons to move
the cursor to “Disp Mode:” then press
the button.
2. Use the and buttons to
select the desired output size
(“Pillarbars”, “Cropped”), then press
the button to save the selection.
Video Loss Mode
1. Use the and buttons to move
the cursor to “Video Loss Mode:” then
press the button.
2. Use the and buttons to
choose between (“Display Raster”,
“Disable Output”), then press the
button to save the selection.
HD Settings 2-1
Disp Mode:Pillarbars
►Video Loss Mode:
Display Raster
HD Settings 2-1
►Disp Mode:Pillarbars
Video Loss Mode:
Display Raster
SDI Anlg Vid 2-1
Video
►HD Settings
SD Settings
SDI Anlg Vid 2-1
Anlg Out:RGBHV
NTSC Ped:Disabled
►Raster Color:Black
SDI Anlg Vid 2-1
Analog
Anlg Out:RGBHV
► NTSC Ped:Black 0
