MRD 3187B - User Manual
Page 66 (245)

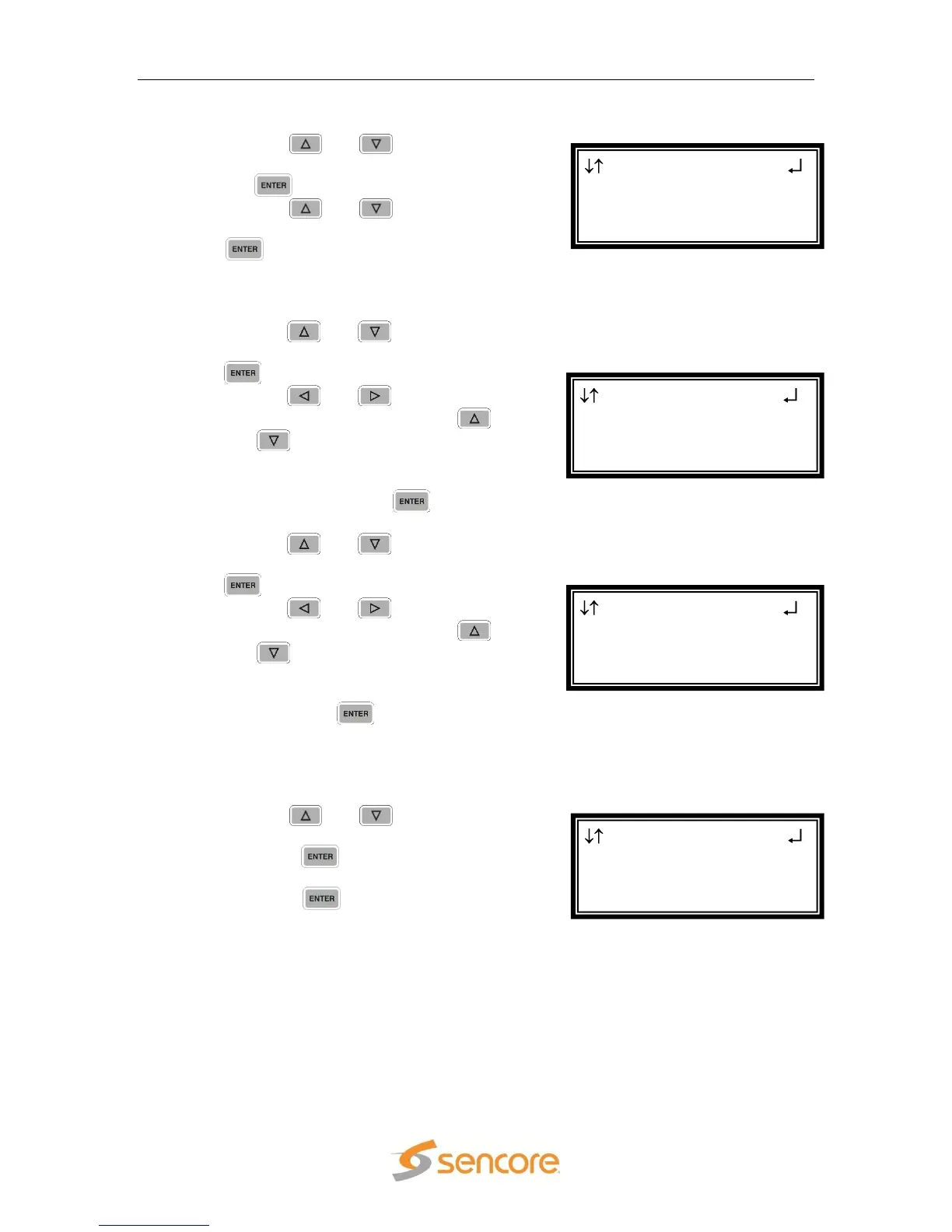

Auto AFD
1. Use the and buttons to move
the cursor to “Auto AFD:” then press
the button.
2. Use the and buttons to set
“Enabled” or “Disabled”, then press the
button to save the selection.
Video Shift
Video Shift provides a horizontal and vertical shift of the video output.
1. Use the and buttons to move
the cursor to “H-shift:” then press the
button.
2. Use the
and
buttons to select
the column to edit and use the
and
buttons to change the
horizontal step (-50 – +50 steps, where
the minus direction moves the video
down), then press the
button to
save the selection.
3. Use the and buttons to move
the cursor to “V-shift:” then press the
button.
4. Use the
and
buttons to select
the column to edit and use the
and
buttons to change the vertical
step (-50 – +50 steps, where the minus
direction moves the video to the left),
then press the
button to save the
selection.
SDI VANC Assignment
To edit the SDI VANC Assignment, use the following steps.
1. Use the and buttons to move
the cursor to “SDI VANC Assign” then
press the button to display the
status screen for the VANC.
2. Press the button once more to
enter the Edit screen.
HD Settings 2-1
H-Shift:+00 steps
V-Shift:+00 steps
►SDI VANC Assign
HD Settings 2-1
Auto AFD:Disabled
H-Shift:+00 steps
►V-Shift:+00 steps
HD Settings 2-1
Auto AFD:Disabled
►H-Shift:+00 steps
V-Shift:+00 steps
HD Settings 2-1
Video Loss Mode:
Display Raster
►Auto AFD:Disabled
