Safety and Standards
1. Introduction
1.1 CDHD2S Product Overview
CDHD2S is a high-performance servo drive based on innovative technology and advanced
control algorithms. CDHD2S is optimized based on the second generation of this series of servo
drives, and has made many improvements and enhancements in terms of functionality and
performance.
For CDHD2S drive options, please refer to the ordering information.
The CDHD2S drive using a medium voltage power supply (AC 120–240V) is the medium-
voltage model, and the drive using a high voltage power supply (AC 380–480V) is the high-voltage
model.

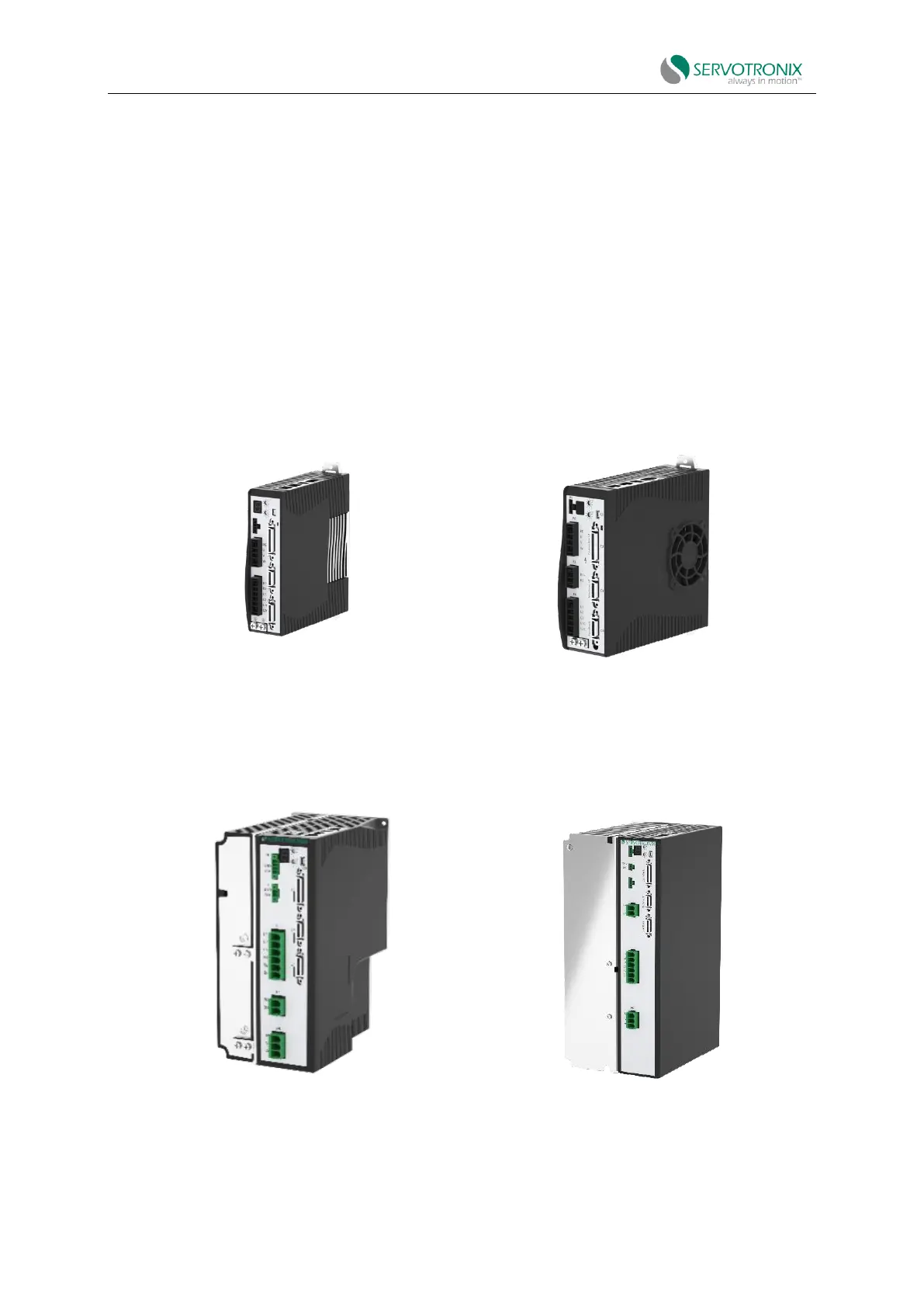

CDHD2S-1D5/CDHD2S-003 CDHD2S-4D5/CDHD2S-006
Figure 1-1 CDHD2S- AC 120-240V (medium-voltage) model
CDHD2S-012 CDHD2S-24/CDHD2S-030
Figure 1-1 CDHD2S-AC 380-480V (High Voltage) Model
