Troubleshooting
—261
—
Fault#
Number
Fault message
(Click the description for more information)
Emergency (fault)
Error code
FLT150
u16_VbusMeasureFilter exceeds 5
—
FLT151
Temp_Sensor_Failure_Qualifier exceeds 250
—
FLT152
Axis_To_Axis_Timeout_Max exceeds 1000
—
FLT153
FPGA_BG_Buffer_Consec exceeds 1000
—
FLT154
Gantry fieldbus disable failed
FFA7h
FLT155
Multi-turn secondary encoder battery voltage is low
739Ah
FLT156
Tamagawa second feedback Abs operation fault
7388h
FLT157
Serial communication timeout
—
FLT158
PLC has stopped or disconnected
1C34h
FLT159
Synchronous communication signal timeout
1C35h
FLT160
Fieldbus slave chip timeout
1C36h
10.4 Fieldbus status-LED
10.4.1 Status LED-CANopen
Interfaces C5 and C6 (AF models) share a LED light that indicates fieldbus status when
communicating on the CANopen network.

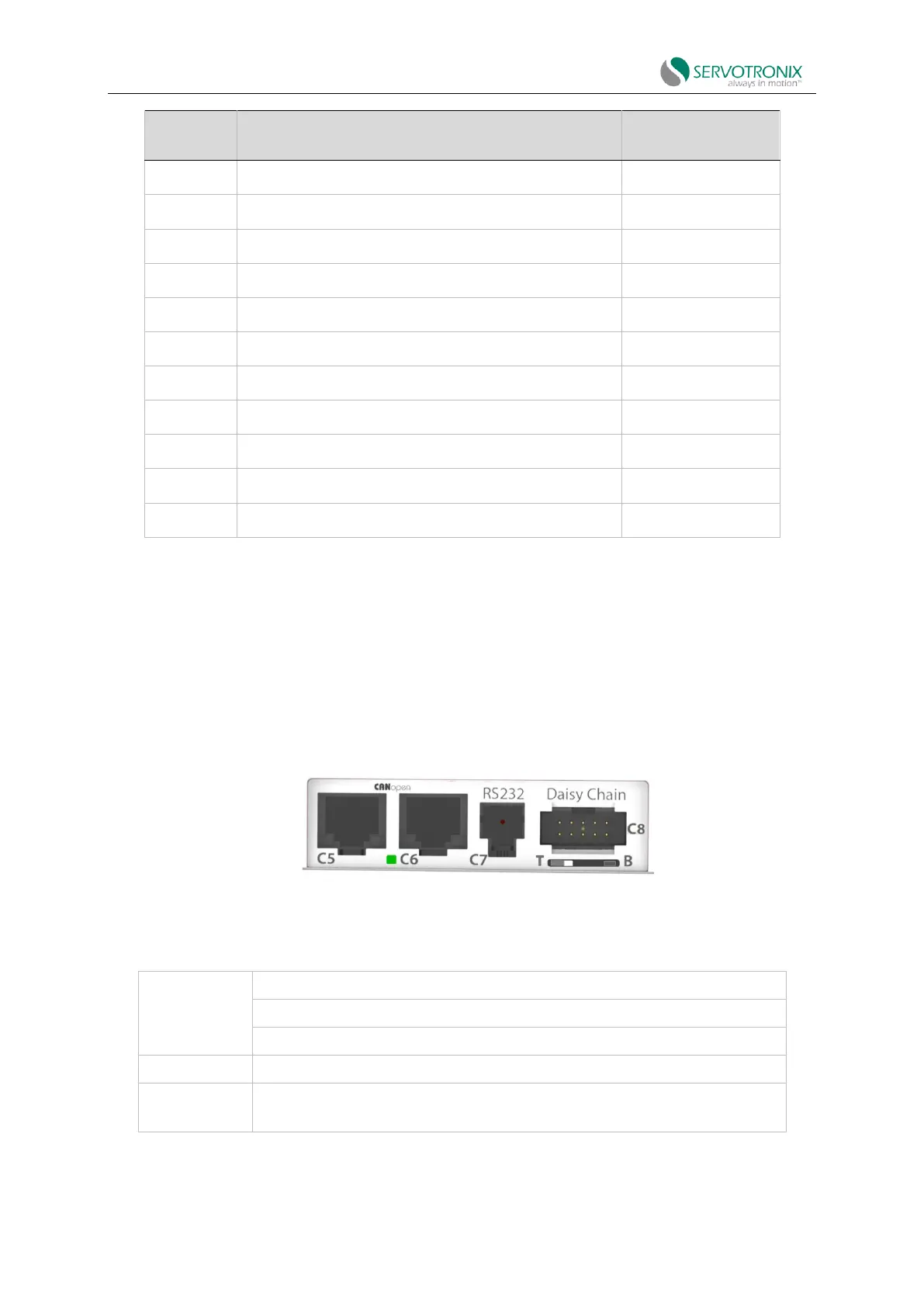

Figure 10-1 Top panel interface and LEDs on the model
Table 10-5
Green light
Normally on - working (OP) status
Fast flash - preparation (PREOP) status
Slow flash - stop status
Red light
Flashing - error
Off
The drive is not set to EtherCAT/CANopen command interface mode.
Please refer to VarComCOMMODE
