4.6.3 Shielding and connection

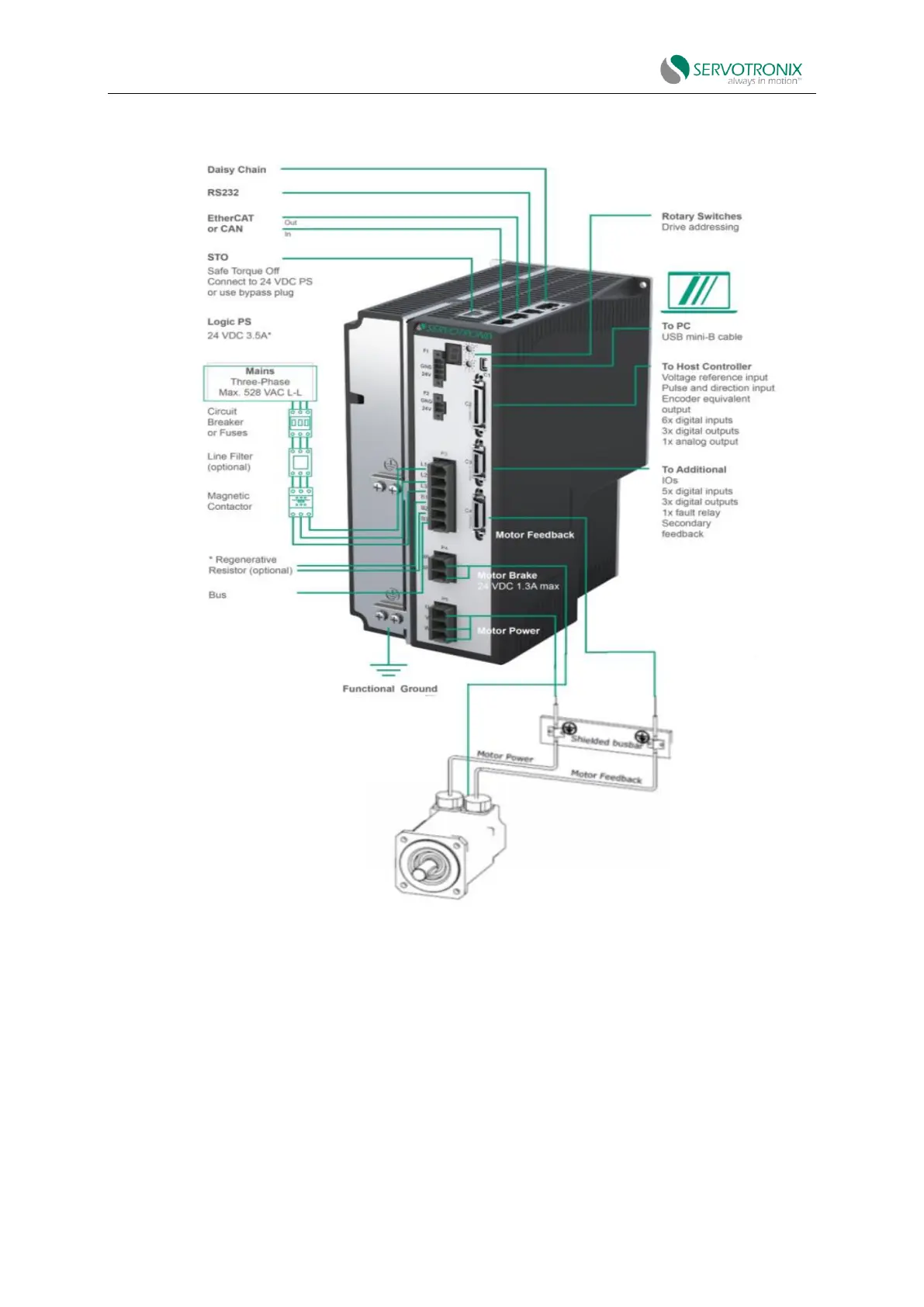

Figure 4-13
To minimize noise emissions and maximize drive system immunity, motor and feedback cables
must be shielded and properly connected to a ground surface.
The shield must be connected to ground at both ends of the cable. Its purpose is to reduce the
impedance between the cable shield and the rear panel.
It is recommended to connect all shielded cables to the rear panel
