Servotronix CDHD2S - CDHD2 S Product Label

Safety and Standards
Note: PN version only has 1.5A, 3A, 4.5A and 6A 220V MV models.

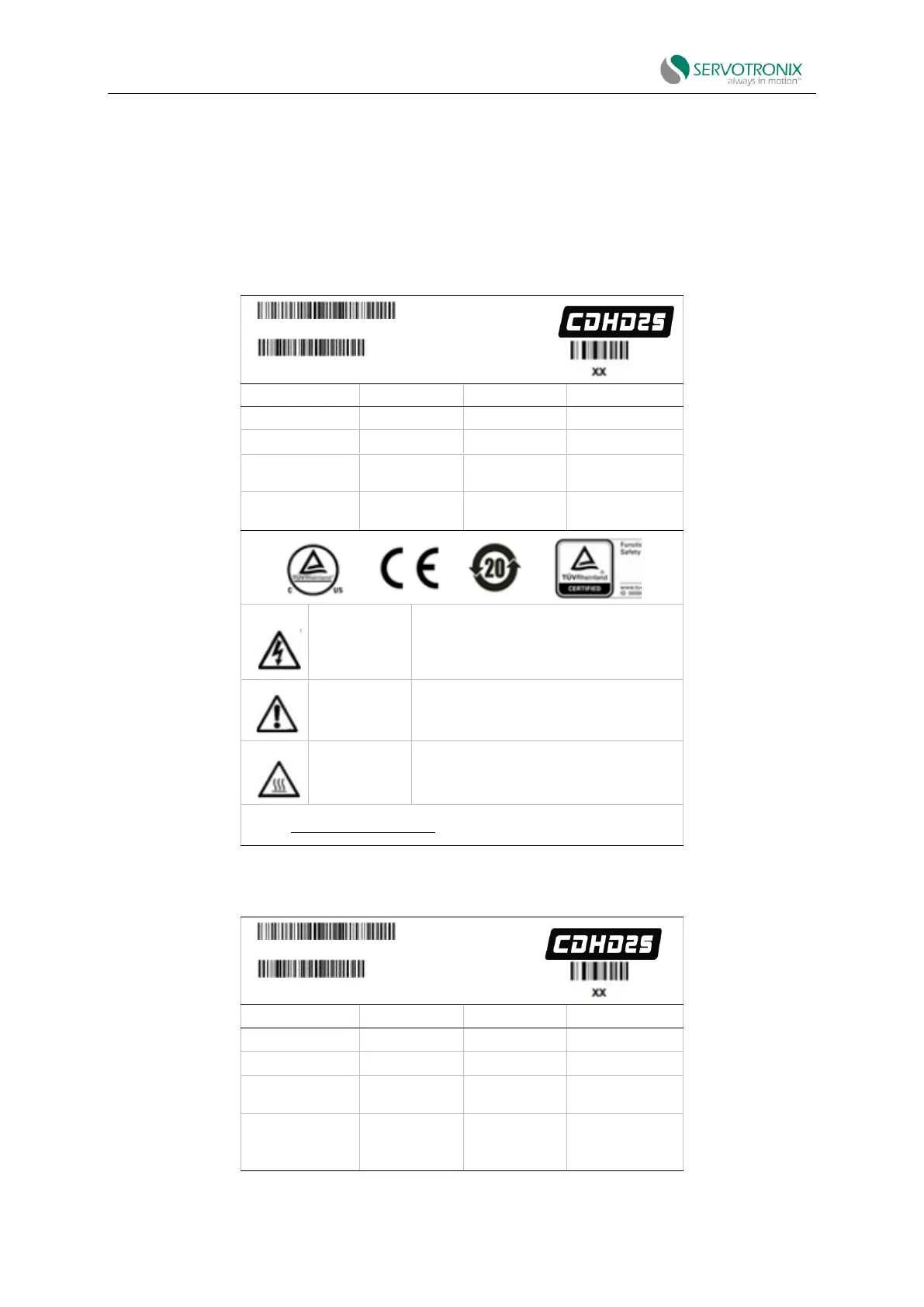

1.4 CDHD2S Product Label
Different models of products may look exactly the same. See the product label on the back
panel of the drive for model numbers and specifications. The following picture shows the EtherCAT
model label.
Model: CDHD2S-0244DEC2
Serial number: 118B-0000012
Version:
Rating
Input
Output
AC voltage
380/480 3PH
380/480 3PH
FW: 2.0.0
Frequency Hz
50/60
0-1000Hz
SCCR: 5000A
F.L. current 3PH
24A
24A
IP20 housing
protection
Power 380/480V
12.2/15.4kVA
Ambient
temperature: 45℃
Dangerous
voltage
Residual voltage. To avoid electric shock,
please wait 5 minutes after removing the
power supply before performing
maintenance.
Warning
Read the manual and follow the safety
instructions. Use proper PE grounding
techniques.
Hot surface
Do not touch the radiator. It may cause
burns.
www.servotronix.com Ref:PRD9HCD3MC2-00
Figure1-3 EtherCAT model label
The following picture shows the PROFINET model label.
Model：CDHD2S-0032APN2
Serial number: 118B-0000012
Version：
Rating
Input
Output
AC voltage
120/240 3PH
0~240 1PH
FW：2.0.0
Frequency Hz
50/60
0-1000Hz
SCCR：5000A
F.L. current 3PH
5A
3A
IP20 housing
protection
Power 120/240V
0.44/0.74kVA
Ambient
temperature：
45℃
