CDHD2S Accessories
—265
—
Table 11-8 USB to RS232 adapter cable
Item
Specification
Servotronix part number
USB to RS232 cable
CBLr000UT880-00
Shielding
85% copper braided wire shield
coverage
Maximum length
1.5m
Table 11-9 C8 - daisy chain loop
Item
Specification
Servotronix part number
Cable
--
Shielding
85% copper braided wire shield
coverage
Twisted pair cables
Required
Maximum length
0.5m
Wire gauge
24–28AWG
Table 11-10 C3＜＞C3 - gantry cable
Item
Specification
Servotronix part number
Gantry cable
0.5 meter cable
1 meter cable
2 meter cable
CBL-00C3GAN-005
CBL-00C3GAN-010
CBL-00C3GAN-020
Twisted pair cables
Required
Wire gauge
24–28AWG
11.3 D9-RJ45 adapter
Many PLC devices use a D9 type interface for CAN connections.
To connect the CDHD2SRJ45 port to the D9 interface, Servotronix provides an adapter, as
shown in the figure below.

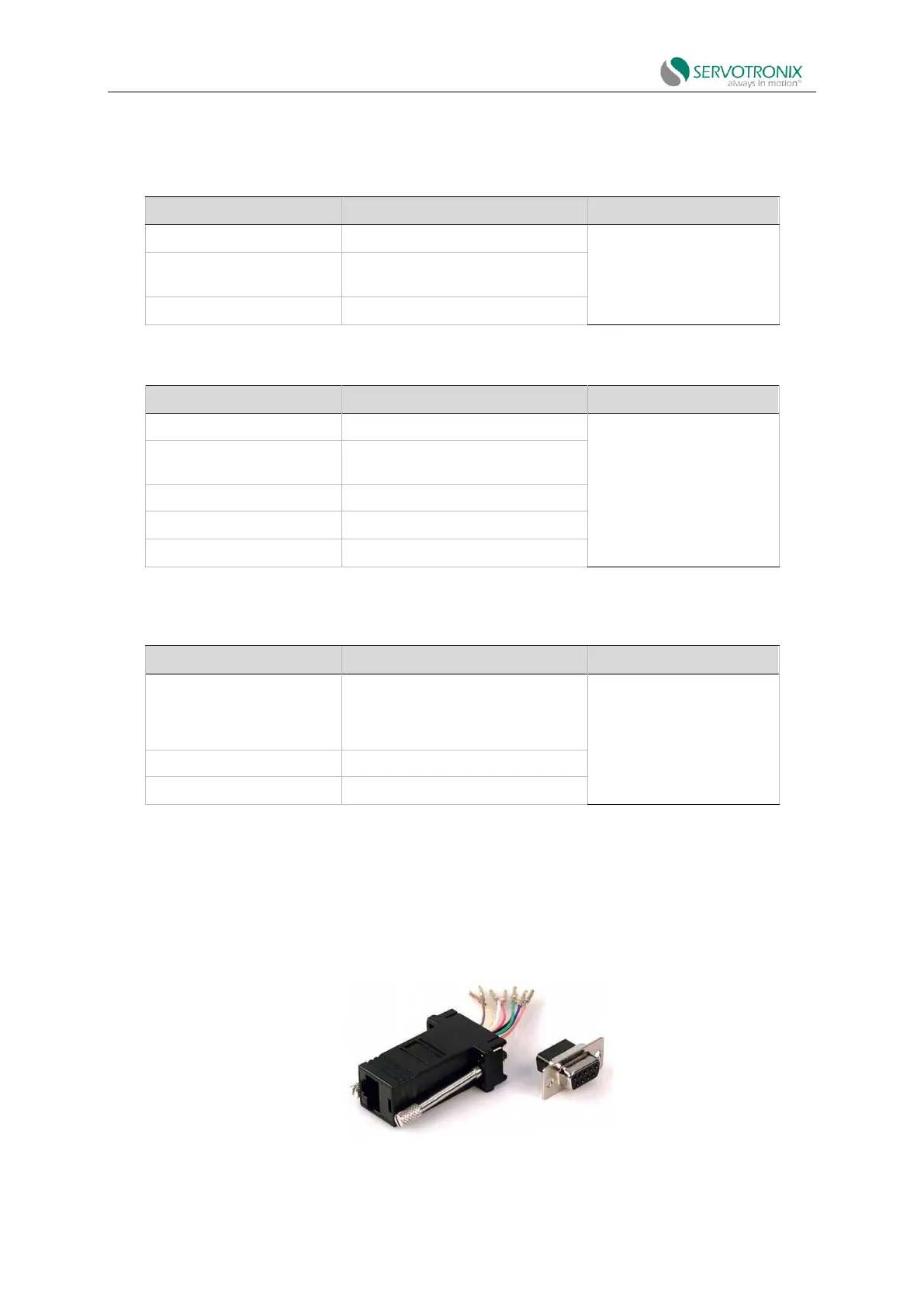

Figure 11-1 D9-RJ45 adapter
