Servotronix CDHD2S - Electrical and Mechanical Specifications

Specifications
—23—

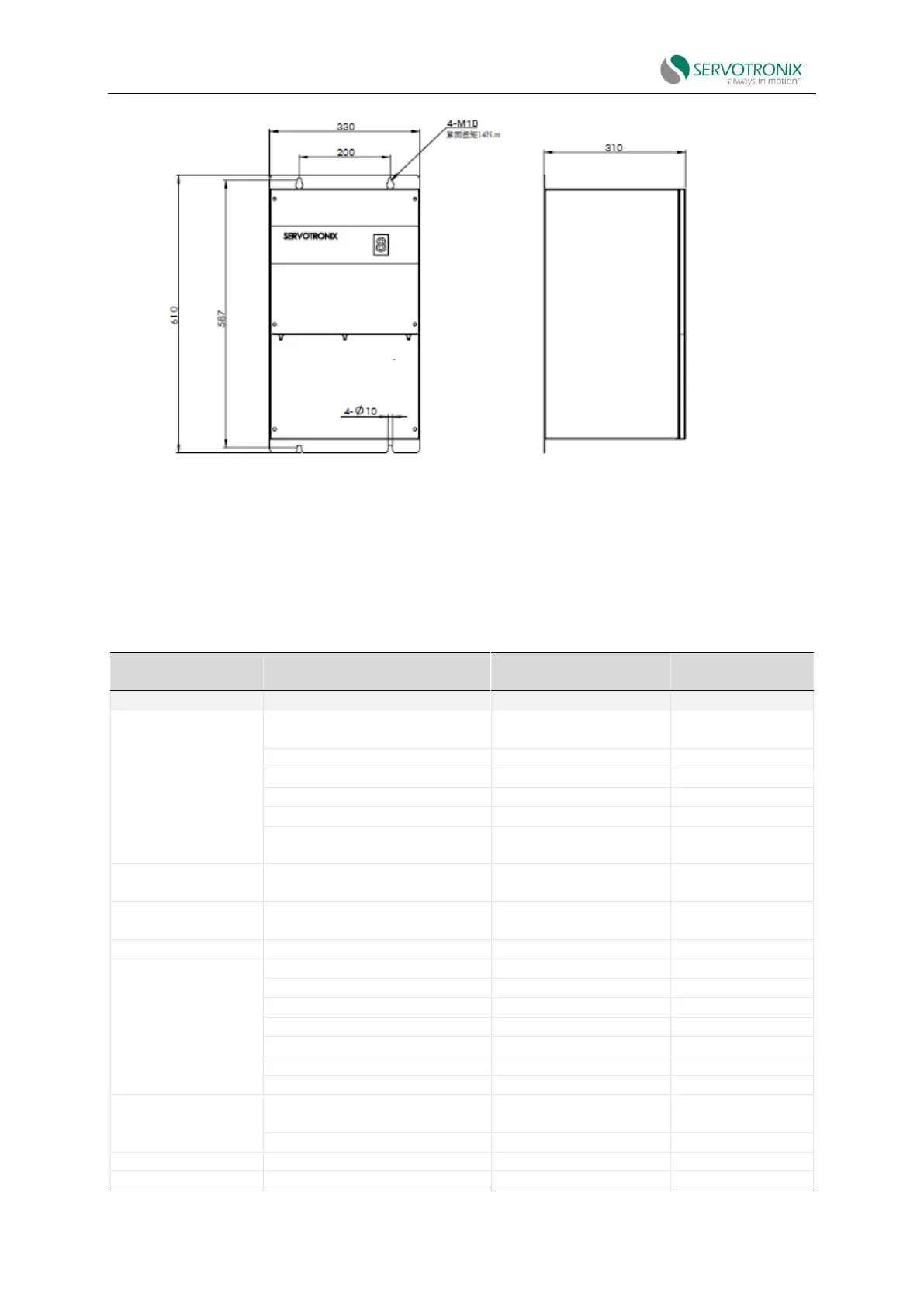

Figure 3-5 CDHD2S-060 (high-voltage) - dimensions (mm)
3.2 Electrical and Mechanical Specifications
Table 错误!文档中没有指定样式的文字。-1 Mechanical and electrical specifications-CDHD2S-1D5/CDHD2S-003
(120/240 VAC)
Single phase
AC 120/240V
Specification
Medium-voltage
CDHD2S-1D5
Medium-voltage
CDHD2S-003
Rating
Input power circuit: L1,
L2
Rated voltage (AC voltage line-
neutral point) ±10%
120/240
120/240
Line frequency (Hz)
50/60
50/60
120/240VAC
1Phase
1Phase
Continuous current (1 phase Arms)
2.5
5
Line fuse (FWP, or equivalent)
4
6
Voltage-endurance (primary to
ground)
1500VAC (2121VDC)
1500VAC (2121VDC)
Control circuit input
power (L1C, L2C)
120±10 or 240±VAC
Single phase
Single phase
STO (safety torque
shutdown)
STO power supply (DC voltage)
24±10%
24±10%
STOFuse(TimeDelay)
120 or 240 VAC (A)
1.5
1.5
Drive output
Continuous output current [Arms]
1.5
3
Continuous output current (Apeak)
2.12
4.24
Peak output current (Arms) 2s
4.5
9
Peak output current (Apeak) 2s
6.3
12.72
kVA, 120V AC voltage
0.28
0.44
kVA, 240V AC voltage
0.37
0.74
PWM frequency (kHz)
16
16
Soft start
Maximum soft-start surge current
(A)
7
7
Maximum charging time (ms)
350
350
Circuit power loss
W
Control circuit loss
W
5
5
