Specifications
—21—
3. Specifications
3.1 Dimensions
Various models of CDHD2S drives are housed in many different enclosures. The appearance
dimensions of the enclosure are as shown in the figure below.

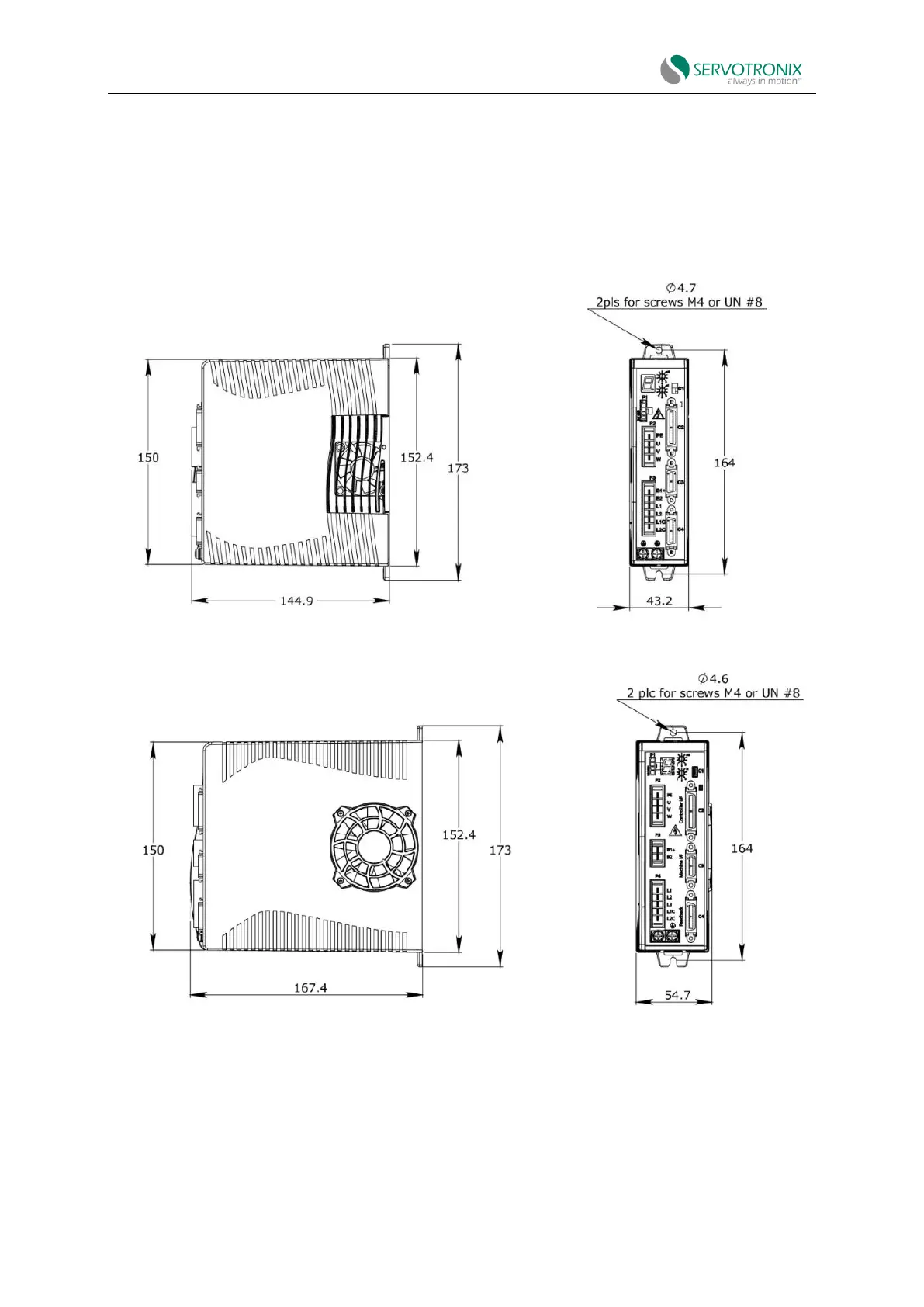

Figure 3 -1 CDHD2S-1D5/CDHD2S-003 (medium-voltage) - dimensions (mm)
Figure 3 - 2 CDHD2S-4D5/CDHD2S-006 (medium-voltage) - dimensions (mm)
