Servotronix CDHD2S - Line Filter

CDHD2S Accessories
—266
—

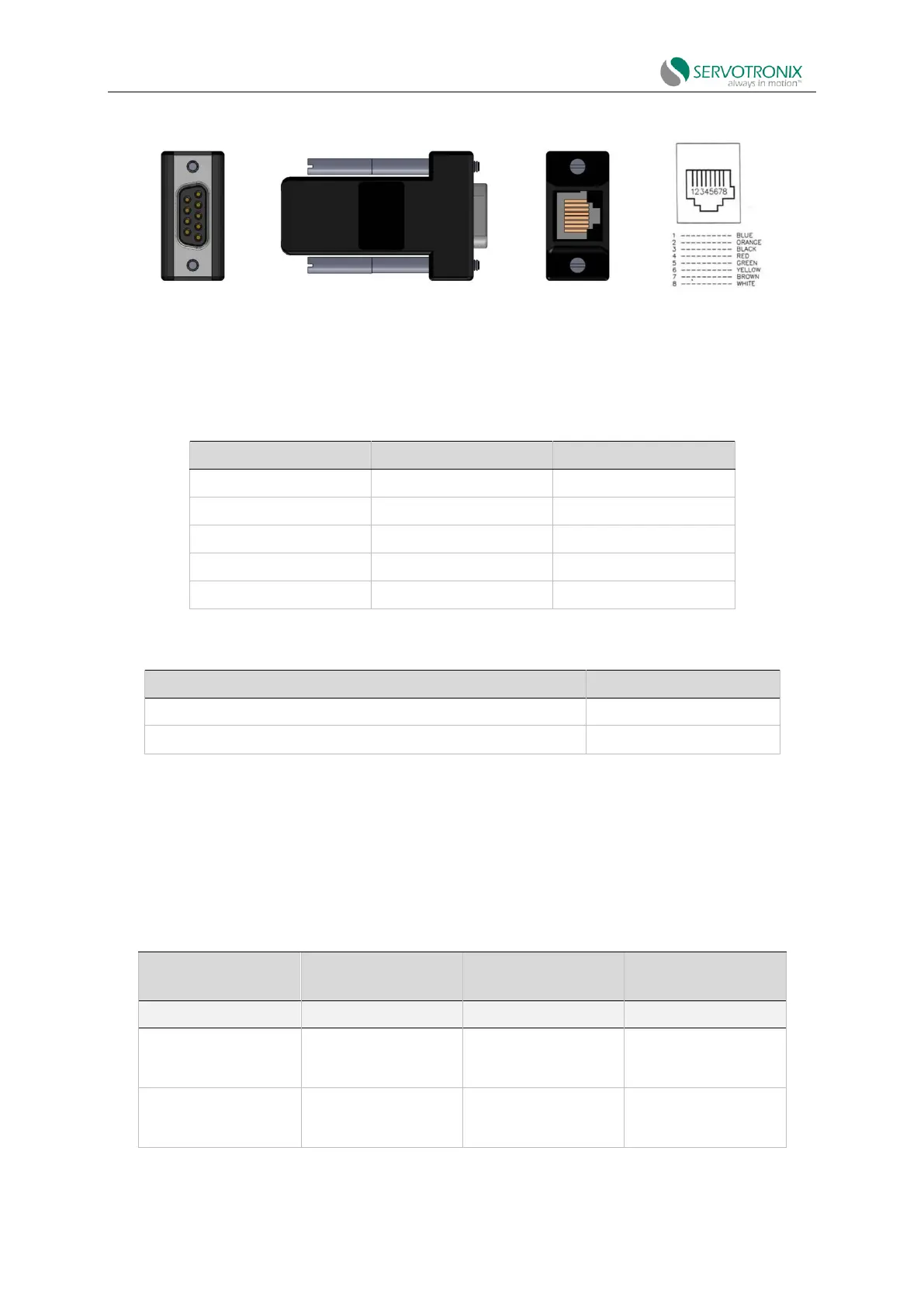

Figure 11-2D9-RJ45 adapter interface
Table 11-11 D9-RJ45 adapter wiring
Function
CDHD2SRJ45 pin
D9 connector pinout
CAN high
1
7
CAN low
2
2
Functional ground
3
3
CAN shield
6
5
Functional ground
7
6
Table 11-12 D9-RJ45 adapter
Description
Servotronix part number
CDHD2S adapter CAN, D9 to RJ45
ADPrCAN_D9|RJ45
CDHD2S adapter DB95, RJ45/jack 8 contacts
ADPr0AMK0001-00
11.4 Line filter
The recommended line filter manufacturers and part numbers of CDHD2S are listed in the
following table.
Table 11-13 Recommended line filters
High-voltage model
CDHD2S-012
CDHD2S-024
CDHD2S-030
Main line
Three phase
Three phase
Three phase
Manufacturer
part number
LCR
096B.02001.00
LCR
096.03501.00
LCR
096.03501.00
Manufacturer
part number
CORCOM
25FCD10
LCR
096B.03001.00
LCR
096B.03001.00
