Drive Setup
—109
—

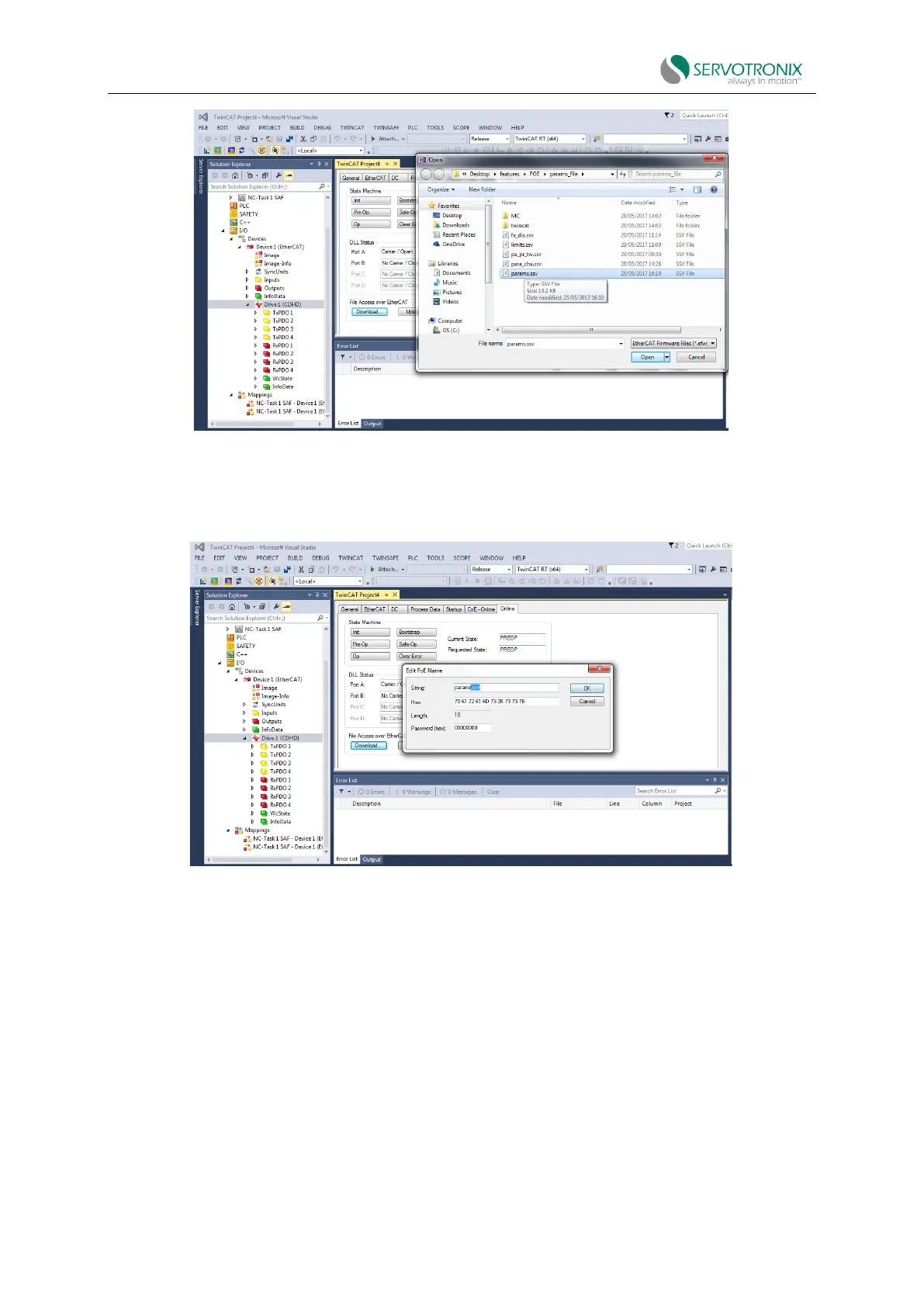

Figure 4-56
4. Ensure that The File Name Contains the Extension .SSV
(By default, TwinCAT does not add extensions.)
Figure 4-57
5. Click “OK”.
Observe the drive. When downloading parameters, the digital display shows oR.
6. Wait about 10 seconds. When the download is completed, the digital display will be restored to its
previous settings.
