Application Setup
—129
—
It will be displayed when "Interface Mode" is the following mode:
⚫ EtherCAT
⚫ CANopen
⚫ PROFINET
⚫
Application Setup - Input/Output

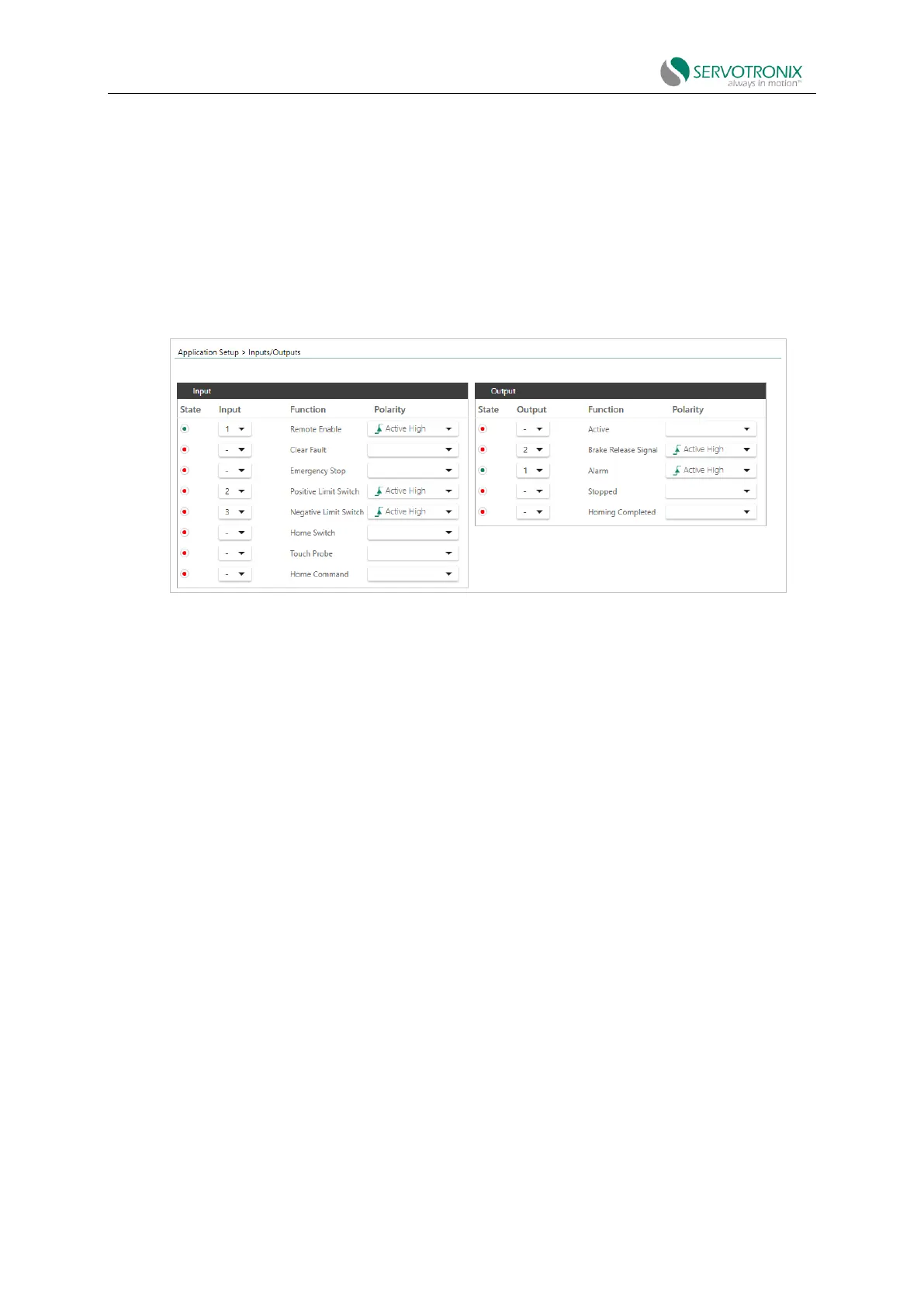

Figure 6-15 ServoStudio2 - application setup - input/output
It will be displayed when "Interface Mode" is the following mode:
⚫ EtherCAT
⚫ CANopen
⚫ Pulse train
⚫ Analog command
⚫ USB/RS232
