5. Configure the safety laser scanner, see "C
onfiguration", page 72.
6. Perform commissioning again, taking particular care to conduct all of the thorough
checks described, see "Commissioning", page 114.
11.5 Replacing the system plug
If the system plug is damaged or defective, you must replace it.
NOTICE
Enc
losure rating IP65 only applies if the safety laser scanner is closed and the system
plug is mounted.
NOTICE
If t
he system plug is mounted with excessive force, the contacts can break or bend.
b
Plug in the system plug carefully.
b
Do not force it.
Tool required:
•
T
X10 Torx wrench
Approach
1. Make sure that the environment is clean and clear of fog, moisture, and dust.
2.
Disconnect the connecting cables from the system plug.
3. If necessary: move the safety laser scanner to a clean location.
4. Unscrew screws in the defective system plug and remove the system plug from the
safety laser scanner.
5.
Make sure that the seal is seated correctly (1).
6.
Carefully place the new system plug onto the safety laser scanner at the back (2).
7.
Carefully fold the system plug onto the safety laser scanner (3).
8. Screw in the system plug using the captive screws. Tightening torque: 1.4 Nm.
9. Reconnect the connecting cables to the system plug.
10. Configure the safety laser scanner, see "Configuration", page 72.
11. Perform commissioning again, taking particular care to conduct all of the thorough
checks described, see "Commissioning", page 114.
1
3
2

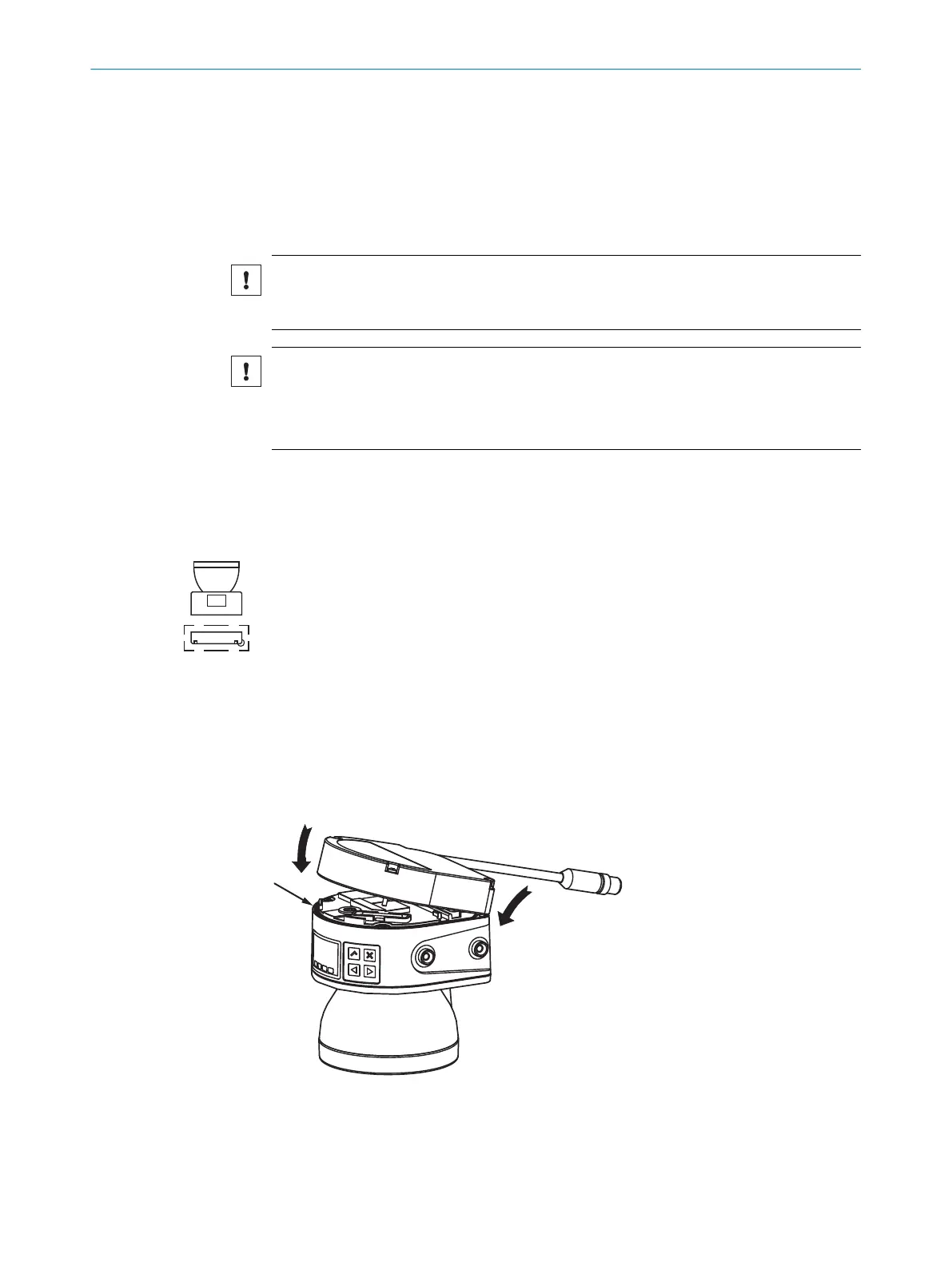

Figure 78: Installing the system plug on the safety laser scanner
MAINTENANCE 11
8025870/2020-09-04 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O
127
Subject to change without notice
