Display orientation
If y
ou mount the safety laser scanner with the optics cover downward, you can rotate
the orientation of the display through 180°. The preview shows the selected orientation
of the display.
b
Choose the option Normal or Upside down for display orientation.
✓
The preview shows the display’s orientation.
8.7 Monitoring plane
A safety laser scanner’s scan plane forms its monitoring plane.
D
efine the following parameters:
•
Parameters for the monitoring plane
•
Parameters for the safety laser scanner

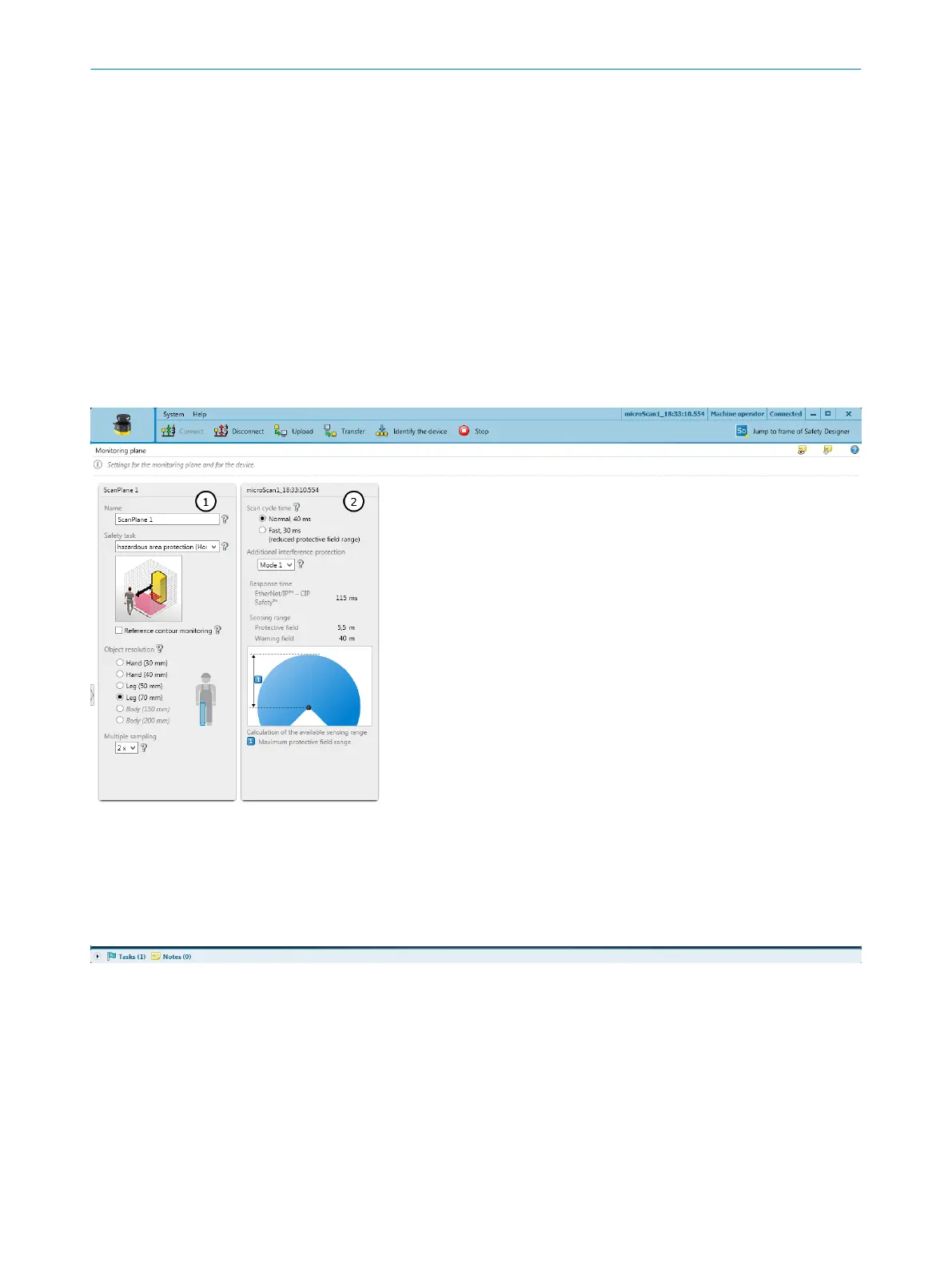

Figure 58: Monitoring plane
1
Parameters for the monitoring plane
2
Parameters for the safety laser scanner
8.7.1 Parameters for the monitoring plane
Overview
C
onfigure a name, the protection task, object resolution, and multiple sampling setting
for the monitoring plane.
CONFIGURATION 8
8025870/2020-09-04 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O
85
Subject to change without notice
