ag the Always ON function onto the cut-off path.
✓
The field is viewed as being permanently clear.
If the monitoring case becomes active, the cut-off path is always in the ON state.
If fields have not been assigned to certain cells in a monitoring case table, Safety
D
esigner assigns the Always OFF function to these cells.
8.12 Simulation
Overview

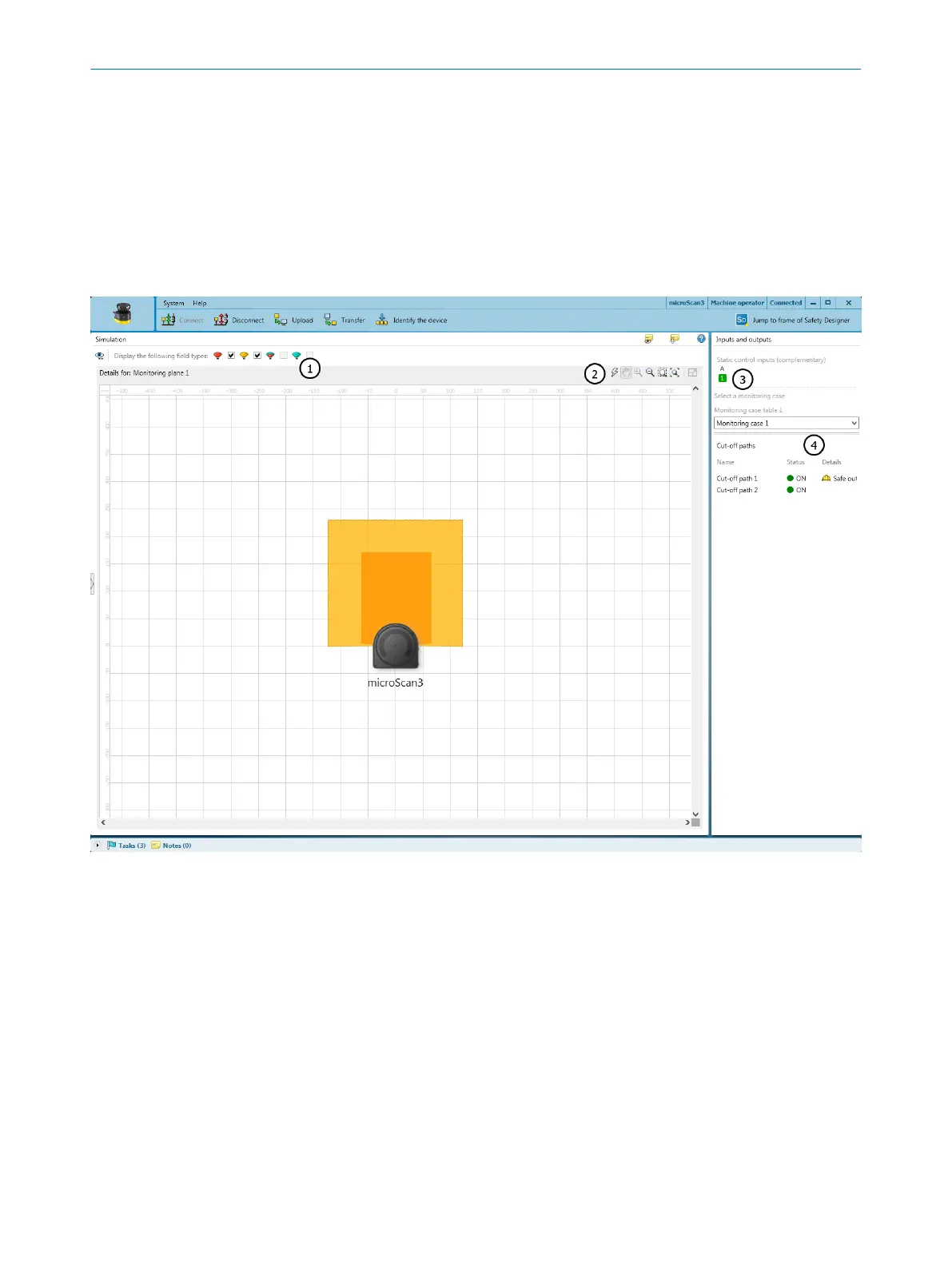

Figure 68: Simulation
1
Show or hide field types
2
Simulation tools
3
Select input conditions
4
Display the cut-off paths
You can visualize the result of the set configuration in the simulation.
Simulation components and options
•
Dis
play the status of the OSSD pairs
•
Display the status of the cut-off paths
•
Get feedback about which monitoring case is active for the selected input sample
(default: monitoring case 1 is active)
•
You can switch inputs, monitoring cases, etc. virtually using symbols and observe
the result
8 C
ONFIGURATION
108
