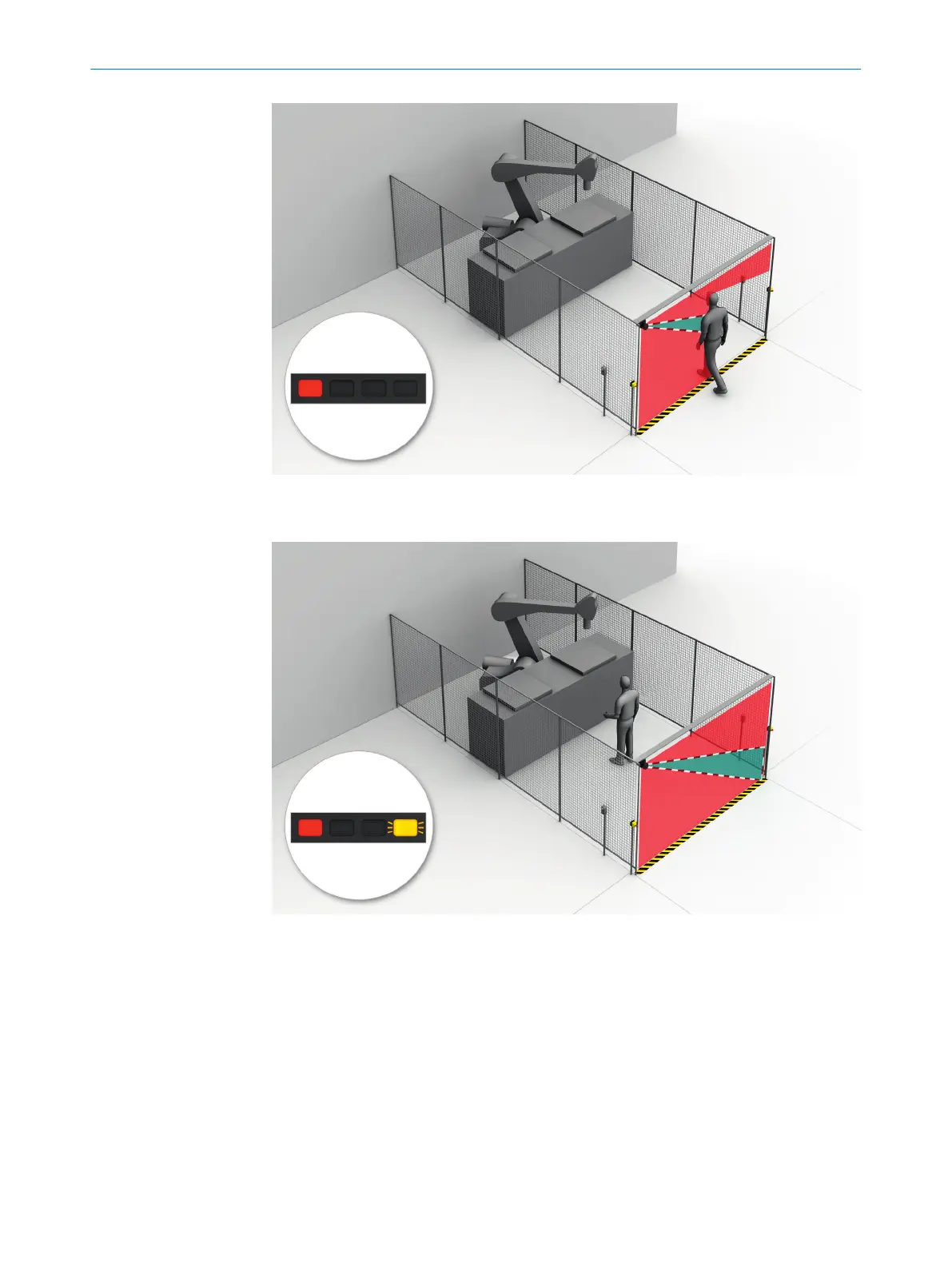

Figure 41: How the restart interlock works (2): person detected in protective field, safety output
in OFF s
tate
Figure 42: How the restart interlock works (3): person in hazardous area, no detection in protec‐
tive field, safety output still in OFF state
