SICK microScan3 Core I/O

8.2.6.2 Open the device window – configure devices
Overview
T
o configure the device, perform diagnostics or create reports, open a device window.
Approach
You have the following options:
b
Double-click on the Device tile.
Or:
b
Open t
he tile menu and choose Configure.
✓
The device window opens.
Complementary information
W
hen a device is configured offline for the first time, the device selection assistant
opens. This is where you select the type of device to be configured.
In the bottom section of the device selection wizard, select the part number of the
device from the list.
8.3 Overview

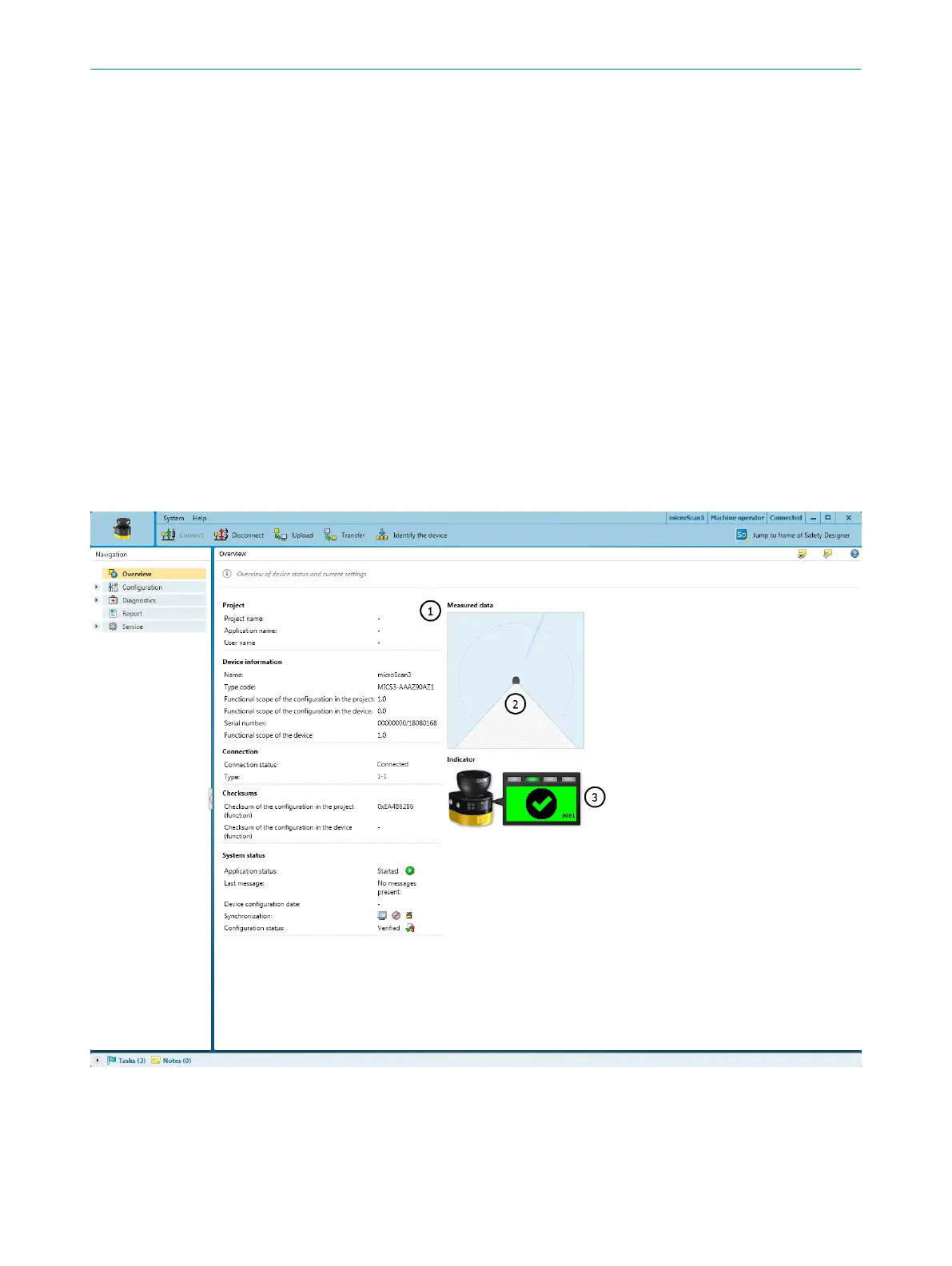

Figure 54: Overview
1
Device information
2
Current measurement data
3
Display with device status
CONFIGURATION 8
