12.4.1 Data recorder
Overview

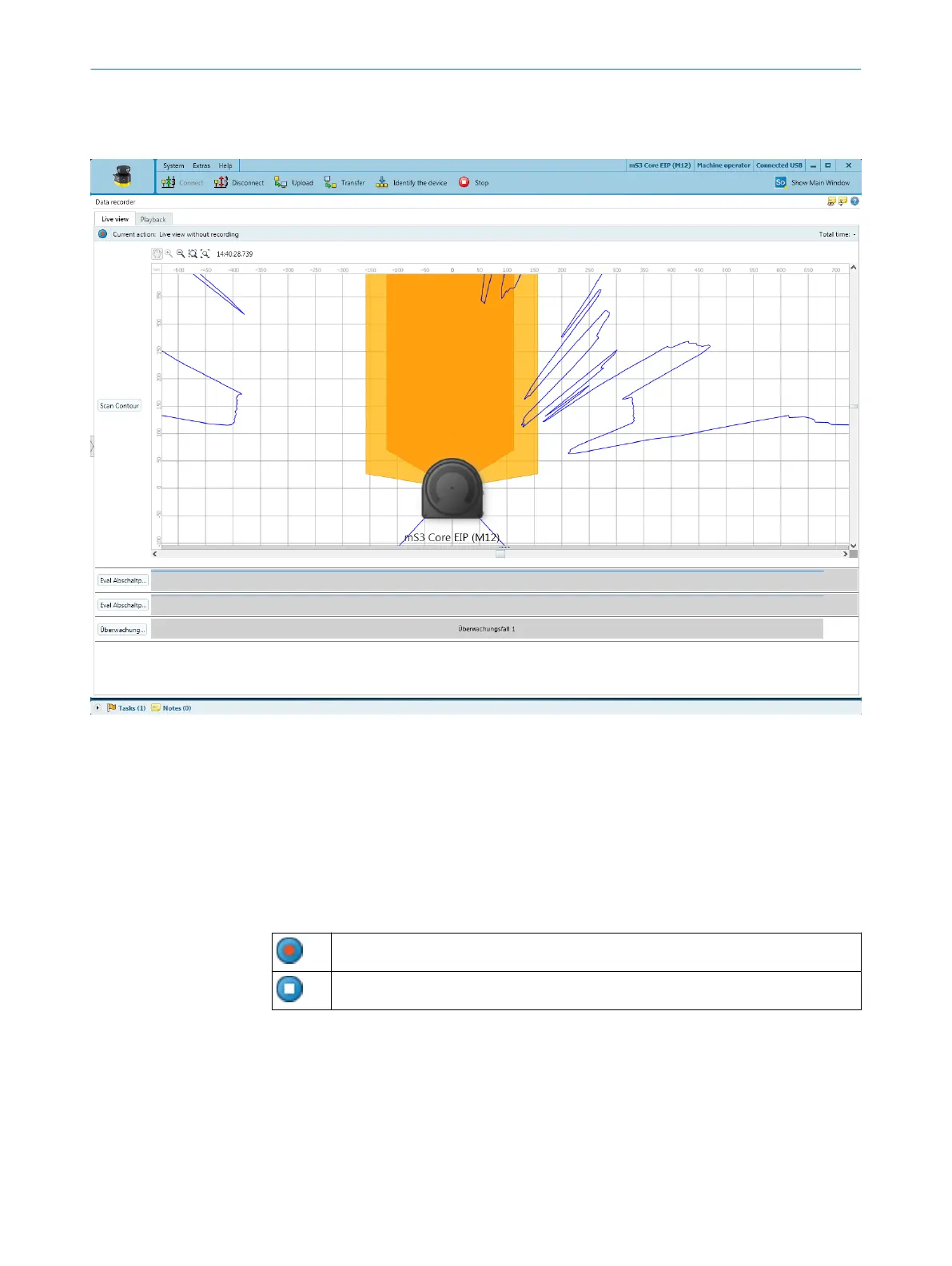

Figure 83: Data recorder
Y
ou can use the data recorder to record the device’s signals continuously. The mea‐
surement data are not transmitted and shown for every scan cycle, depending on the
interface and your capacity.
The data is saved in a data recorder diagnostics file.
You can play the data recorder diagnostic file in the data recorder.
Settings can be made in the Safety Designer main window.
Table 21: Data recorder
Start recording
Stop recording
Typical applications
•
Chec
k spatial geometry
•
Check where a person can stay or when a person is detected
•
Check input information about the current monitoring case
•
Check why safety outputs have switched
