8.10 Inputs and outputs, local
Overview

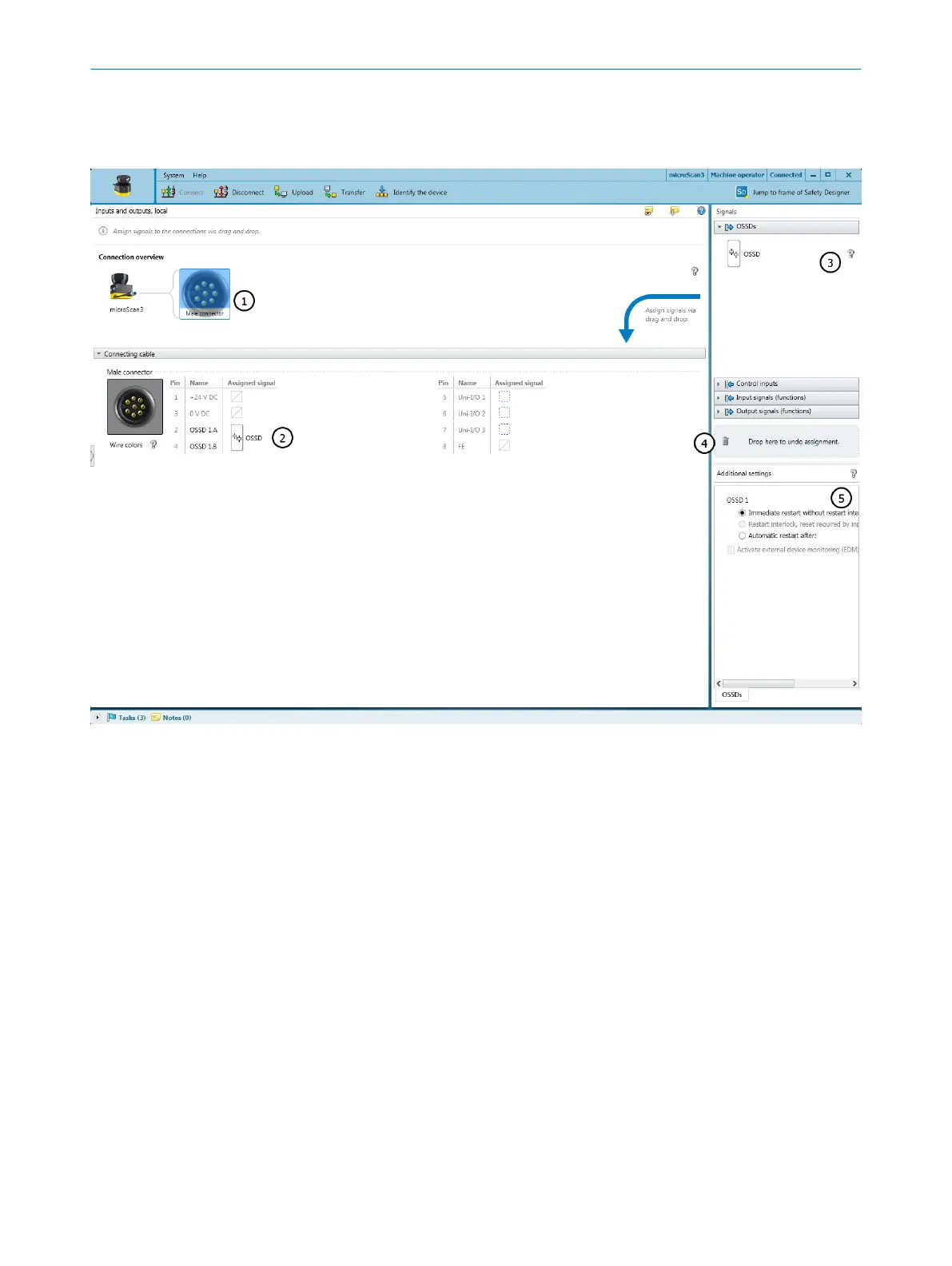

Figure 66: Inputs and outputs, local
1
Overview: plug connector of the safety laser scanner
2
Pin assignment
3
Available signals
4
Remove signal from connection
5
Further settings for some signals
Assign the required signals to the safety laser scanner’s connections in the In
puts and
outputs, local dialog box.
Connection overview
Safety Designer shows the safety laser scanner’s plug connector in the center of the
dialog box.
Pin assignment
Safety Designer shows the plug connector with the individual pins.
Assigning signals to the pins
Safety Designer shows the available signals on the right under Signals.
b
Click on the desired signal type (for example on Control inputs).
✓
The menu shows the possible control inputs.
8 C
ONFIGURATION
102
