SICK microScan3 Core I/O User Manual

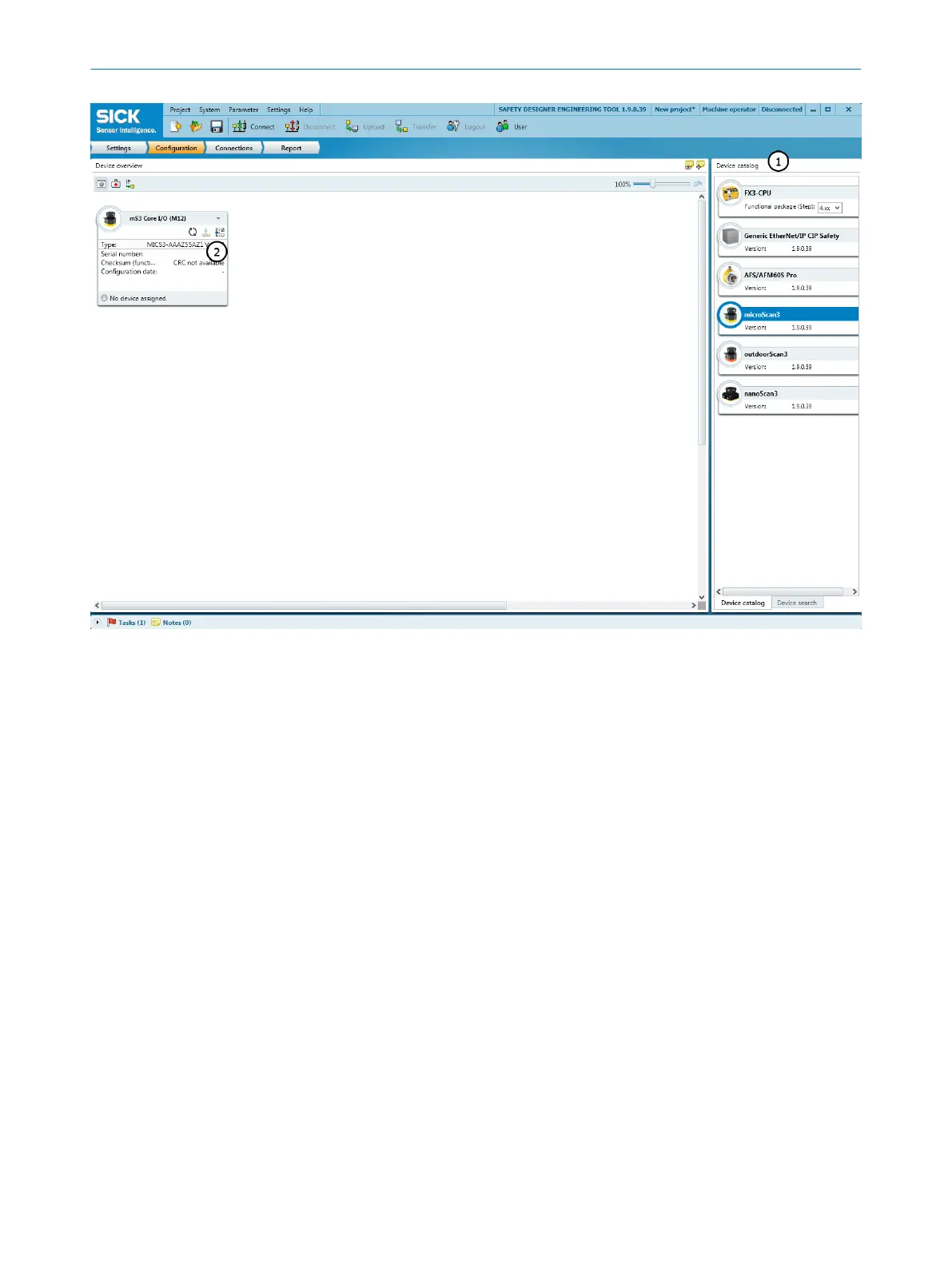

Figure 53: Configuration
1
Device Catalog
2
Device tile
8.2.6.1 Device Catalog
Overview
T
he device catalog contains all available devices:
•
The Device catalog tab contains the devices installed in Safety Designer.
•
The Device search tab contains the devices found during a device search.
Approach
The devices from the device catalog can be added to a project in the workspace:
b
Drag a device into the working area using drag and drop.
Or:
b
Double-click on a device in the device catalog.
✓
The device is shown as a tile in the working area.
Complementary information
W
hen a device is configured offline for the first time, the device selection assistant
opens. This is where you select the type of device to be configured.
In the bottom section of the device selection wizard, select the part number of the
device from the list.
8 C
ONFIGURATION
78
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O 8025870/2020-09-04 | SICK
Subject to change without notice
