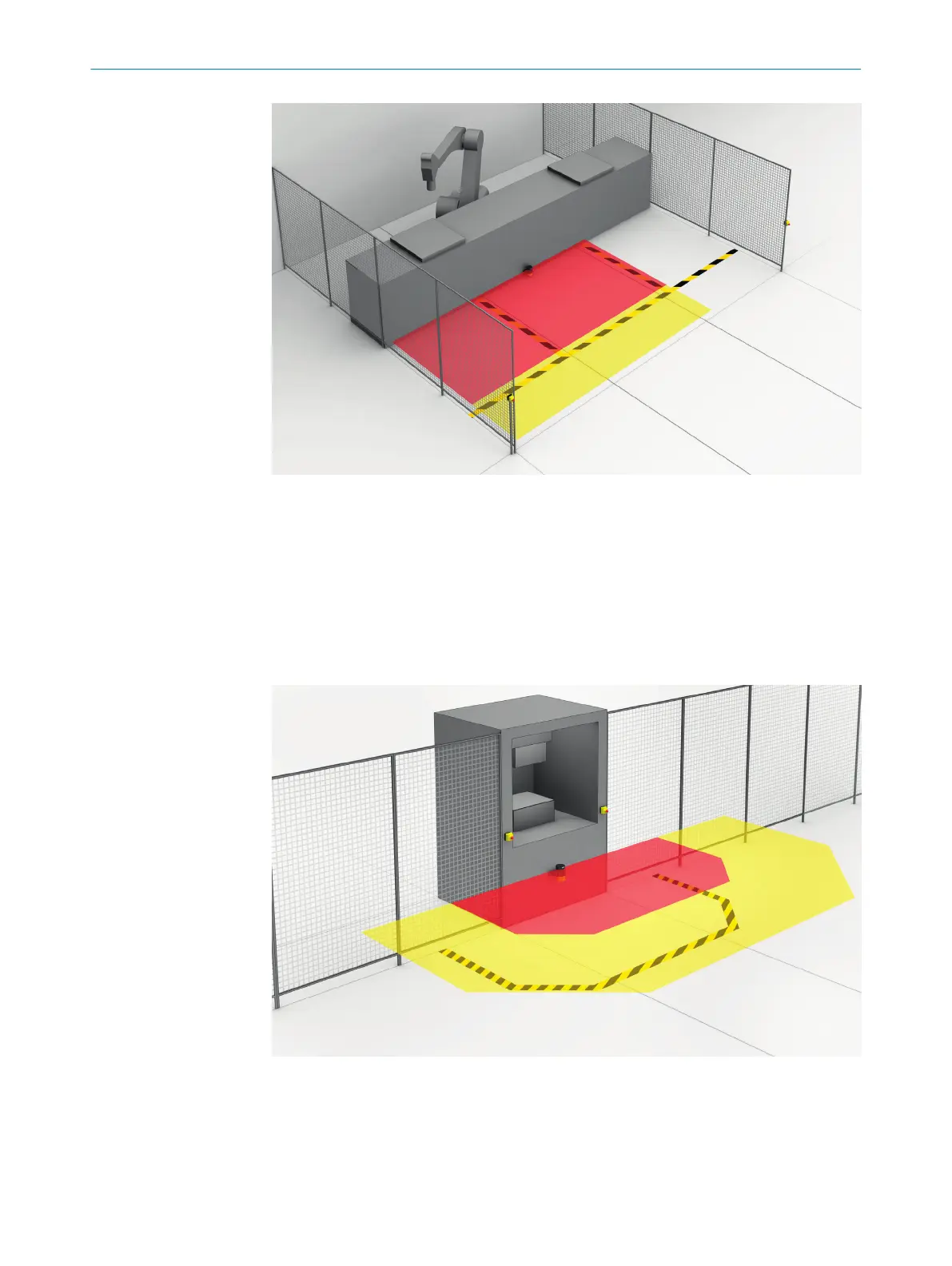

Figure 11: Monitoring case 2 with field set 2
4.3 Example applications
Hazardous area protection
In ha
zardous area protection, people are detected if they stay in a defined area.
This type of protective device is suitable for machines, where it is possible to see a
hazardous area completely from the reset pushbutton. When the hazardous area is
entered, a stop signal is triggered and starting is prevented.
Figure 12: Hazardous area protection: detection of the presence of a person in the hazardous
ar
ea
Hazardous point protection
In hazardous point protection, the approach is detected very close to the hazardous
point.
4 P
RODUCT DESCRIPTION
