3.
C
arefully fold the system plug onto the safety laser scanner 3.
4. Screw in the system plug using the captive screws. Tightening torque: 1.4 Nm.
6.3.2 Direct mounting
The safety laser scanner has 4 M5 threaded holes on the back. If you are able to drill
t
hrough the mounting surface from the rear, you can mount the safety laser scanner
directly using these threaded holes.
1
1 2
2

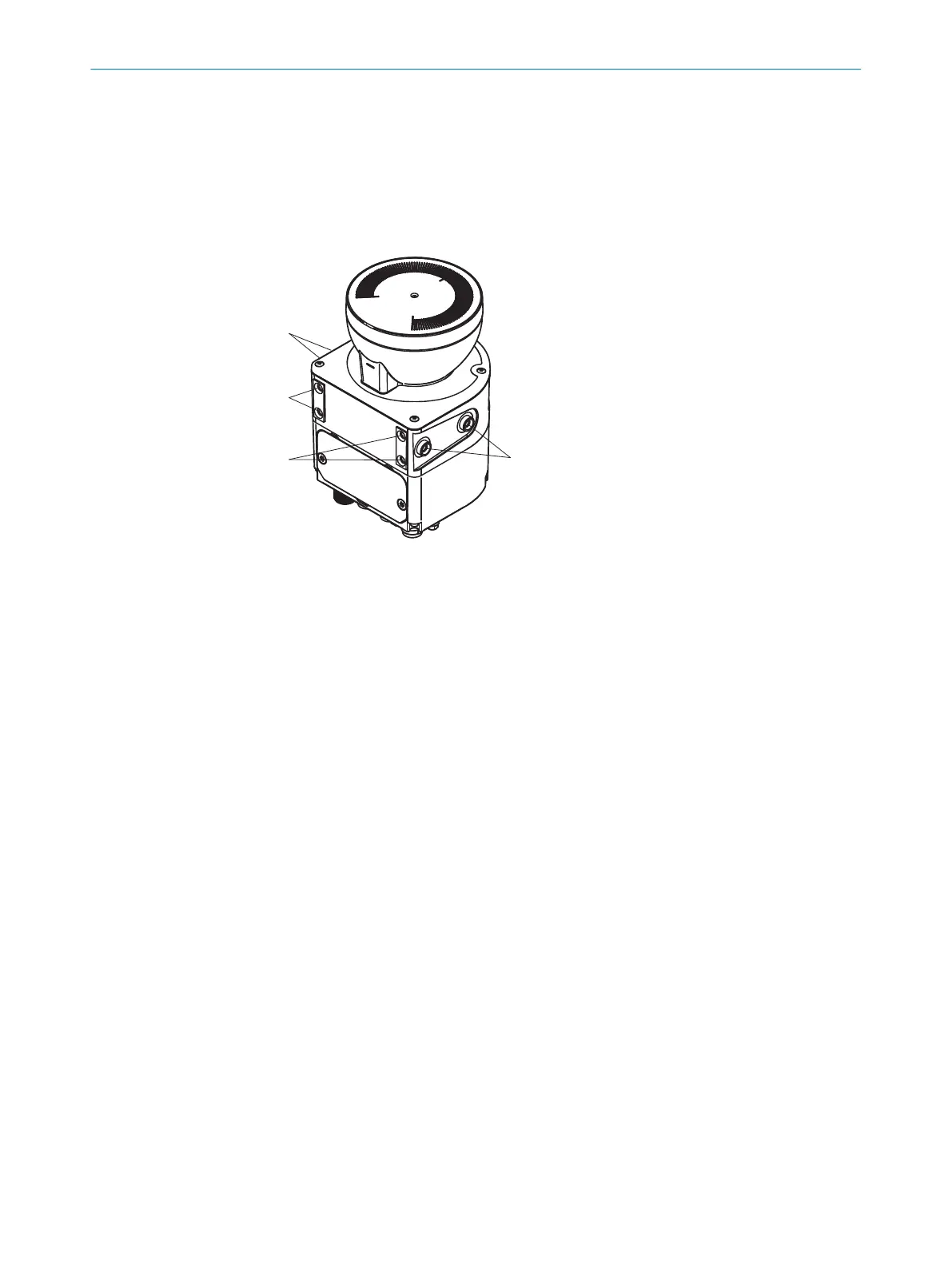

Figure 48: Mounting the safety laser scanner directly
1
Rear M5 threaded hole
2
Side M5 threaded hole
b
Use either the rear or the side M5 threaded holes for direct mounting, see
figure 48, page 68.
b
Use all four rear or all 4 side M5 threaded holes for direct mounting, so that the
values given in the data sheet for vibration and shock resistance are achieved.
b
Maximum depth of thread engagement: 7.5 mm (see "Dimensional drawings",
page 152).
b
Tightening torque: 4.5 Nm to 5.0 Nm.
6 MOUN
TING
68
