SICK microScan3 Core I/O User Manual

14.7 Dimensional drawings
1
2
112
Ø 99,5
≤ 200
M5×7,5
85
44
12
135,1
111,1
300
47,147,9 40,1
≥ 25
≥ 25
22 36,136,9
3

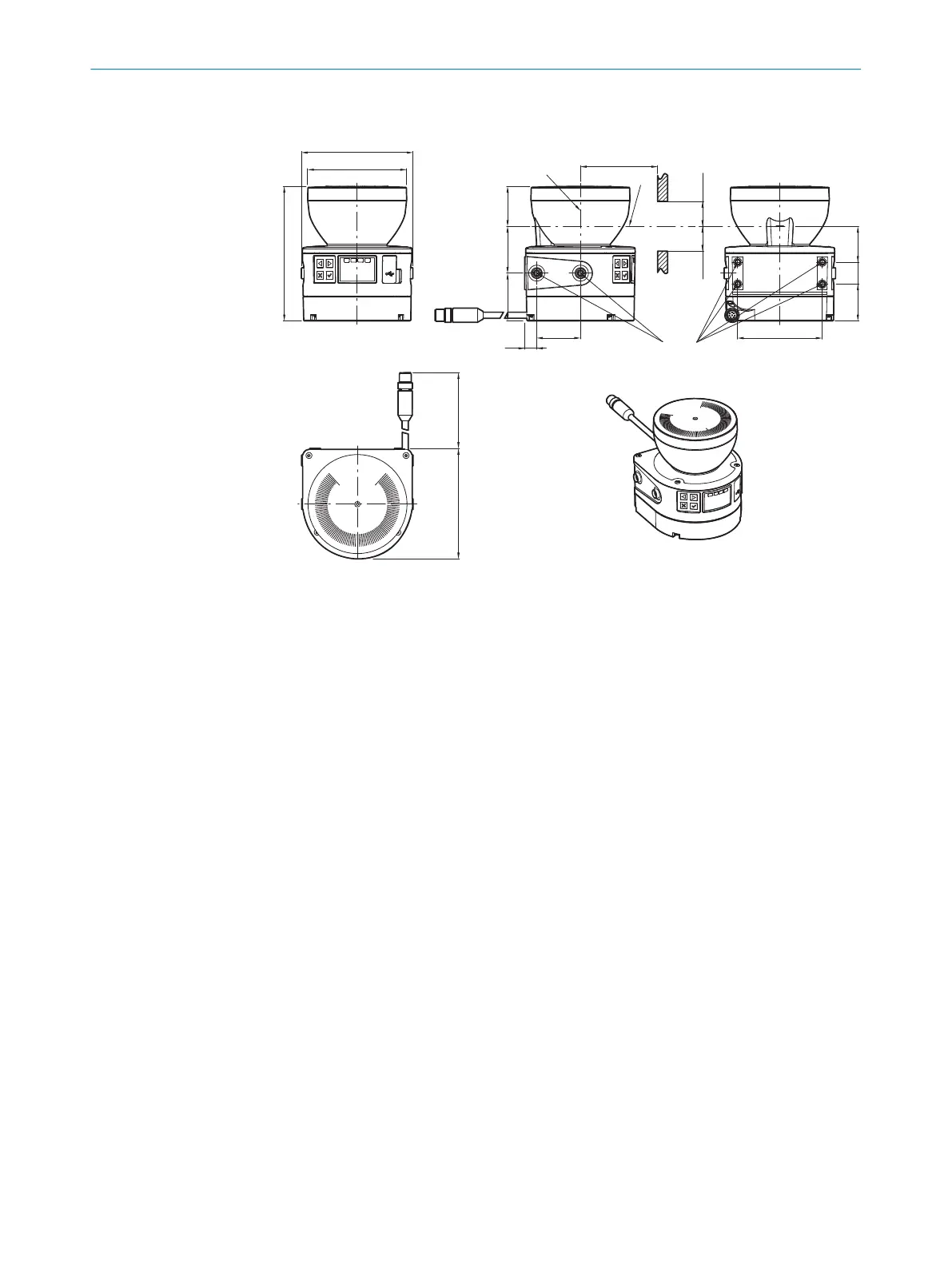

Figure 90: Dimensional drawing
All dimensions in mm.
1
Mirror rotational axis
2
Scan plane
3
Required viewing slit
14 TECHNICAL DATA
152
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O 8025870/2020-09-04 | SICK
Subject to change without notice
