SICK microScan3 Core I/O User Manual

Table 18: Status LEDs
Number Function Color Meaning
1
OFF state Red Lights up red when the OSSD pair is
in t
he OFF state.
2
ON state Green Lights up green when the OSSD pair
is in the ON state.
3
Warning field Yellow Shines yellow if at least one warning
field is interrupted.
4
Restart interlock Yellow Setup with reset: Flashes if the
r
estart interlock has been triggered.
Configuration with automated restart
after a time: Lights up while the con‐
figured time to restart expires.
The OFF state and ON state LEDs can be found in multiple locations on the safety laser
sc
anner. 3 additional sets are arranged in pairs on the base of the optics cover. So the
LEDs can also be seen in many cases when it is not possible to see the display, e.g. due
to the mounting situation or because it is hidden from the operator’s position.
12.3 Diagnostics using the display
The display supplies information about the status of the safety laser scanner, and for
dia
gnostics and troubleshooting.
12.3.1 Status display
The display shows current information about the safety laser scanner’s status. The
dis
play switches off after approx. 60 s if all fields are clear and no other notification is
displayed.
b
If the display is switched off, press any pushbutton to activate the display.
b
Press any pushbutton to obtain more details about the displayed status informa‐
tion.
b
If there are a number of pages with detailed information, this is shown in the top
right of the display.
b
Press the arrow buttons to change between a number of pages with detailed
information.

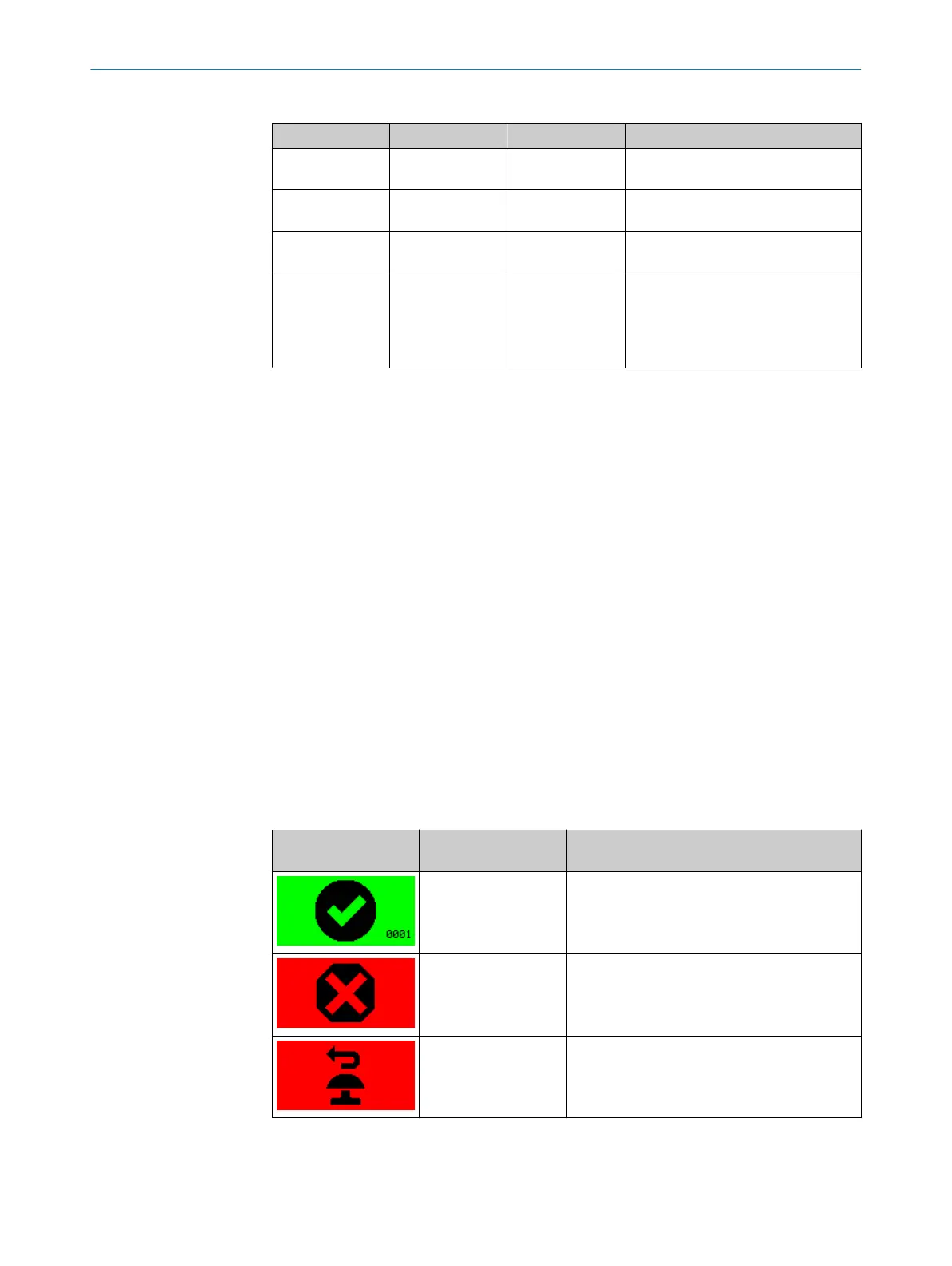

Table 19: Overview of status information
Display Device or configura‐
tion
Meaning
All devices and config‐
ur
ations
All fields clear, OSSD pair in ON state.
The number at bottom right indicates the
active monitoring case.
Devices with an OSSD
pair
OSSD pair in OFF state.
Configuration with
restart interlock
Protective field is clear, reset can take place.
12 TROUBLESHOOTING
130
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O 8025870/2020-09-04 | SICK
Subject to change without notice
