8.9.1 Using the field editor
Overview

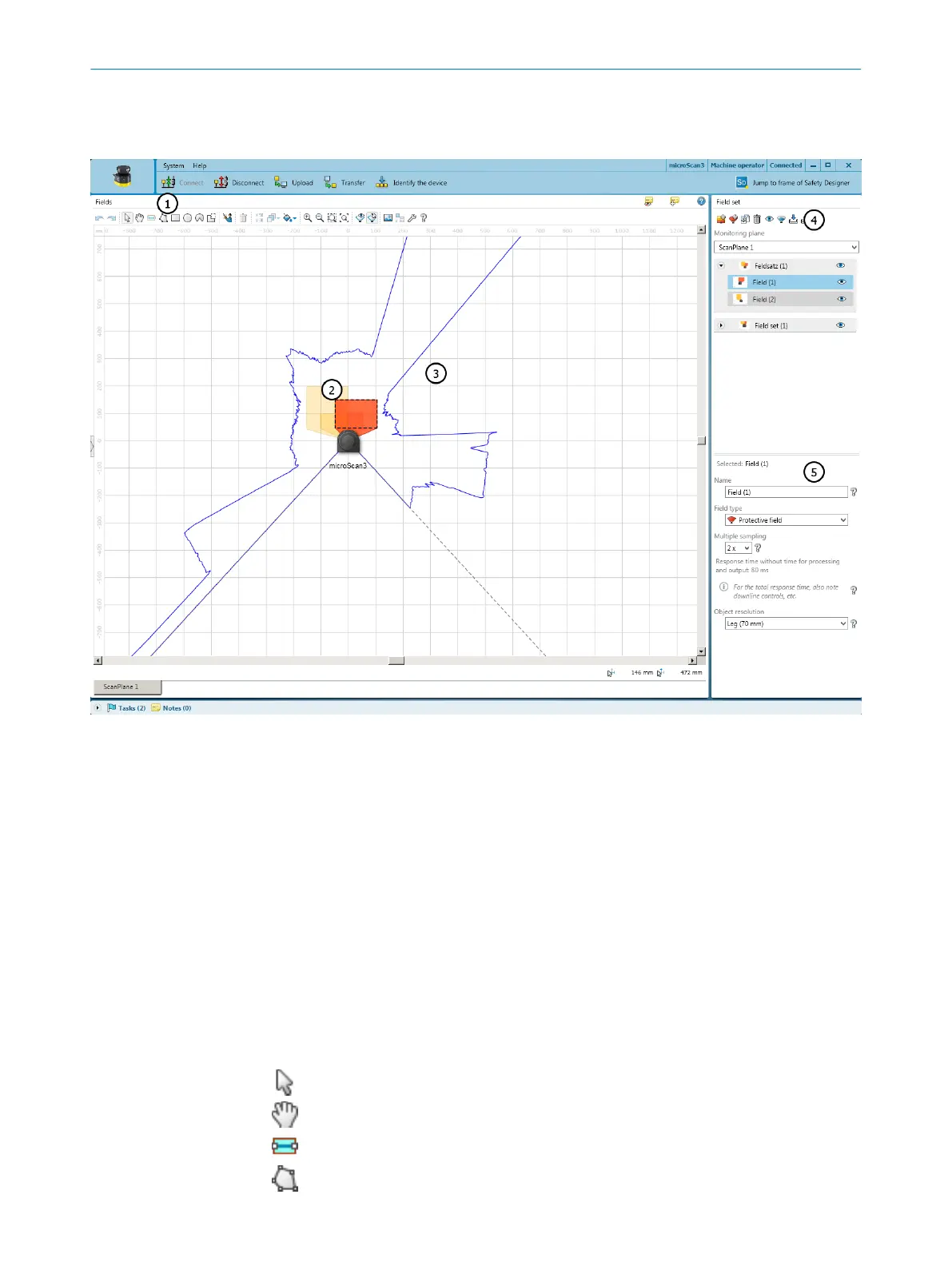

Figure 60: Field editor
1
Toolbar
2
Protective field (red) and warning field (yellow) created
3
Visible spatial contour
4
Create, copy, delete field set and fields
5
Define field type, name field, configure field
In the F
ields area, you can draw the fields in a field set using the tools in the toolbar.
You can create field sets and fields in the Field set area. In the area below, you can
define the field type, enter the name and, configure multiple sampling and the object
resolution, if necessary.
Toolbar
Using the tools in the field editor, you can draw the fields in a field set or masked areas
inside the fields.
Table 10: Buttons on the toolbar
Arrow tool, for marking objects
Hand tool, for moving the work space
Draw reference contour field or contour detection field
Draw field using points
CONFIGURATION 8
8025870/2020-09-04 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O
91
Subject to change without notice
