8.8 Reference contour field
Overview

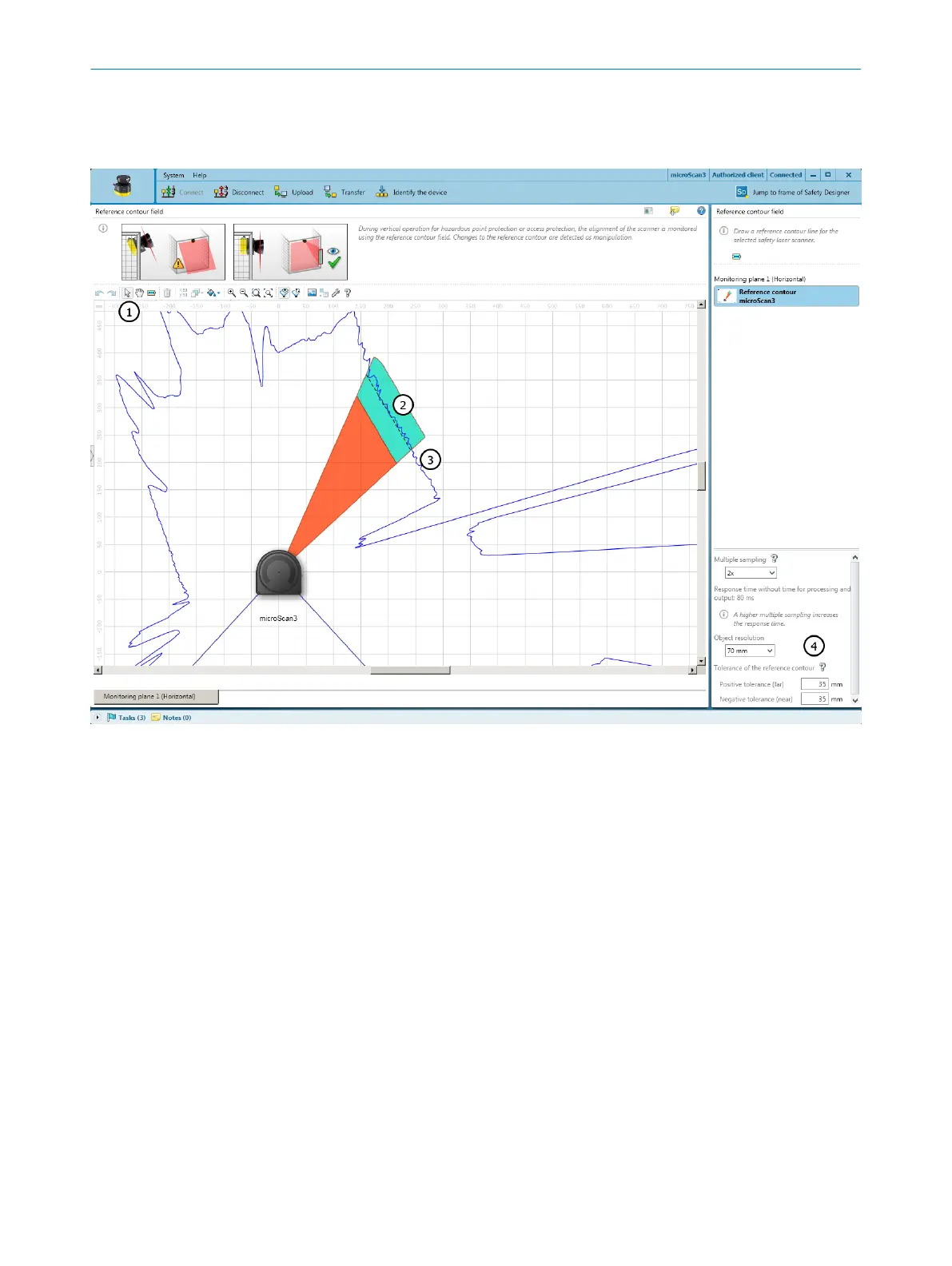

Figure 59: Reference contour field
1
Tool for drawing reference contour fields
2
Drawn contour with tolerance band
3
Visible spatial contour
4
Configure the field
If you have activated the R
eference contour monitoring option for a monitoring plane, the
Reference contour field dialog box is shown. Draw the reference contour field on the basis
of the values determined during project planning (see "Reference contour monitoring",
page 30).
The reference contour field monitors a contour of the environment. The safety laser
scanner switches all safety outputs to the OFF state if a contour does not match the set
parameters, because, for example, the mounting situation of the safety laser scanner
were changed.
Drawing a reference contour field
1.
Select the tool for drawing reference contour fields.
2. Draw a line along the spatial contour as a reference.
b
First, use the mouse to click the desired contour.
b
Click to add the corners of the contour.
b
Finally, double-click the contour.
✓
The reference contour field is displayed.
CONFIGURATION 8
8025870/2020-09-04 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O
89
Subject to change without notice
