The F
unctionality of the device and Functionality of the configuration show whether a configu‐
ration is compatible with the firmware version of a device. This can be important when
exchanging a device, for example.
Configuration and firmware version of a device are compatible if the following condi‐
tions are met:
•
The 1st place of both numbers must be identical
•
The 2nd place for the device must be at least as large as that for the configuration
•
The 3rd place does not have an effect on the compatibility
Diagnostics
Y
ou will find information about the following subjects in the diagnostics area:
•
Intrusion history: position and time of the last 10 objects in a protective field that
have led to a safety output switching to the OFF state.
•
Message history: error code and error type of the last 10 error messages.
•
Service: currently measured contamination of the optics cover, operating hours,
number of power-up processes.
Device restart
Y
ou have the following options in the device restart area:
•
Restart the safety laser scanner.
Settings
Y
ou have the following options in the settings area:
•
Set the display brightness and contrast.
12.3.3 Fault display
If there is a fault, the display shows a warning symbol, a type of fault and a fault code
on a red flashing background.

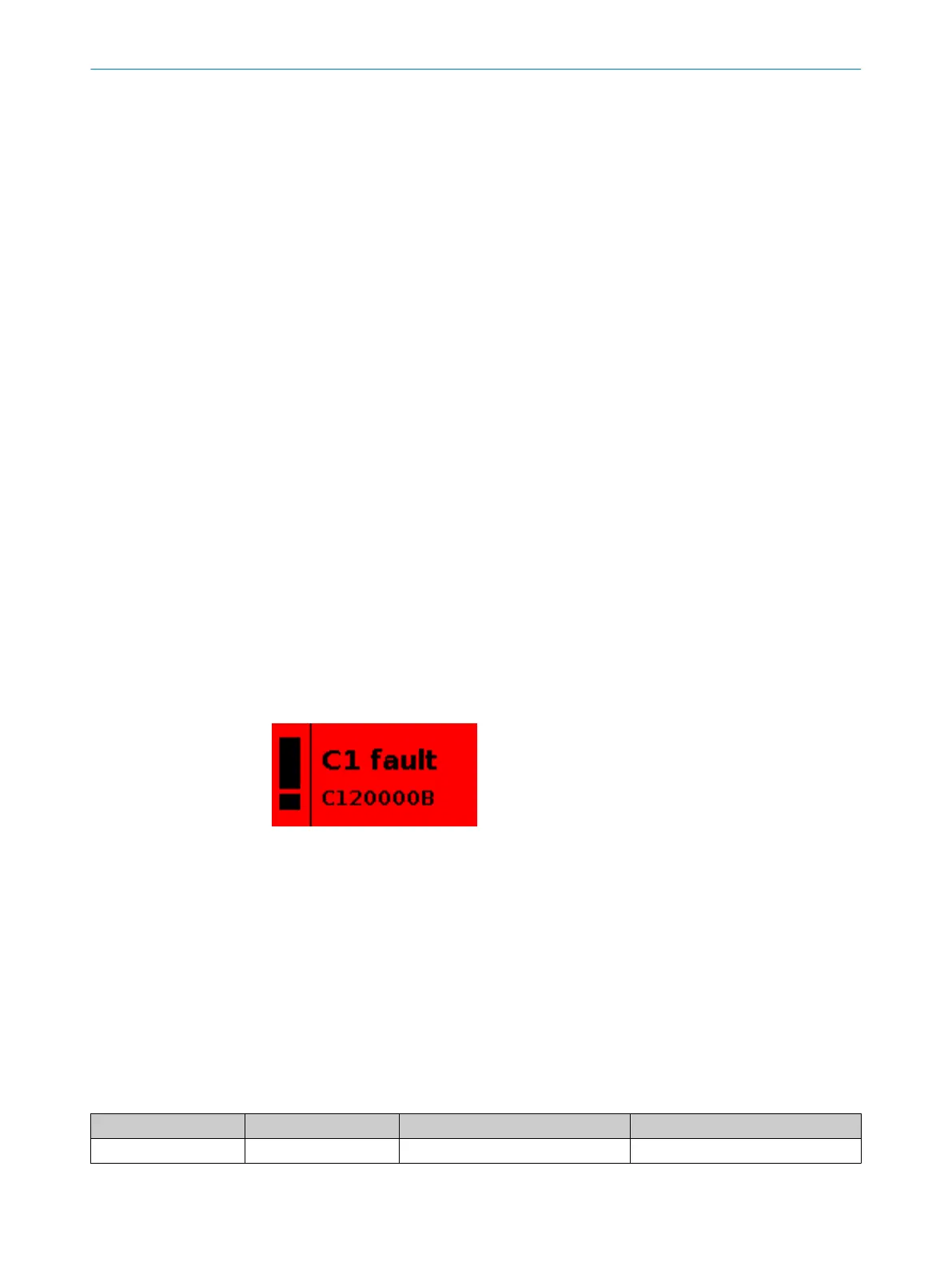

Figure 82: Fault display
•
T
he two-character fault type will help you during troubleshooting.
•
The eight-character fault code in the bottom line helps SICK support during the
detailed fault analysis.
b
By pressing any pushbutton, you will obtain more information about the fault and
for troubleshooting. You can use the arrow buttons to change to further pages with
additional information.
b
You will find an overview of the two-character fault types and what they mean in
the following table.
b
You will find detailed information in Safety Designer’s message history about the
individual faults and information about events not shown by the display.
Table 20: Fault types
Fault type Brief description Cause Troubleshooting
C1 Faulty configuration The configuration is faulty.
b
R
econfigure the device.
12 TROUBLESHOOTING
134
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O 8025870/2020-09-04 | SICK
Subject to change without notice
