SICK microScan3 Core I/O

Status display
T
he display shows current information about the safety laser scanner’s status. The
display switches off after approx. 60 s if all fields are clear and no other notification is
displayed.
b
If the display is switched off, press any pushbutton to activate the display.
b
Press any pushbutton to obtain more details about the displayed status informa‐
tion.
b
If there are a number of pages with detailed information, this is shown in the top
right of the display.
b
Press the arrow buttons to change between a number of pages with detailed
information.

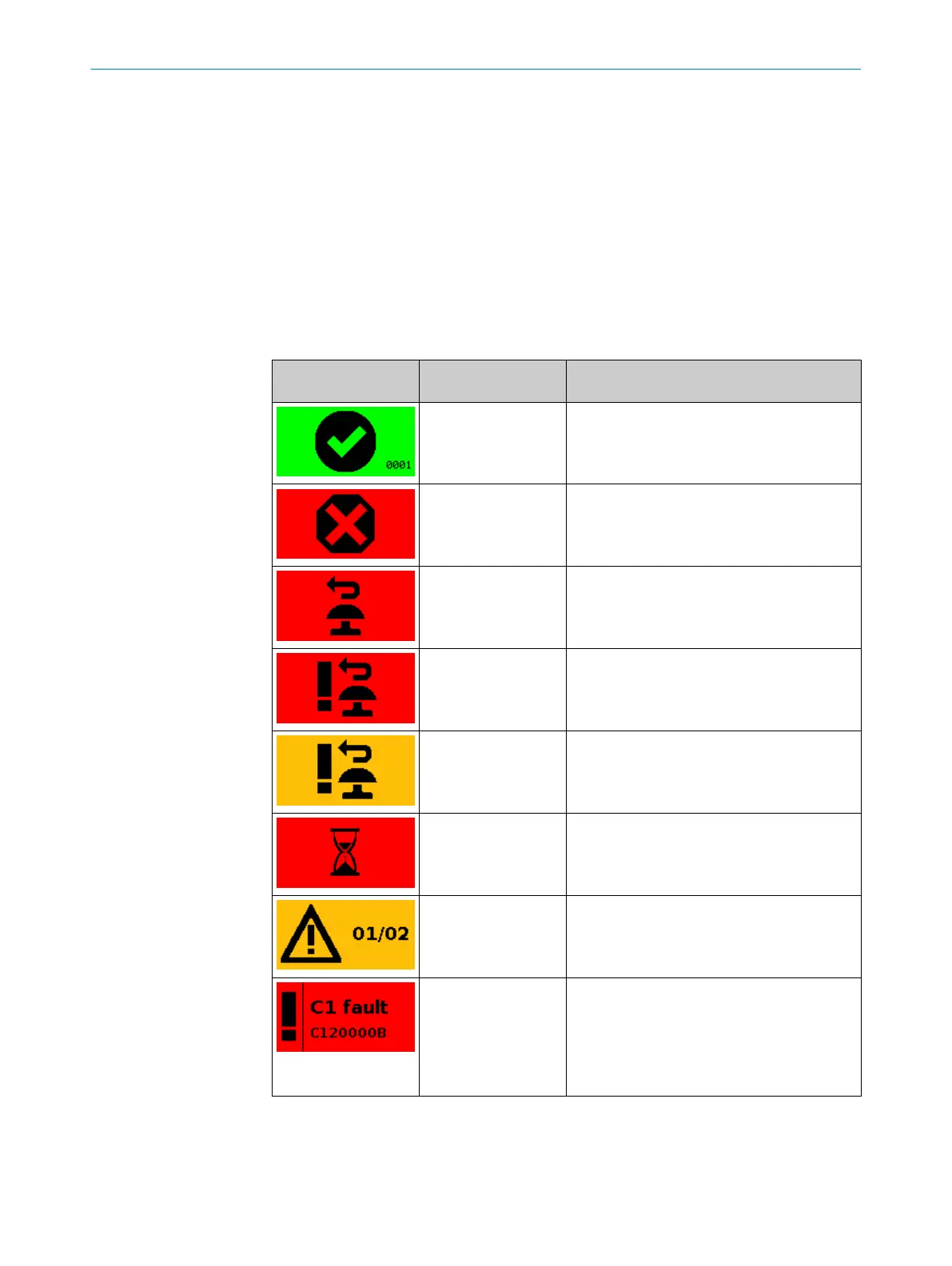

Table 17: Overview of status information
Display Device or configura‐
t
ion
Meaning
All devices and config‐
ur
ations
All fields clear, OSSD pair in ON state.
The number at bottom right indicates the
active monitoring case.
Devices with an OSSD
pair
OSSD pair in OFF state.
Configuration with
r
estart interlock
Protective field is clear, reset can take place.
Configuration with
r
estart interlock
Reset button pressed Safety output in the OFF
state.
Configuration with
r
estart interlock
Reset button pressed Safety output in the ON
state.
Configuration with
aut
omated restart
after a time
Protective field is clear, configured time to
restart expires.
Configuration with at
le
ast one warning field
Warning field interrupted (left column: num‐
ber of interrupted warning fields, right col‐
umn: number of warning fields in the current
monitoring case).
Display flashes
All devices and config‐
urations
Fault. All safety outputs in the OFF state.
Additional information: see "Fault display",
page 134.
OPERATION 10
