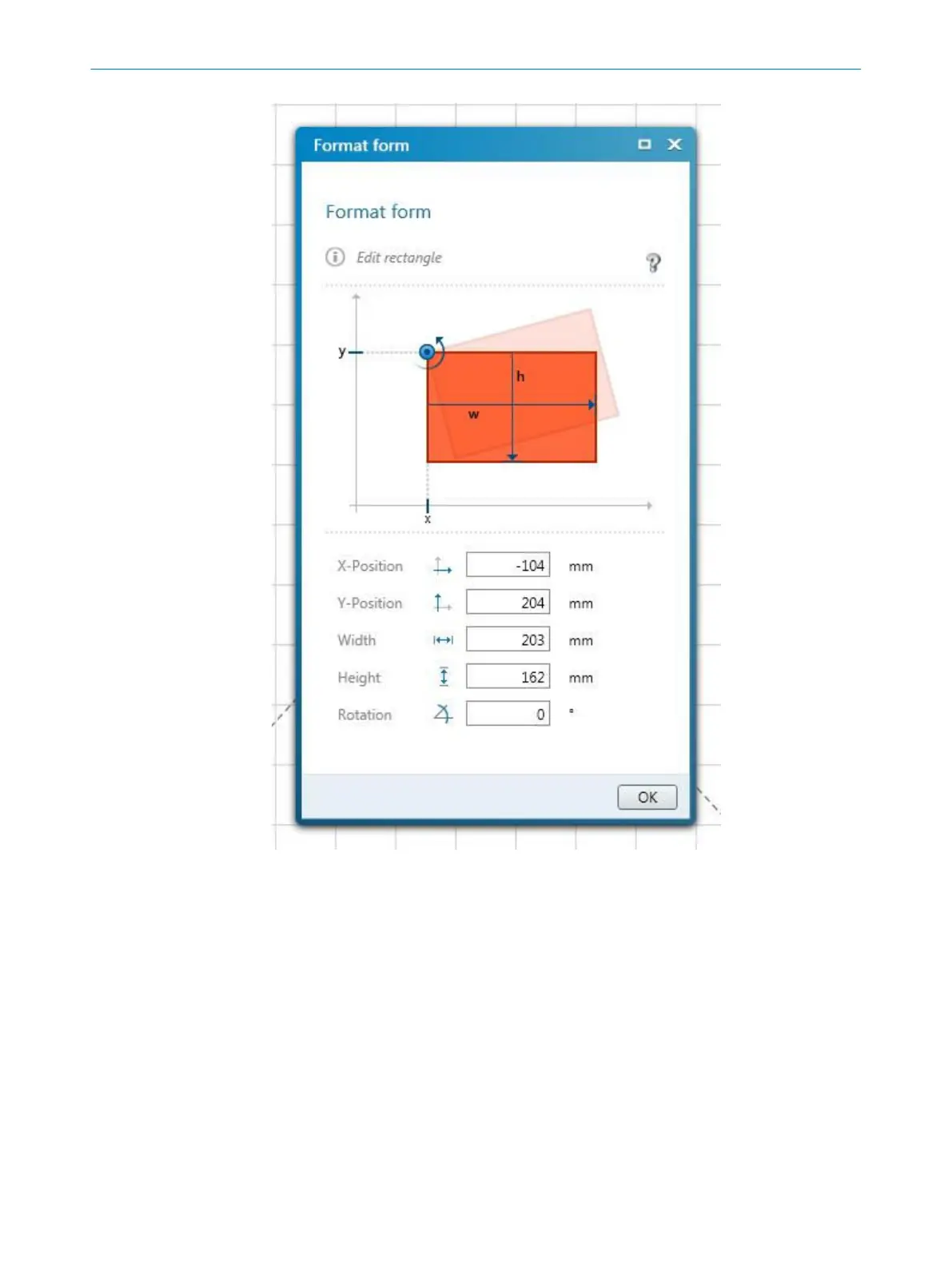

Figure 63: Editing fields using coordinates
T
he reference points for the X and Y values are as follows:
Rectangle: top left corner
Circle: center point
Circle sector: center point
Polygon: each point individually
Contour line: each point individually
8.9.7 Drawing in points that cannot be monitored
The area to be monitored is scanned radially 1. F
or this reason, shadows 3 are
formed by objects in the room 2 (support columns, separator grids, etc.). The safety
laser scanner cannot monitor these areas.
8 C
ONFIGURATION
98
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O 8025870/2020-09-04 | SICK
Subject to change without notice
