SICK TR4 User Manual

Capitolo 9 Istruzioni d’uso
TR4
254 © SICK AG • Industrial Safety Systems • Germania • Tutti i diritti riservati 8014467/YTD7/2016-03-30
Contenuti soggetti a modifiche senza preavviso
Dati tecnici
it

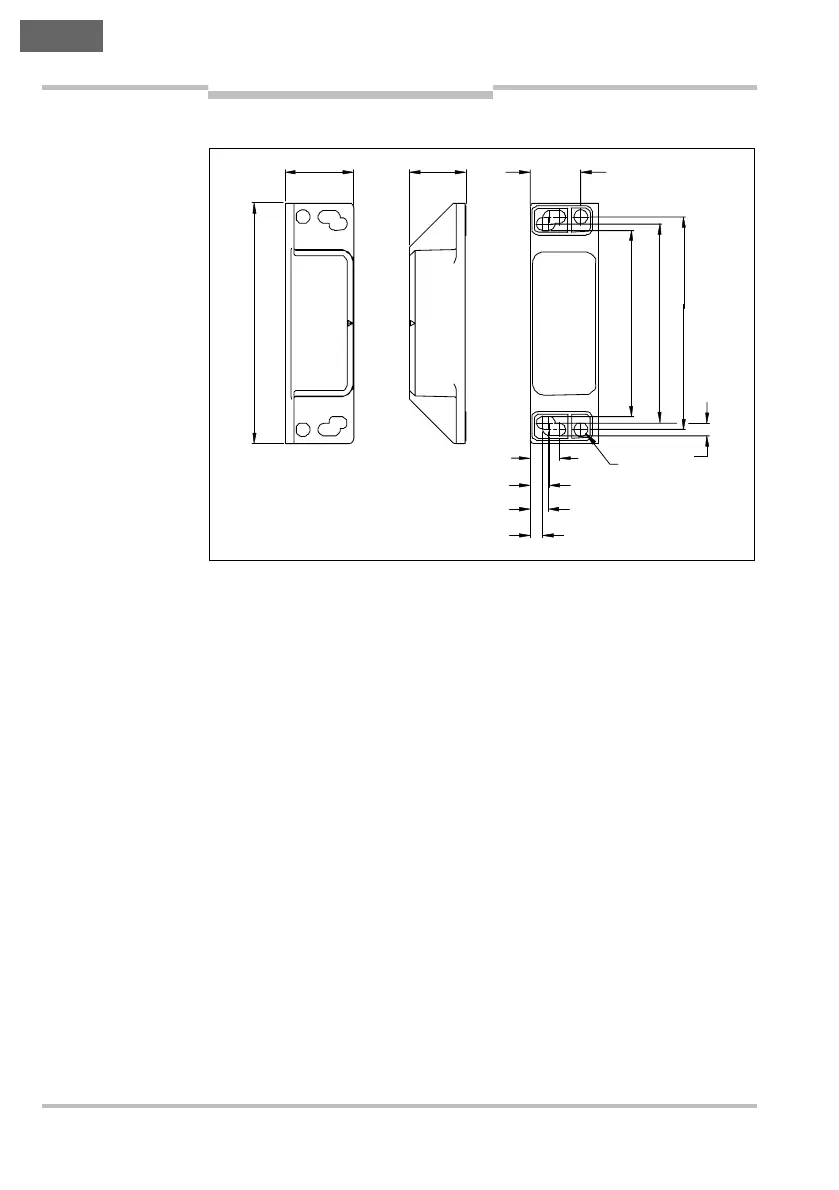

9.3.2 Disegno quotato dell’attuatore TR4 Direct
Fig. 17: disegno
quotato dell’attuatore
TR4 Direct (mm)
24,99 20,65 18,54
88,14
10,66
7,11
6,78
4,57
⊕
5,08
4,57
68,31
72,9
77,98

SICK TR4 Specifications

General

Number of Safe Outputs	2
Output Type	PNP
Protection Rating	IP67
Type	Safety Switch
Housing Material	Plastic
Supply Voltage	24V DC
Connection Type	Cable
Operating Voltage	24 V DC
Operating Temperature	-25 °C ... +70 °C
Actuator Type	Separate actuator (TR4 Direct, TR4 Standard, TR4 Extended)
