Chapter 7 Operating Instructions
TR4
86 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8014467/YTD7/2016-03-30
Subject to change without notice
Application examples
en
7 Application examples

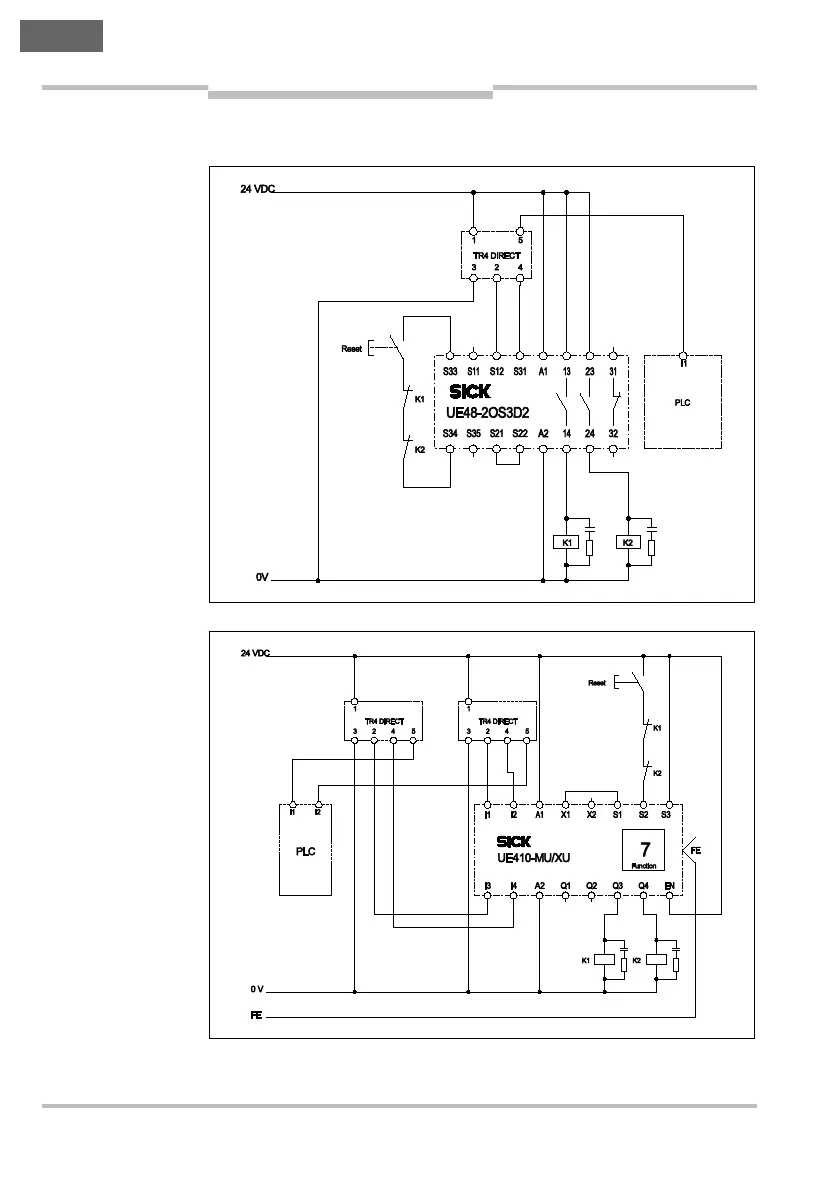

Fig. 10: Application
example with a single
TR4-S..02C safety
switch (with M12
× 5
connection plug)
Fig. 11: Application ex-
ample with two
TR4-S..02C safety
switches (with M12
× 5
connection plug)
connected in parallel

SICK TR4 Specifications

General

Number of Safe Outputs	2
Output Type	PNP
Protection Rating	IP67
Type	Safety Switch
Housing Material	Plastic
Supply Voltage	24V DC
Connection Type	Cable
Operating Voltage	24 V DC
Operating Temperature	-25 °C ... +70 °C
Actuator Type	Separate actuator (TR4 Direct, TR4 Standard, TR4 Extended)
