Operating Instructions Chapter 9
TR4
8014467/YTD7/2016-03-30 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 97
Subject to change without notice
Technical specifications
en

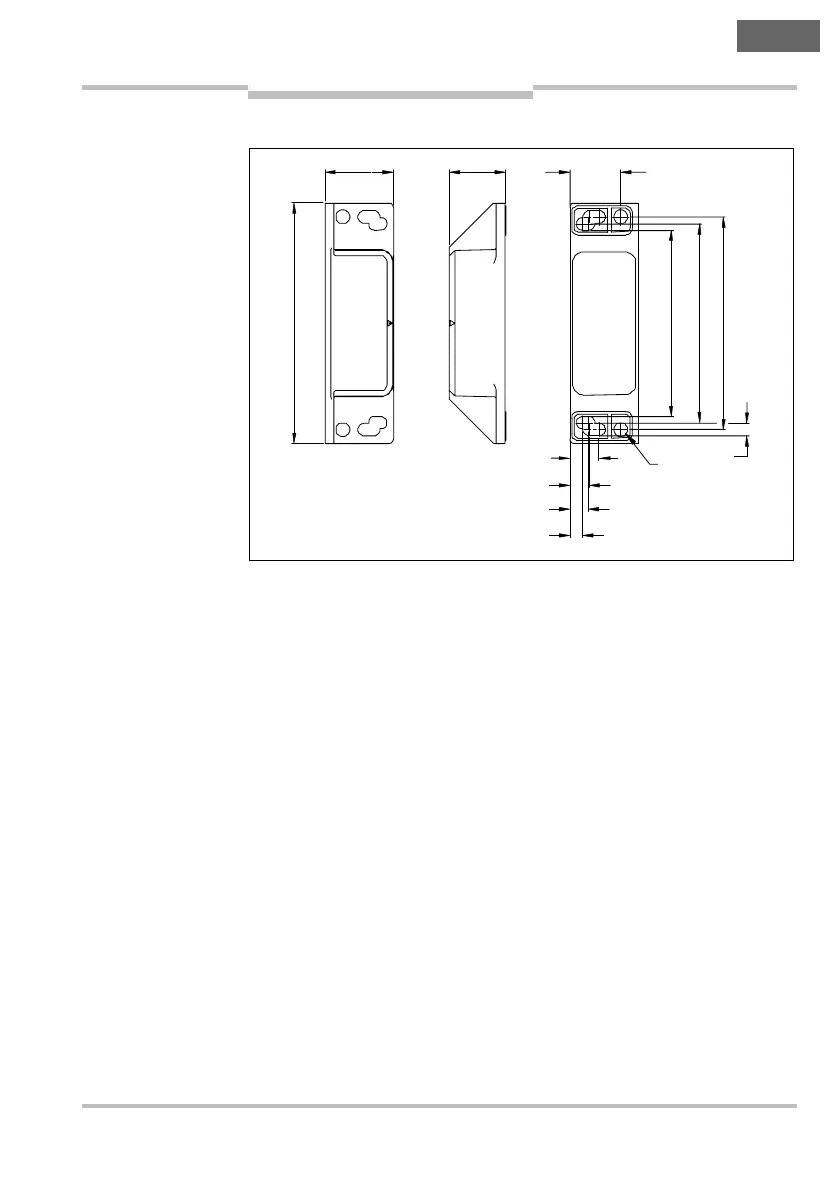

9.3.2 Dimensional drawing TR4 Direct actuator
Fig. 17: Dimensional
drawing TR4 Direct
actuator (mm)
24.99 20.65 18.54
88.14
10.66
7.11
6.78
4.57
⊕
5.08
4.57
68.31
72.9
77.98
