Installing
4.6 Installing Control Unit
Converter with the CU240B-2 and CU240E-2 Control Units
106 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC

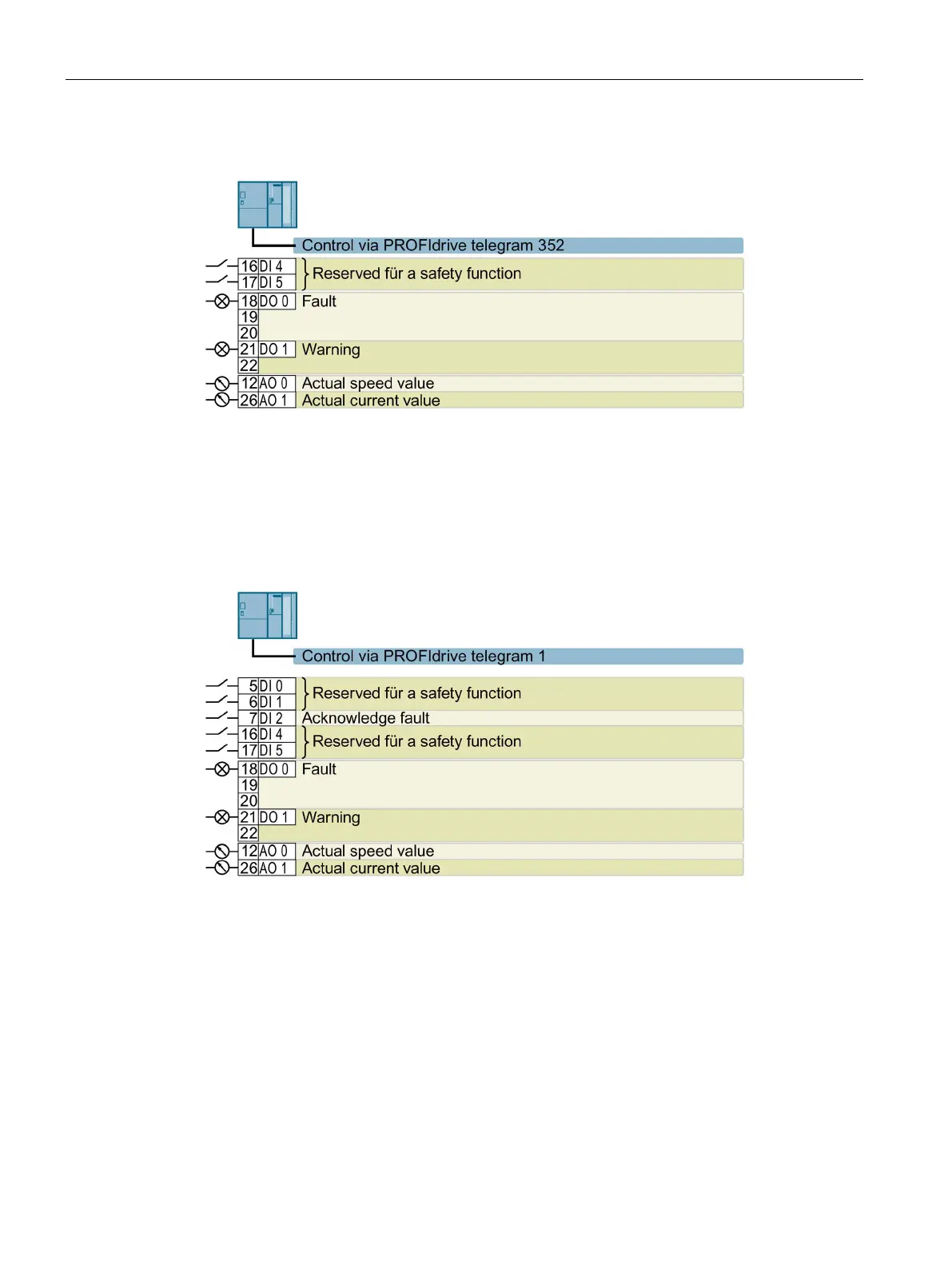

Default setting 5: "Conveyor systems with fieldbus and Basic Safety"
DO 0: p0730, DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1]
DI 4: r0722.4, DI 5: r0722.5
Speed setpoint (main setpoint): p1070[0] = 2050[1]
Designation in the BOP-2: coN Fb S
Default setting 6: "Fieldbus with Extended Safety"
Only with Control Units CU240E-2 F, CU240E-2 DP-F, and CU240E-2 PN-F.
DO 0: p0730, DO 1: p0731
AO 0: p0771[0], AO 1: p0771[1]
DI 0: r0722.0, …, DI 5: r0722.5
Speed setpoint (main setpoint): p1070[0] = 2050[1]
Designation in the BOP-2: Fb SAFE
