4.4 Installing Power Modules
Converter with the CU240B-2 and CU240E-2 Control Units
76 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
4.4.10
Dimensioned drawings, drilling dimensions for the PM340 Power Module
The following dimensioned drawings and drilling patterns are not to scale.

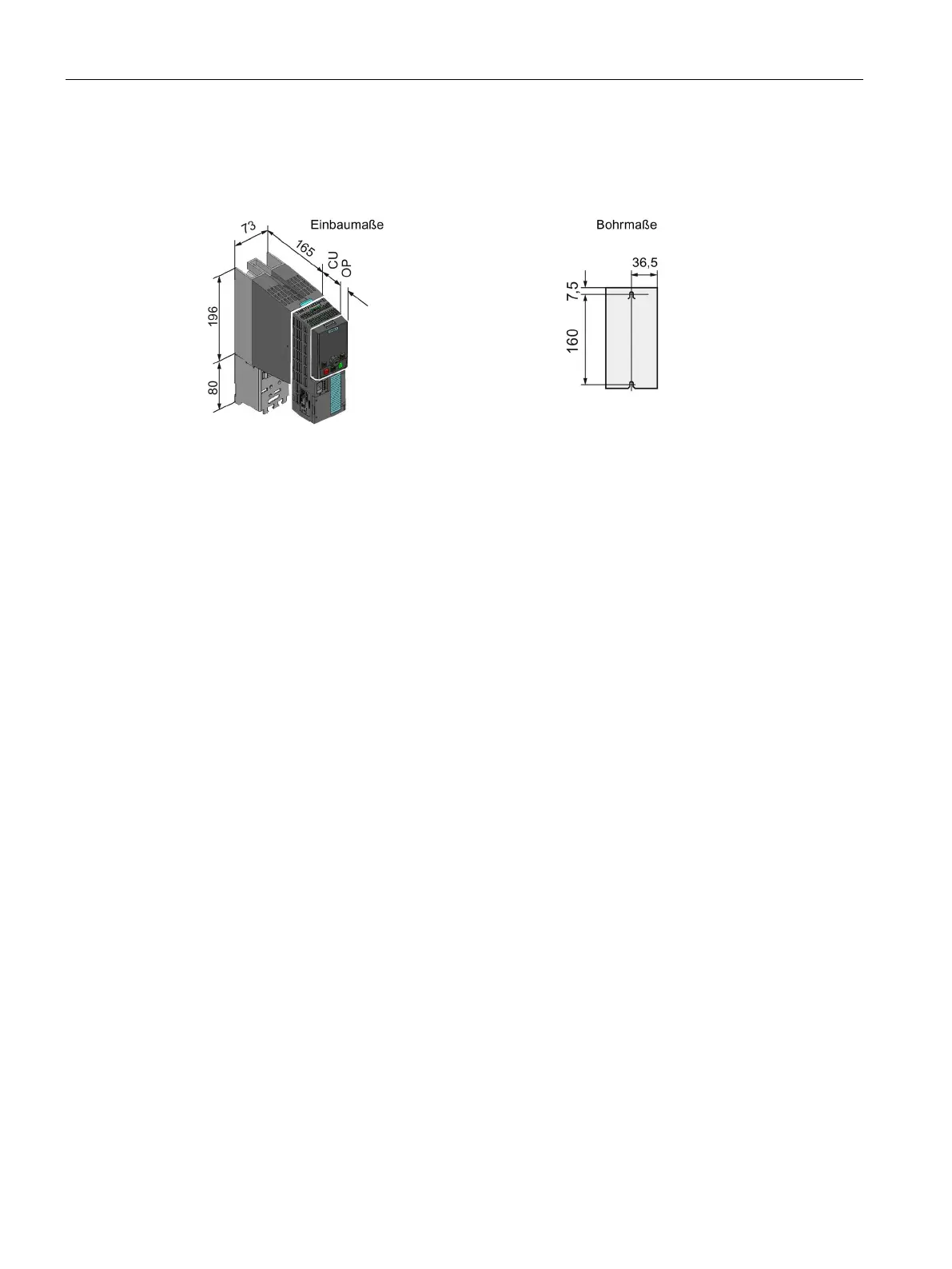

Image 4-1 Mounting dimensions and drilling dimensions (mm)
The Power Modules can be mounted and operated side-by-side. For tolerance reasons, we
recommend a lateral clearance of approx. 1 mm.
Cooling clearances and fastening
● Top cooling clearance: 100 mm
● Bottom cooling clearance: 100 mm
● Front cooling clearance: 65 mm
● For fastening: 2 x M4 / 2.5 Nm
Depth with Control Unit and Operator Panel
•
with Control Unit:
•
With Control Unit and blanking cover / BOP-2:
•
With Control Unit and IOP:
186 mm
197 mm
208 mm
