3.3 Power Module
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
31
3.3
Power Module
Important data on the Power Modules is provided in this section. Further information is
contained in the Hardware Installation Manual of the Power Module.
Overview of the manuals (Page 507)
All power data refers to rated values or to power for operation with low overload (LO).
Which Power Module can I use with the Control Unit?
Table 3- 5 Permitted combinations of Control Unit and Power Module
Control Unit
Power Module
PM340 1AC
PM230
PM240
PM240-2
PM250
PM260
IP20 and push-
through system
IP55
CU240B-2…
---
✓
---
✓
✓
✓
✓
CU240E-2… ✓ ✓ ✓ ✓ ✓ ✓ ✓
3.3.1
Power Modules in degree of protection IP20 and with push-through system

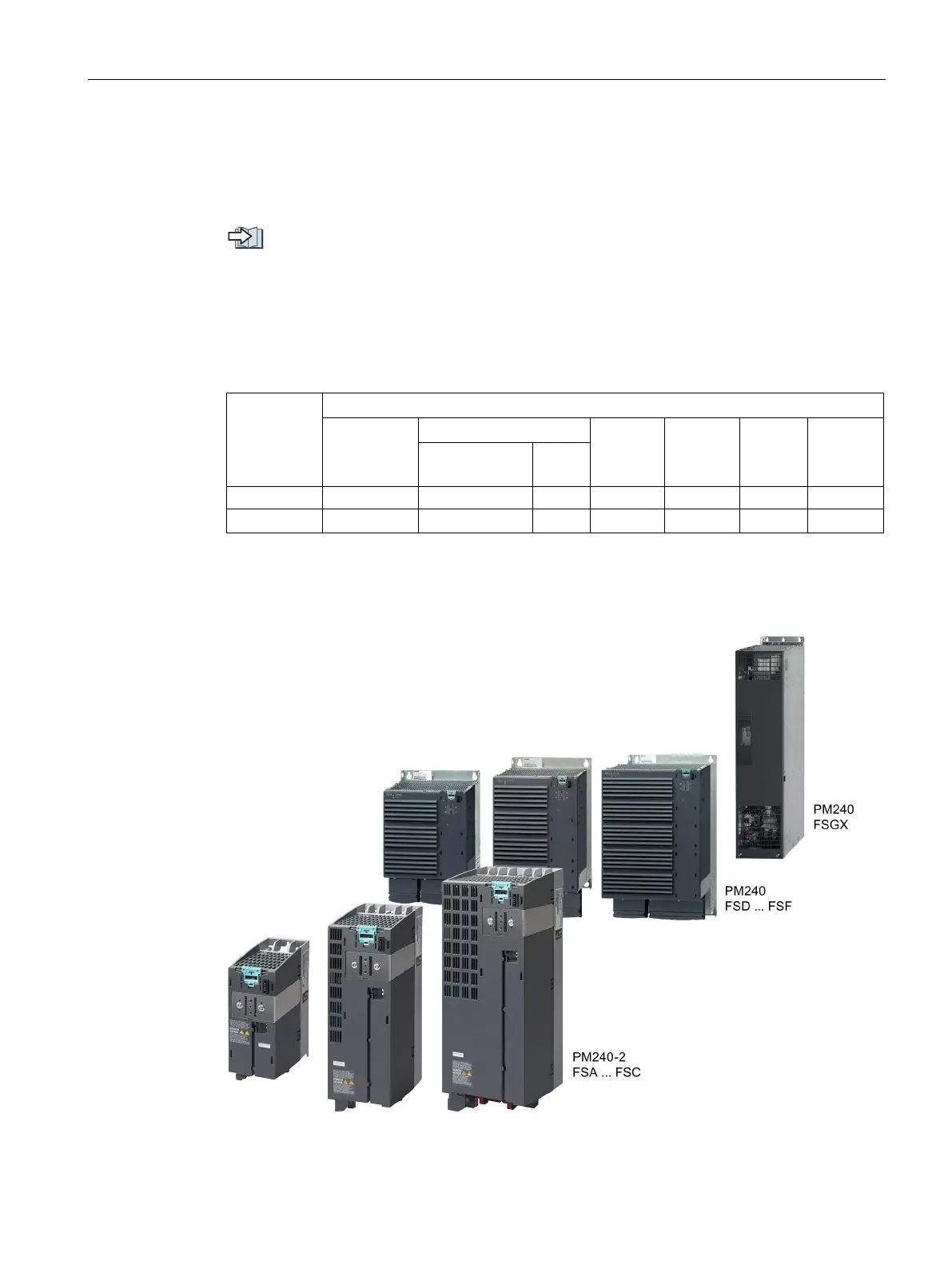

Image 3-2 Examples of Power Modules with degree of protection IP20
