3.2 Overview of Control Units
Converter with the CU240B-2 and CU240E-2 Control Units
30 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
Shield connection kit for the Control Unit
The shield connection kit is an optional component. The shield connection kit comprises the
following components:
● Shield plate
● Elements for optimum shield support and strain relief of the signal and communication
cables
Table 3- 4 Article Nos.
Shield connection kit 2 for CU240B-2 and CU240E-2 Control Units with all
fieldbus interfaces with the exception of PROFINET.
6SL3264-1EA00-0HA0
Shield connection kit 3 for the CU230P-2 and CU240E-2 Control Units with
6SL3264-1EA00-0HB0
Distance connector for operation with a PM230 Power Module IP55
When operating the Control Unit with a PM230 IP55 Power Module, a distance connector is
required between the Control Unit and operator panel (BOP-2 or IOP).

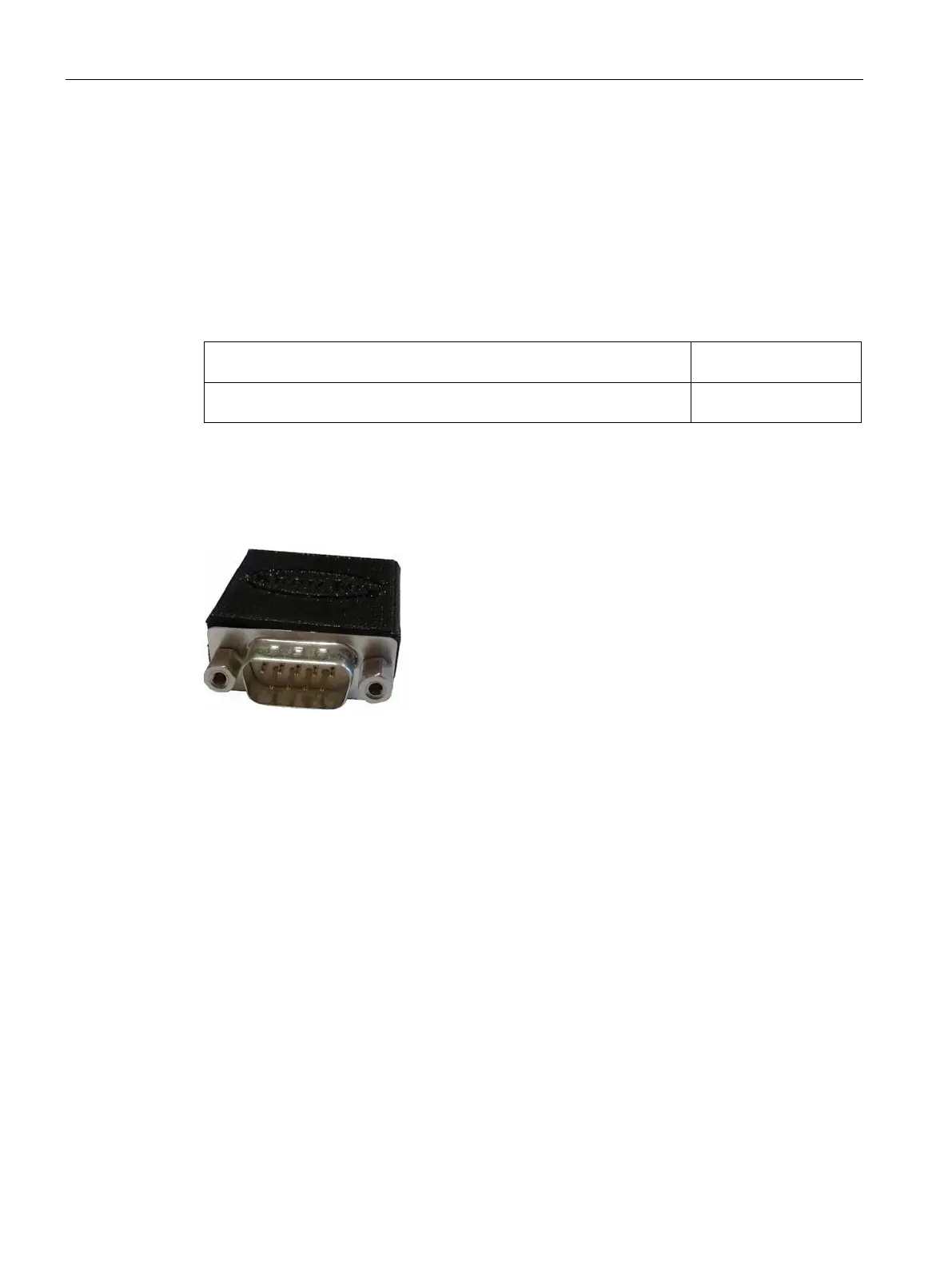

Image 3-1 Distance connector for the connection between a Control Unit and Operator panel
Ordered and supplied from KnorrTec, Article No. 10055500
