Siemens CU240B-2 - Handling the BOP 2 Operator Panel

Appendix
A.3 Handling the BOP 2 operator panel
Converter with the CU240B-2 and CU240E-2 Control Units
488 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
A.3
Handling the BOP 2 operator panel
1)
Status display once the power supply for the inverter has been switched on.

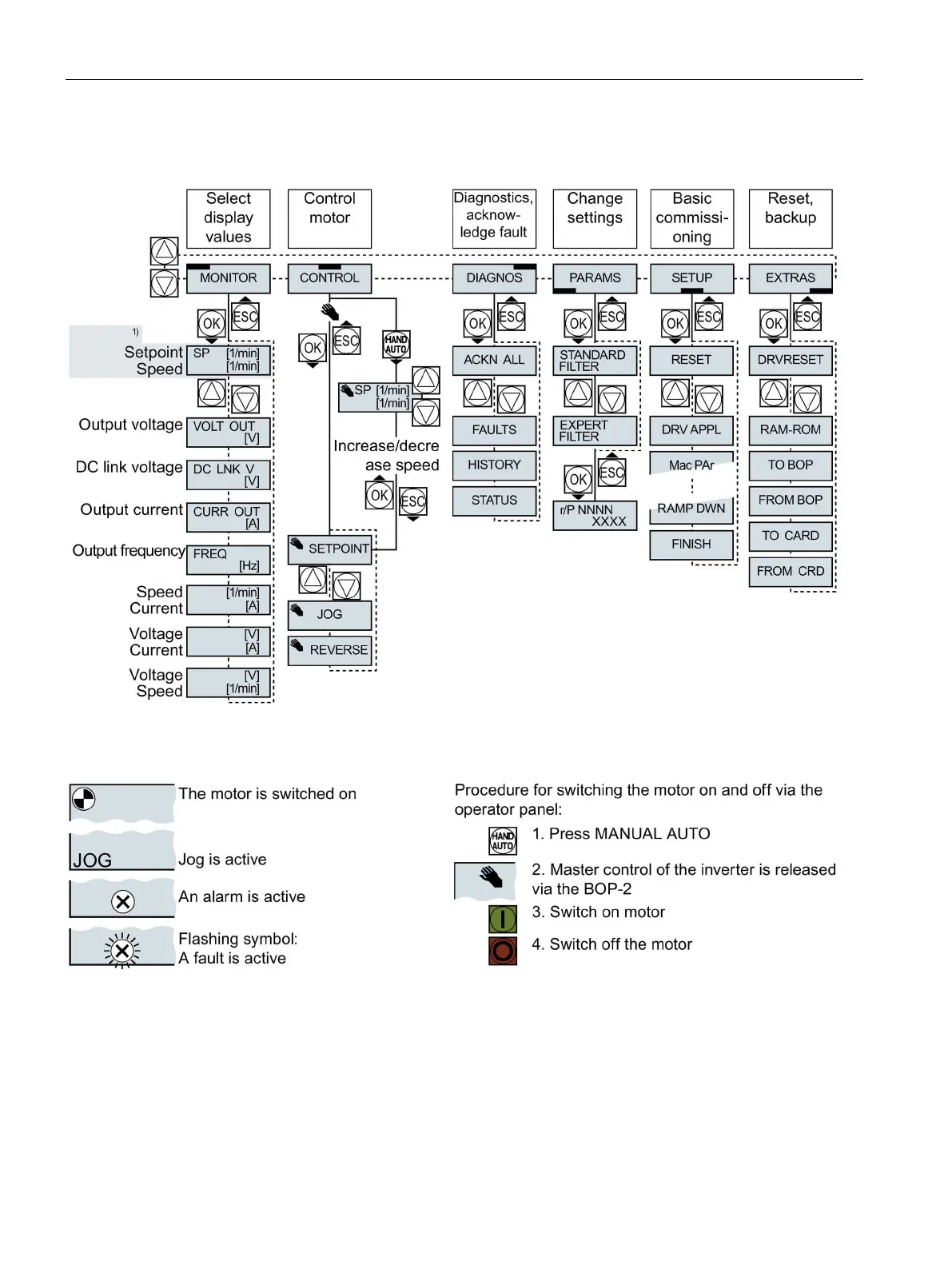

Image A-1 Menu of the BOP-2
Image A-2 Other keys and symbols of the BOP-2
