Description
3.4 Components for the Power Modules
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
45
3.4.6
Braking resistor
The braking resistor allows loads with a high moment of inertia to be quickly braked.
The Power Module controls the braking resistor via its integrated braking module.

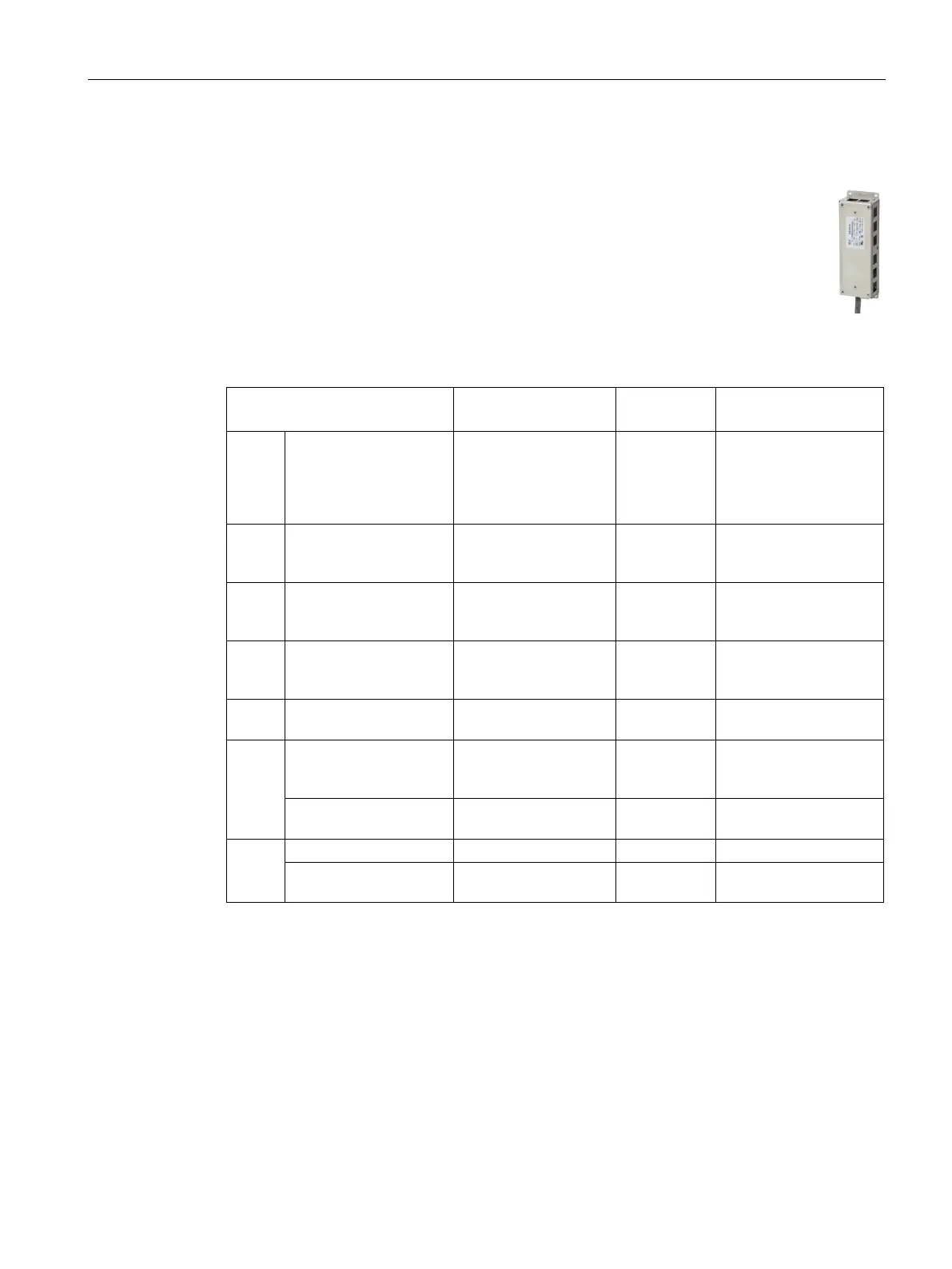

Adjace
nt, as example, a braking resistor for PM240 and PM340 Power Modules,
frame size FSA, which can be mounted below the device.
Braking resistors for PM240
Power Modules
Power
Braking Mod-
ule
Braking resistor
FSA 6SL3224-0BE13-7UA0,
6SL3224-0BE15-5UA0,
6SL3224-0BE17-5UA0,
6SL3224-0BE21-1UA0,
6SL3224-0BE21-5UA0
0.37 kW … 1.5 kW --- 6SE6400-4BD11-0AA0
FSB 6SL3224-0BE22-2☐A0,
6SL3224-0BE23-0☐A0,
6SL3224-0BE24-0☐A0
2.2 kW … 4.0 kW --- 6SL3201-0BE12-0AA0
FSC 6SL3224-0BE25-5☐A0,
6SL3224-0BE27-5☐A0
6SL3224-0BE31-1☐A0
7.5 kW … 15.0 kW --- 6SE6400-4BD16-5CA0
FSD 6SL3224-0BE31-5☐A0,
6SL3224-0BE31-8☐A0,
6SL3224-0BE32-2☐A0
18.5 kW … 30 kW --- 6SE6400-4BD21-2DA0
FSE 6SL3224-0BE33-0☐A0,
6SL3224-0BE33-7☐A0
37 kW … 45 kW --- 6SE6400-4BD22-2EA1
FSF 6SL3224-0BE34-5☐A0,
6SL3224-0BE35-5☐A0,
6SL3224-0BE37-5☐A0
55 kW … 90 kW --- 6SE6400-4BD24-0FA0
6SL3224-0BE38-8UA0,
6SL3224-0BE41-1UA0
110 kW … 132 kW --- 6SE6400-4BD26-0FA0
GX
6SL3224-0XE41-3UA0
160 kW
---
6SL300-1BE31-3AA0
6SL3224-0XE41-6UA0,
6SL3224-0XE42-0UA0
200 kW … 250 kW 6SL3300-
1AE32-5AA0
6SL3000-1BE32-5AA0
