Siemens CU240B-2 - Adapt the Default Setting of the Terminal Strip

Advanced commissioning
6.2 Inverter control
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
173
6.2.2
Adapt the default setting of the terminal strip
This chapter describes how you adapt the function of individual digital and analog inputs and
outputs of the inverter.
1)
Not available with Control Units CU240B-2 and CU240B-2 DP

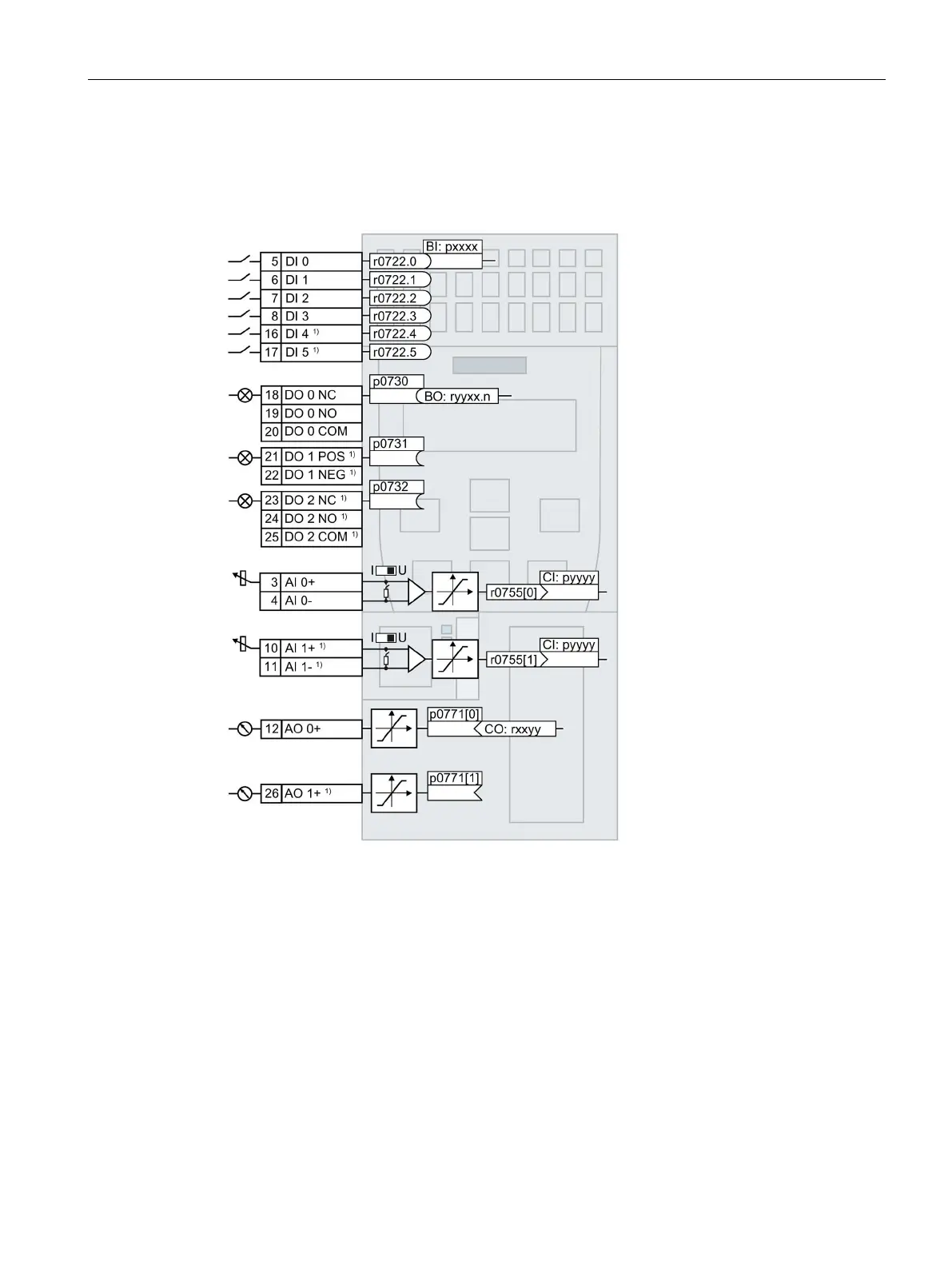

Image 6-3 Internal interconnection of the inputs and outputs
