Installing
4.5 Connecting the line supply, motor, and inverter components
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
89
4.5.4.5
Install and connect the Brake Relay - PM240-2 Power Module
Installing the Brake Relay
●
FSA … FSC
: Install the Brake Relay next to the Power Module.
●
FSD … FSF
: Install the Brake Relay at the rear of the lower shield plate. Attach the Brake
Relay before you install the shield plate.
Connecting the Brake Relay to the inverter

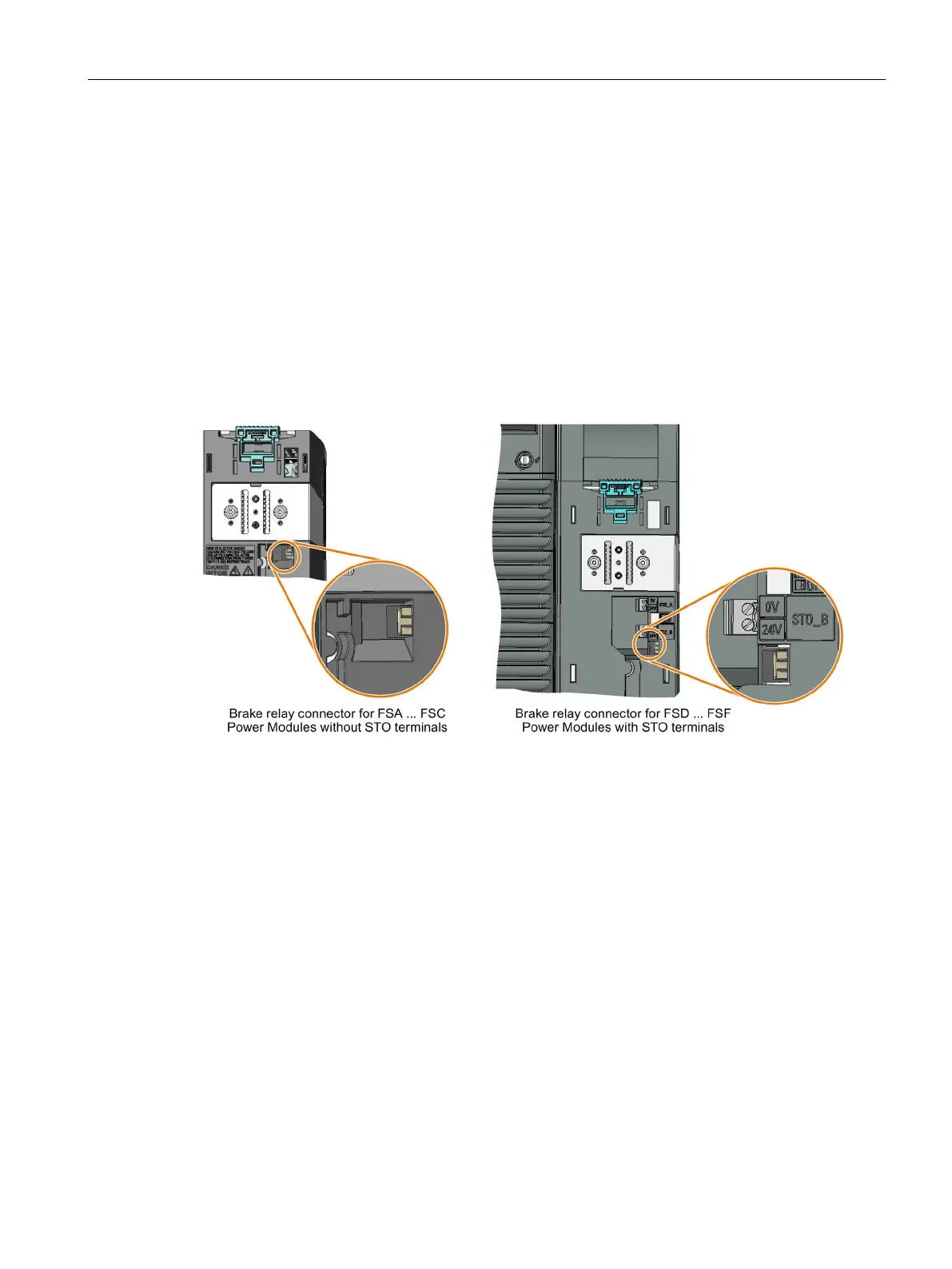

The connector for the Brake Relay is located at the front of the Power Module. Lay the cable
harness for the Brake Relay in the cable routing.
