Siemens CU240B-2 - Expert

Commissioning
5.3 Quick commissioning using the BOP-2 operator panel
Converter with the CU240B-2 and CU240E-2 Control Units
Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
141
5.3.6
Expert

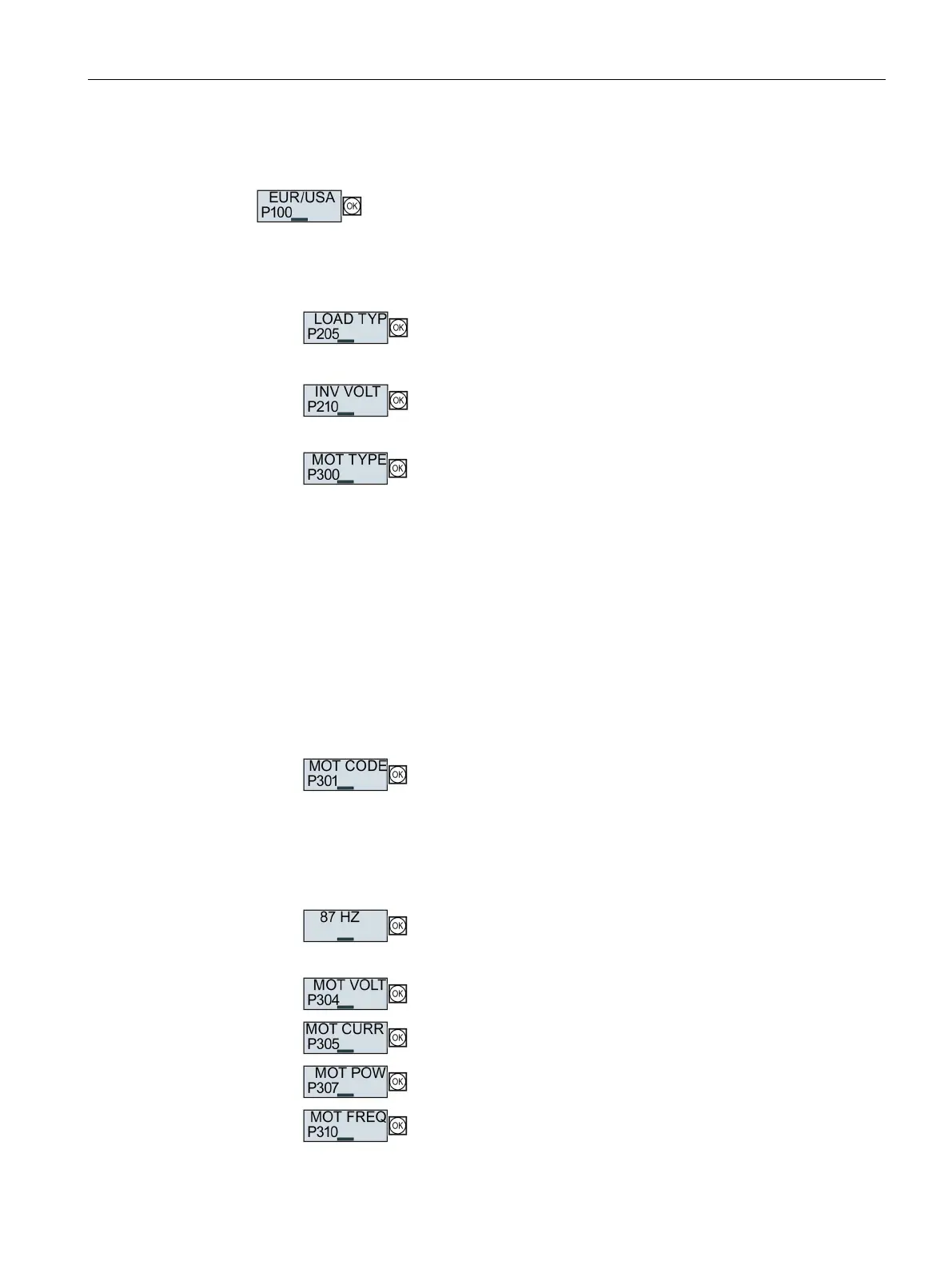

6.
Motor standard
KW
/ 50HZ
IEC
HP / 60HZ
NEMA
KW / 60HZ
IEC 60 Hz
7.
Overload capability and supply voltage of the inverter
7.1.
Overload capability
HIGH OVL
Load cycle with "High Overload"
LOW OVL
Load cycle with "Low Overload"
7.2.
Inverter supply voltage
8.
Enter the motor data:
8.1.
Motor type
Depending on the particular inverter
, it is possible that the
BOP-2 does not list all of the following motor types.
INDUCT
Third-party induction motor
SYNC
Third-party synchronous motor
RELUCT
Third
-party reluctance motor
1L… IND
1LE1, 1LG6, 1LA7, 1LA9 induction motors
1L
E1 IND
100
1LE1☐9 with motor code on the rating plate
1PC1 IND
1PC1 with motor code on the rating plate
1PH8 IND
Induction motor
1FP1
Reluctance motor
1F… SYN
1FG1, 1FK7 synchronous motor, without encoder
8.2.
If you have selected a motor type > 100, then you must enter
the motor code:
With the correct motor code, the inverter assigns the motor
data the following values.
If you do not know the mot
or code, then you must set the mo-
tor code
= 0, and enter the motor data from p0304 and on-
wards from the rating plate.
8.3.
87 Hz motor operation
The BOP
-2 only displays this step if you previously selected
IEC as the motor standard (EUR/USA, P100 = KW 50HZ).
8.4.
Rated voltage
8.5.
Rated current
8.6.
Rated power
8.7.
Rated frequency
