Commissioning
5.3 Quick commissioning using the BOP-2 operator panel
Converter with the CU240B-2 and CU240E-2 Control Units
140 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
11.

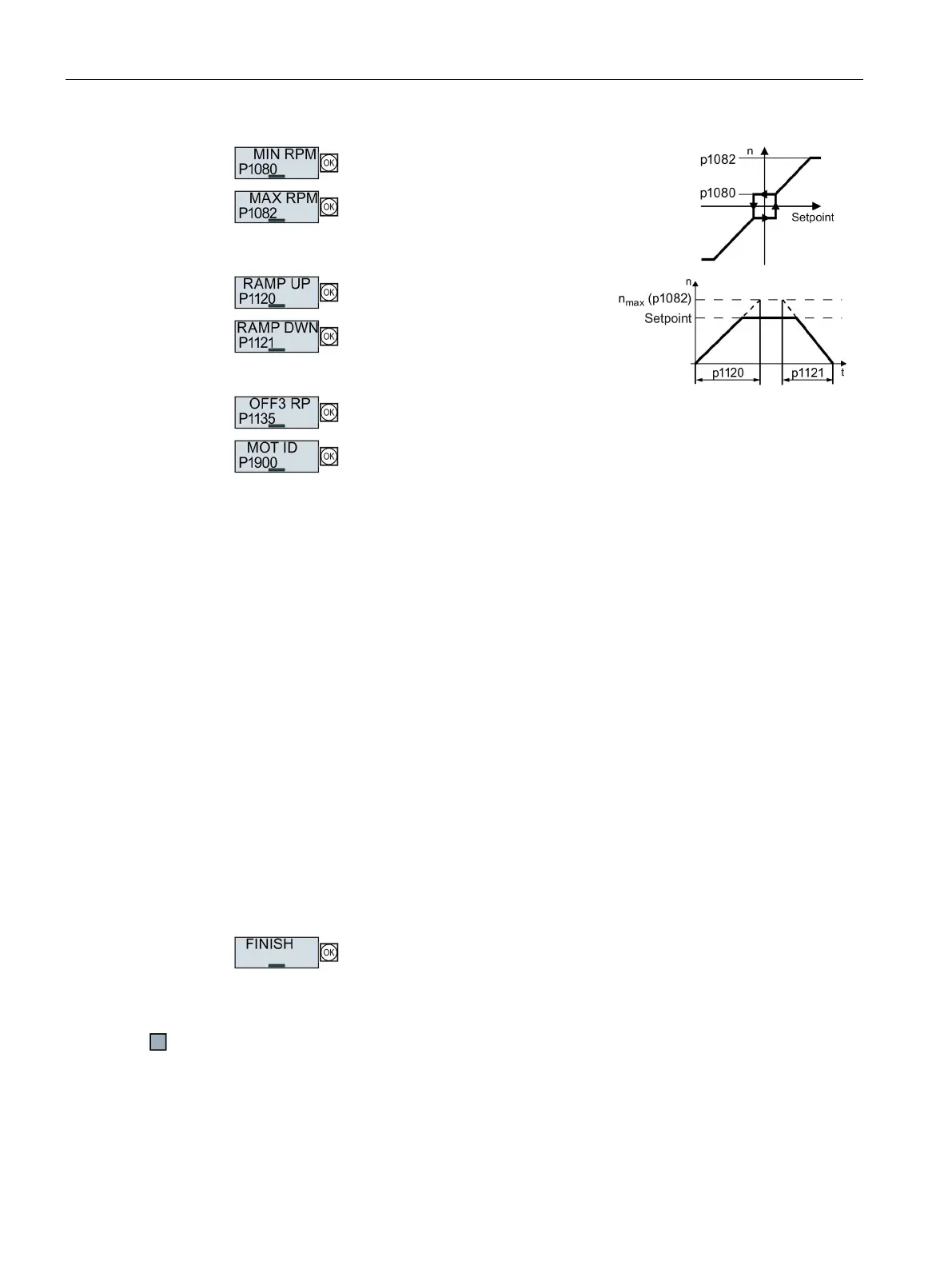

Minimum and maximum motor speed
12.
13.
Motor ramp-up time
14.
Motor ramp-down time
15.
Ramp-down time for the OFF3 command
16.
Motor data identification
Select the method which the inverter uses to measure the data of the
connected motor:
OFF
Motor data is not measured.
STIL ROT
Recommended setting: Measure the motor data at stan
d-
still
and with the motor rotating.
The inverter switches off the motor after the motor data
identification has been completed.
STILL
Measure the motor data at standstill.
The inverter switches off the motor after the motor data
identification has been complet
ed.
Select this setting if the motor cannot rotate freely
– for
example, if the traversing range is mechanically limited.
ROT
Measure the motor data while it is rotating.
The inverter switches off the motor after the motor data
identification has been completed.
ST RT OP
Setting the same as STIL ROT.
The motor accelerates to the currently set setpoint after
the motor data identification.
STILL OP
Setting the same as STILL.
After the motor data identification, the motor accelerates
to the currently set setpoint.
17.
Complete quick commissioning:
17.1.
Switch over the display using an arrow key: nO → YES
17.2.
Press the OK key.
You have completed quick commissioning.
