4.4 Installing Power Modules
Converter with the CU240B-2 and CU240E-2 Control Units
66 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
4.4.4

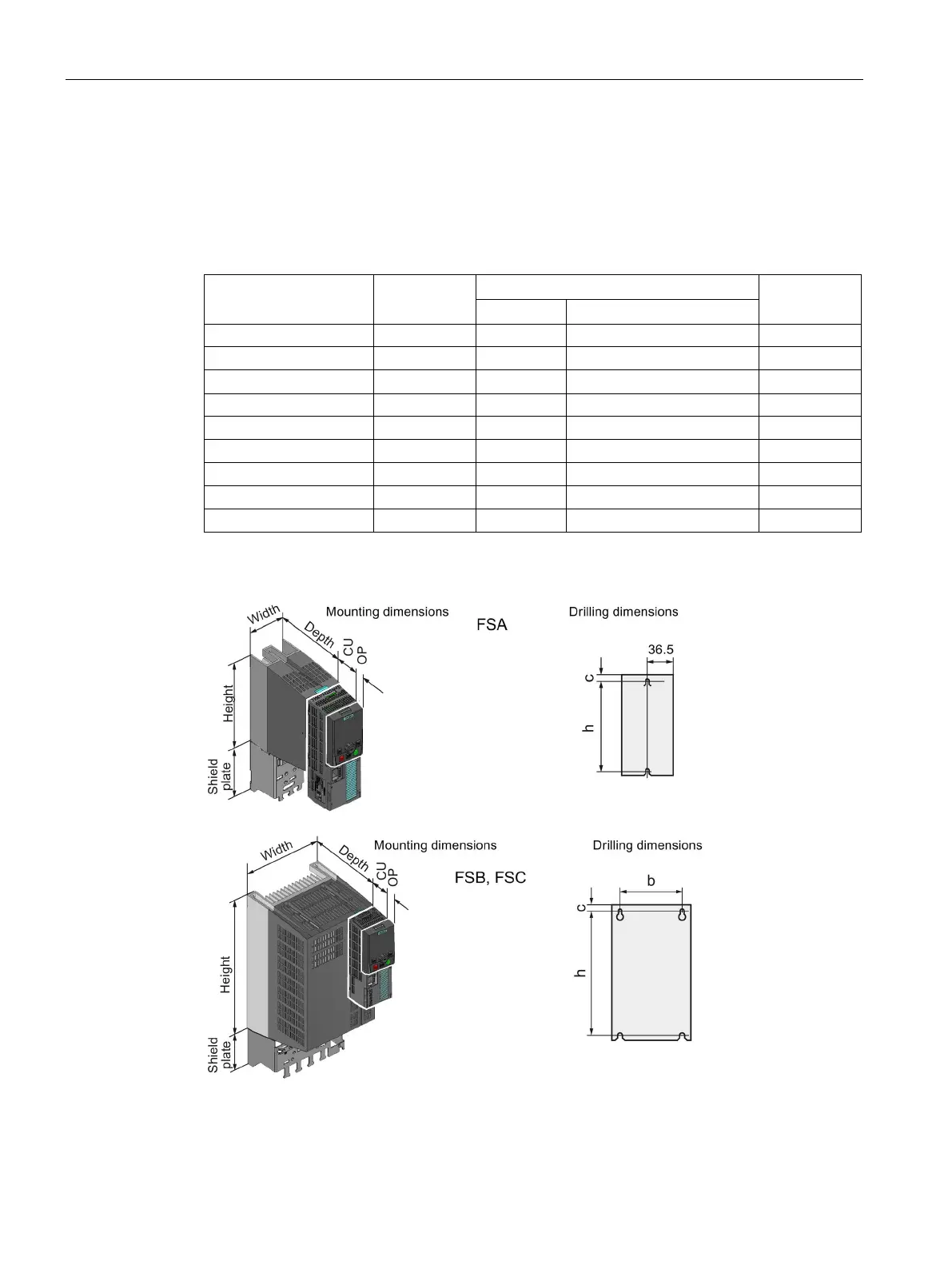

Dimensioned drawings, drilling dimensions for the PM240 Power Module, FSA
… FSF
The following dimensioned drawings and drilling patterns are not to scale.
Table 4- 5 Mounting dimensions
Frame size
Width
1)
(mm)
Height (mm)
Depth (mm)
with shield connection kit
FSA
73
173
271
145
FSB without/with filter
153
270
360
165
FSC without/with filter 189 334 432 185
FSD without filter
275
419
542
204
FSD with filter
275
512
635
204
FSE without filter
275
499
622
204
FSE with filter
275
635
758
204
FSF without filter
350
634
792
316
FSF with filter
350
934
1092
316
1)
The Power Modules can be mounted and operated side-by-side. For tolerance reasons, we rec-
ommend a lateral clearance of approx. 1 mm.
