3.4 Components for the Power Modules
Converter with the CU240B-2 and CU240E-2 Control Units
36 Operating Instructions, 01/2016, FW V4.7 SP6, A5E34259001B AC
3.4.2
Line filter
With a line filter, the inverter can
achieve a higher radio interference
class. An e
xternal filter is not required
for inverters with integrated line filter.
Adjace

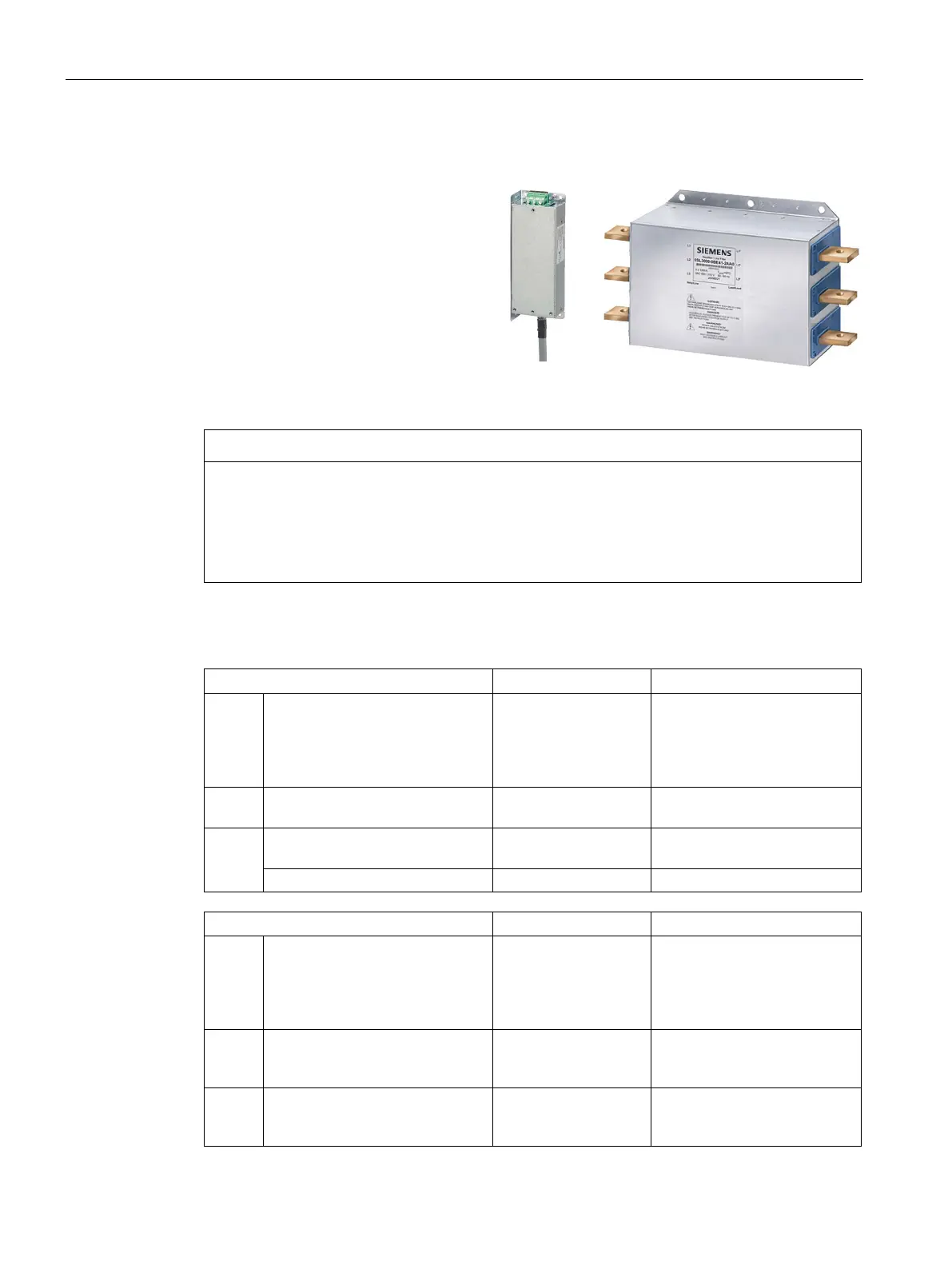

nt examples of line filters.
The line filter corresponds to Class A
or B according to EN55011: 2009.
for PM240 FSA
for PM240 GX
NOTICE
The line filter is damaged when operated on inadmissible line supplies
The line filter is only suitable for operation on TN or TT line systems with a grounded
neutral point. The line filter is damaged if operated on all other line supplies.
• For inverters equipped with line filter, only connect to TN or TT line systems with a
grounded neutral point.
External line filters for PM240
Power Module
Power
Line filter, class A
FSA 6SL3224-0BE13-7UA0,
6SL3224-0BE15-5UA0,
6SL3224-0BE17-5UA0,
6SL3224-0BE21-1UA0,
6SL3224-0BE21-5UA0
0.37 kW … 1.5 kW 6SE6400-2FA00-6AD0
FSF 6SL3224-0BE38-8UA0,
6SL3224-0BE41-1UA0
110 kW … 132 kW 6SL3203-0BE32-5AA0
GX 6SL3224-0XE41-3UA0,
6SL3224-0XE41-6UA0
160 kW … 200 kW 6SL3000-0BE34-4AA0
6SL3224-0XE42-0UA0
250 kW
6SL3000-0BE36-0AA0
Power Module
Power
Line filter, class B
FSA 6SL3224-0BE13-7UA0,
6SL3224-0BE15-5UA0,
6SL3224-0BE17-5UA0,
6SL3224-0BE21-1UA0,
6SL3224-0BE21-5UA0
0.37 kW … 1.5 kW 6SE6400-2FB00-6AD0
FSB 6SL3224-0BE22-2AA0,
6SL3224-0BE23-0AA0,
6SL3224-0BE24-0AA0
2.2 kW … 4.0 kW 6SL3203-0BE21-6SA0
FSC 6SL3224-0BE25-5UA0,
6SL3224-0BE27-5UA0,
6SL3224-0BE31-1UA0
7.5 kW … 15.0 kW 6SL3203-0BD23-8SA0
