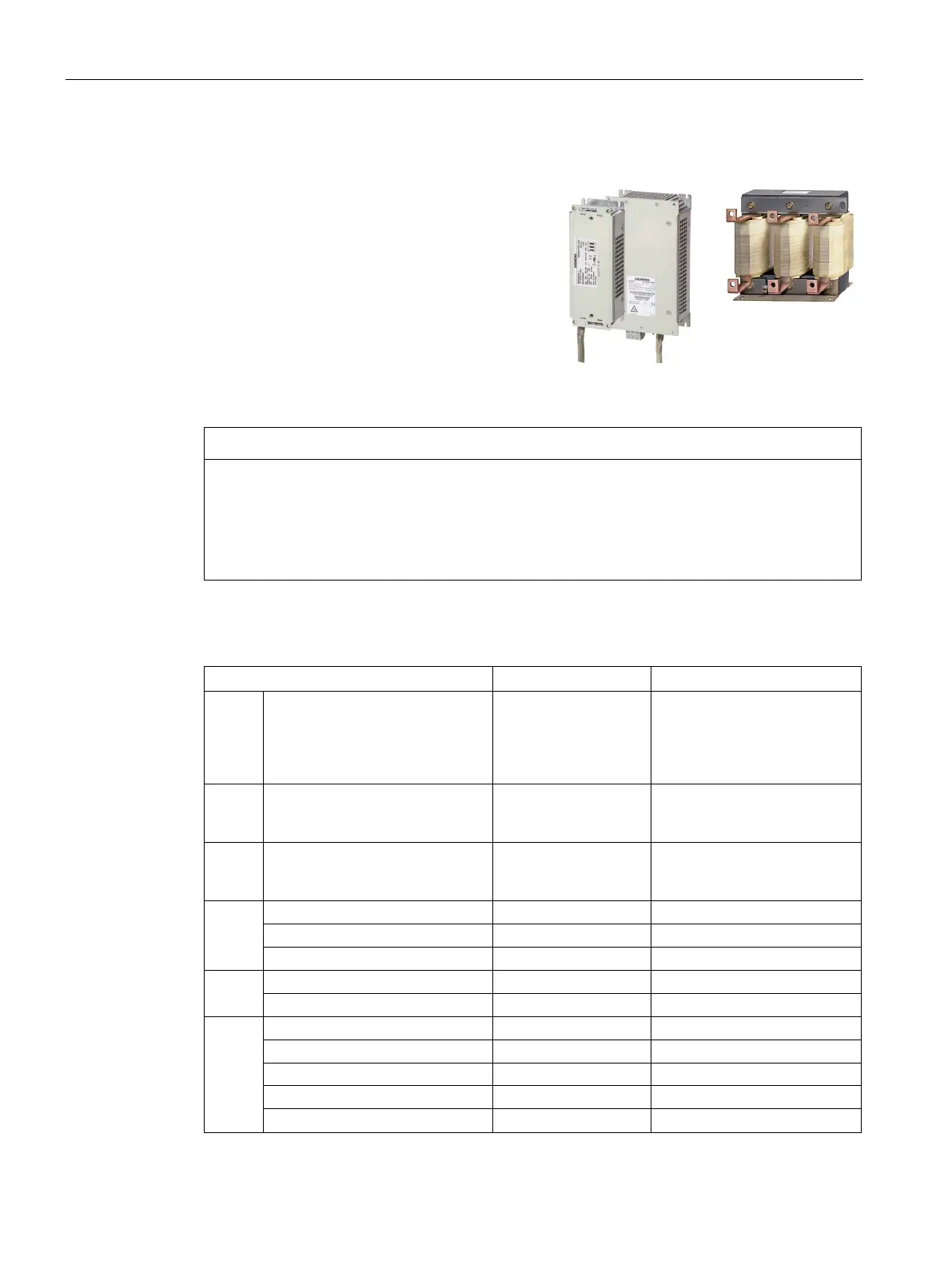

Output reactor
Output reactors reduce the voltage stress on
the motor wind
ings and the load placed on the
inverter as a result of capacitive recharging
currents in the cables. An output reactor is
required for shielded motor cables longer than
50
m or unshielded motor cables longer than
100
m.
for PM240 FSA, FSB
for GX
NOTICE
The output reactor is damaged if the inverter pulse frequency is too high
The output reactors are designed for pulse frequencies of 4 kHz. The output reactor can
overheat if the inverter is operated with pulse frequencies > 4 KHz. Excessively high
temperatures damage the output reactor.
• Operate the inverter with an output reactor with a maximum pulse frequency of 4 kHz.
Output reactors for PM240 Power Module
Power Module
Power
Output reactor
FSA 6SL3224-0BE13-7UA0,
6SL3224-0BE15-5UA0,
6SL3224-0BE17-5UA0,
6SL3224-0BE21-1UA0,
6SL3224-0BE21-5UA0
0.37 kW … 1.5 kW 6SE6400-3TC00-4AD2
FSB 6SL3224-0BE22-2☐A0,
6SL3224-0BE23-0☐A0,
6SL3224-0BE24-0☐A0
2.2 kW … 4.0 kW 6SL3202-0AE21-0CA0
FSC 6SL3224-0BE25-5☐A0,
6SL3224-0BE27-5☐A0,
6SL3224-0BE31-1☐A0
7.5 kW … 15.0 kW 6SL3202-0AJ23-2CA0
FSD
6SL3224-0BE31-5☐A0
18.5 kW
6SE6400-3TC05-4DD0
6SL3224-0BE31-8☐A0
22 kW
6SE6400-3TC03-8DD0
6SL3224-0BE32-2☐A0
30 kW
6SE6400-3TC05-4DD0
FSE
6SL3224-0BE33-0☐A0
37 kW
6SE6400-3TC08-0ED0
6SL3224-0BE33-7☐A0
45 kW
6SE6400-3TC07-5ED0
FSF
6SL3224-0BE34-5☐A0
55 kW
6SE6400-3TC14-5FD0
6SL3224-0BE35-5☐A0
75 kW
6SE6400-3TC15-4FD0
6SL3224-0BE37-5☐A0
90 kW
6SE6400-3TC14-5FD0
6SL3224-0BE38-8UA0
110 kW
6SL3000-2BE32-1AA0
6SL3224-0BE41-1UA0 132 kW 6SL3000-2BE32-6AA0
