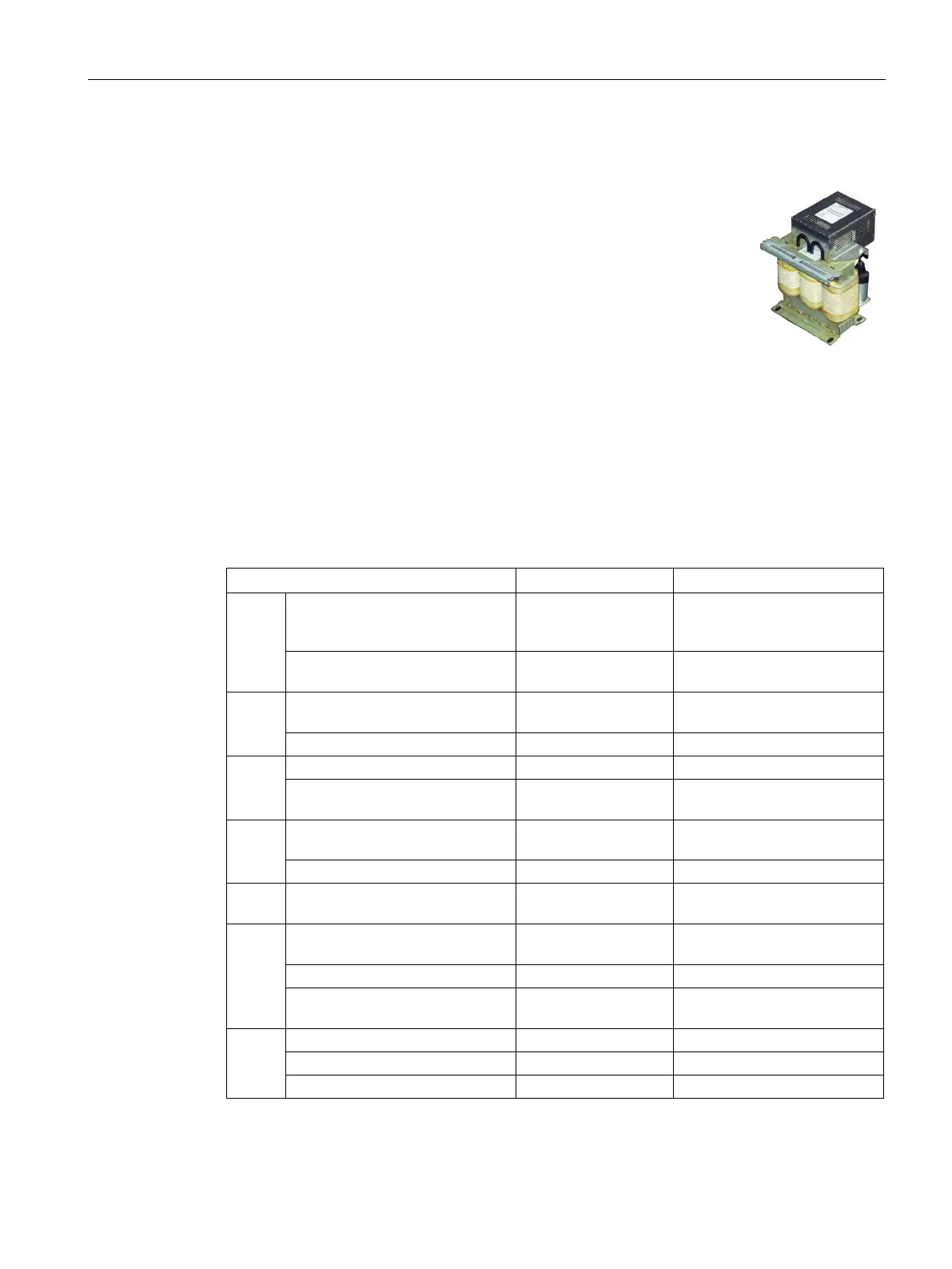

3.4.5
Sine-wave filter
The sine
-wave filter at the inverter output limits the voltage rate-of-
rise and
the pe
ak voltages at the motor winding. The maximum permissible length
of motor feeder cables is increased to 300 m.
The following applies when using a sine
-wave filter:
•
Operation is only permissible with pulse frequencies of 4 kHz up to
8 kHz.
For Power Modules with a power rating starting at 110 kW and higher
(as stamped on the type plates), only 4 kHz is permissible.
•
The inverter power is reduced by 5%.
•
The maximum output frequency of the inverter is 150 Hz at 380 V to
480 V.
•
Operation and commissioning may only be performed with the motor
connected, as the sine-wave filter is not no-load proof.
•
An output reactor is superfluous.
for FSF
Sine-wave filter for PM240 Power Module
Power Module
Power
Sine-wave filter
FSA 6SL3224-0BE13-7UA0,
6SL3224-0BE15-5UA0,
6SL3224-0BE17-5UA0
0.37 kW … 0.75 kW 6SL3202-0AE20-3SA0
6SL3224-0BE21-1UA0,
6SL3224-0BE21-5UA0
1.1 kW … 1.5 kW 6SL3202-0AE20-6SA0
FSB 6SL3224-0BE22-2☐A0,
6SL3224-0BE23-0☐A0
2.2 kW … 3.0 kW 6SL3202-0AE21-1SA0
6SL3224-0BE24-0☐A0
4.0 kW
6SL3202-0AE21-4SA0
FSC
6SL3224-0BE25-5☐A0
7.5 kW
6SL3202-0AE22-0SA0
6SL3224-0BE27-5☐A0,
6SL3224-0BE31-1☐A0
11.0 kW … 15.0 kW 6SL3202-0AE23-3SA0
FSD 6SL3224-0BE31-5☐A0,
6SL3224-0BE31-8☐A0
18.5 kW … 22 kW 6SL3202-0AE24-6SA0
6SL3224-0BE32-2☐A0
30 kW
6SL3202-0AE26-2SA0
FSE 6SL3224-0BE33-0☐A0,
6SL3224-0BE33-7☐A0
37 kW … 45 kW 6SL3202-0AE28-8SA0
FSF 6SL3224-0BE34-5☐A0,
6SL3224-0BE35-5☐A0
55 kW … 75 kW 6SL3202-0AE31-5SA0
6SL3224-0BE37-5☐A0
90 kW
6SL3202-0AE31-8SA0
6SL3224-0BE38-8UA0,
6SL3224-0BE41-1UA0
110 kW … 132 kW 6SL3000-2CE32-3AA0
GX
6SL3224-0XE41-3UA0
160 kW
6SL3000-2CE32-8AA0
6SL3224-0XE41-6UA0
200 kW
6SL3000-2CE33-3AA0
6SL3224-0XE42-0UA0
250 kW
6SL3000-2CE34-1AA0
